SKF Multilog On-line System IMx-8/IMx-8Plus
User Manual
Revision E
55 (63)

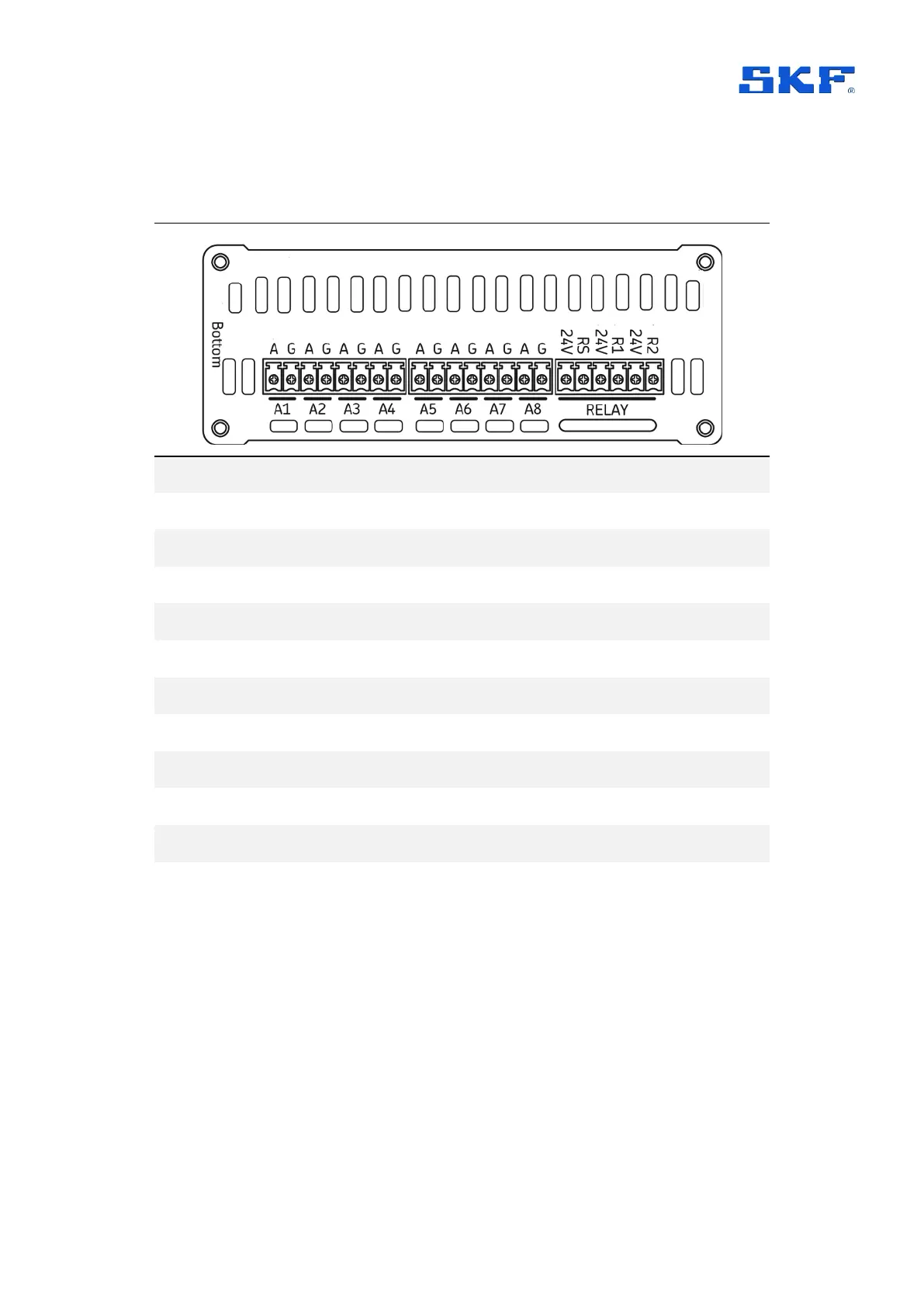

3.3.4 IMx-8Plus bottom end cap
Table 9 IMx-8Plus bottom end cap connections
Terminal
Description
A1–A8
Analogue inputs 1 to 8 (Analogue, Ground terminals for each)
Connect signal to A
R2
Relay 2, relay driver output (open collector)
24V
24 V DC power for relay coil
R1
Relay 1, relay driver output (open collector)
24V
24 V DC power for relay coil
RS
System relay, relay driver output (open collector)
24V
24 V DC power for relay coil
Demountable terminal connectors
For the bottom connectors, two 8-way (A1 to A8) and one 6-way are provided.
