SKF IMx-8 User Manual

PRODUCT SPECIFICATIONS
Enclosure and cabinet mechanical drawings
56 (63)
SKF Multilog On-line System IMx-8/IMx-8Plus
User Manual
Revision E
3.4 Enclosure and cabinet mechanical drawings
3.4.1 IMx-8/IMx-8Plus enclosure
The immediate IP30 enclosure for the SKF Multilog IMx-8/IMx-8Plus is shown in
Figure 19, below.

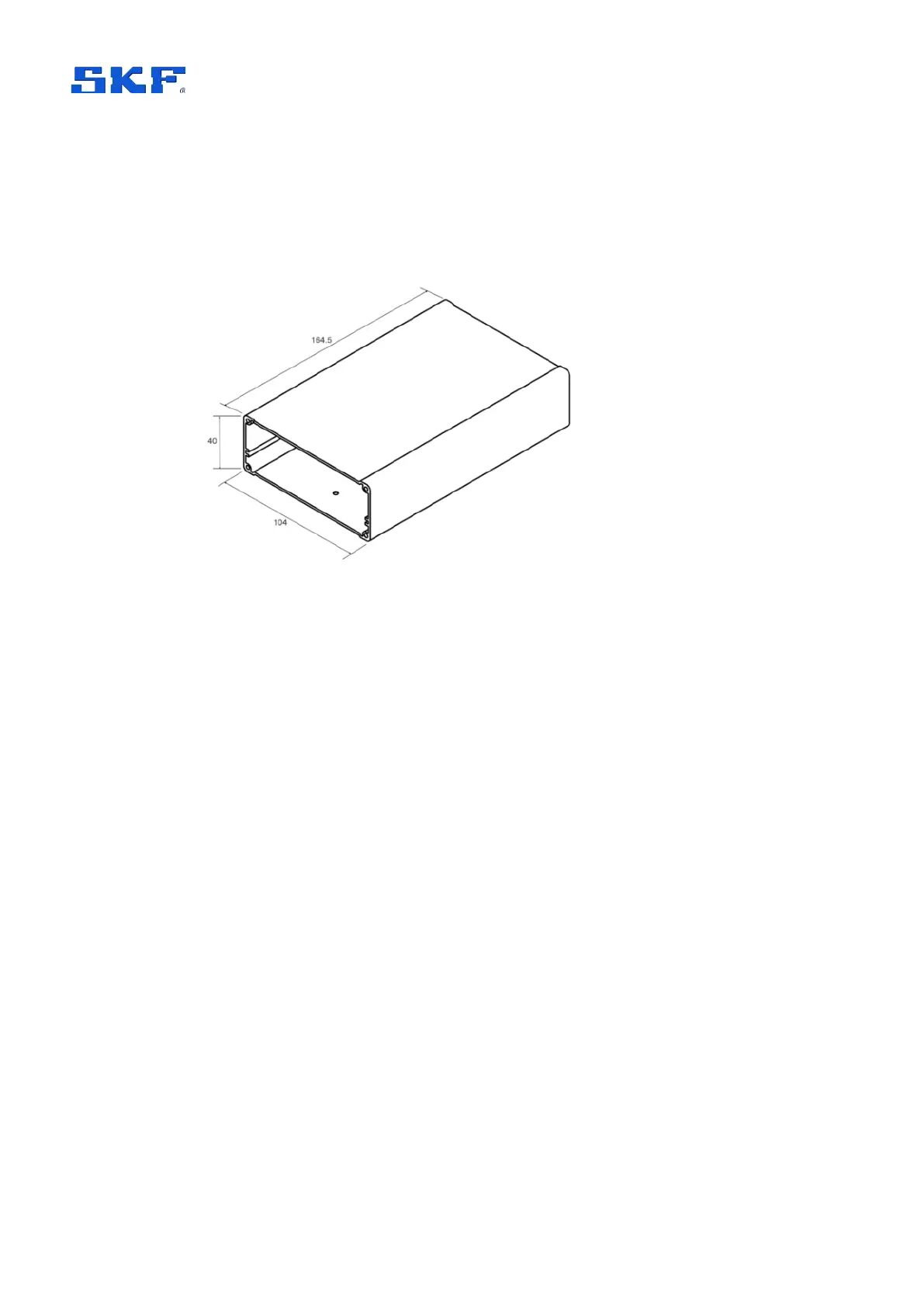

Figure 19 IMx enclosure drawing
Note that the height dimension shown here (164.5 mm), excludes end caps and their
mounting screws, as also connectors, dongle, etc. Refer also to product
specifications, section 3.2.1, for overall dimensions and further notes.
3.4.2 IMx-8/IMx-8Plus IP65 cabinets (optional)
The SKF Multilog IMx-8/IMx-8Plus is usually housed within an IP65 cabinet. Two
basic versions of these optional, painted steel cabinets are available from SKF:
CMON 4150: with a pre-drilled gland area
CMON 4151: without a pre-drilled gland area
In the pre-drilled cabinet, the lower, short, wall is predrilled for 17 glands: refer to
Figure 20 for the drilling pattern/arrangement. One entry for a M25 x 1.5 mm gland
(shown as drawing item 14/15) and sixteen entries for M12 x 1.5 glands (typified by
drawing item 16/17), are provided. All (17) cable entries are supplied with blind plugs
fitted, only remove those that will be actively used for cabling and cable glands.
