SKF Multilog On-line System IMx-8/IMx-8Plus
User Manual
Revision E
59 (63)
Note that ‘iX Developer’ software is required to build the HMI screens and configure
the display. This software is not included in CMON 4146 and if not already available
should be separately purchased from Beijer Electronics.
3.6 Mobile data / Wi-Fi antenna (optional)
For the IMx-8Plus, an optional antenna is available under SKF part number
CMON 4142. This is the same type of mobile data / Wi-Fi antenna used in the SKF
Multilog IMx-Rail and the images shown in the figure below, show its usage there.

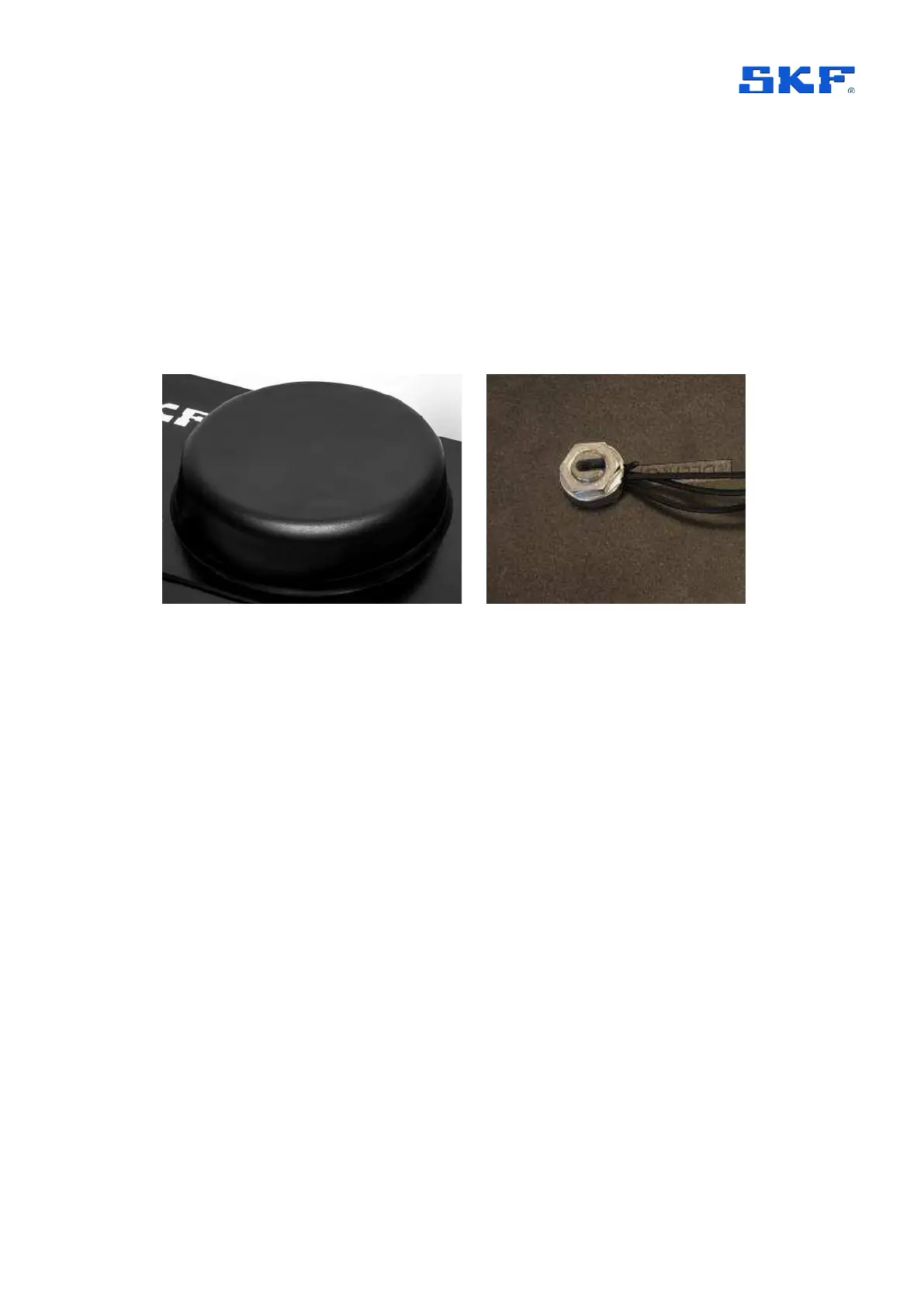

a) External view
b) Internal (mounting) view
Figure 23 IMx-8Plus mobile data / Wi-Fi antenna (optional)
It has a single, central, anti-rotation mounting that requires a 15 by 15 mm square
entry through the enclosure wall (maximum corner radius of 1 mm). Externally the
maximum installed dimensions of the circular antenna and gasket part are 146 mm in
diameter by 32 mm high.
The 0.5 m integral cable has SMA male connectors for the LTE 1, LTE 2 and Wi-Fi
connections on the IMx-8Plus.This antenna / IMx-8Plus combination supports the
following frequencies/standards:
• AMPS 850 MHz
• GSM 900 MHz
• 3G UMTS 2.1 GHz
• Wi-Fi 2.4 GHz, channels 1 to 11
• DCS 1800 MHz
• PCS 1900 MHz
• LTE 2.6 GHz
• 4G/LTE 791-960, 1710-2690 MHz
