Pump units of the KFG series for rotary application
10 1-3034-EN
Fill level monitoring
Fill level switch P
Fill level switch P
Technical data, design P
Medium ...........................NLGI Grade 2 greases
Fill level monitoring
Function .........................Protective ground
Form of contact ............NO-contact/changeover
Switching capacity, max. 60 W/VA Switching
voltage, max. ..................230 V DC/AC
Switched current, max. 1 A
Connection diagram .....EN 175301-803 plug
Protection class .............IP 65

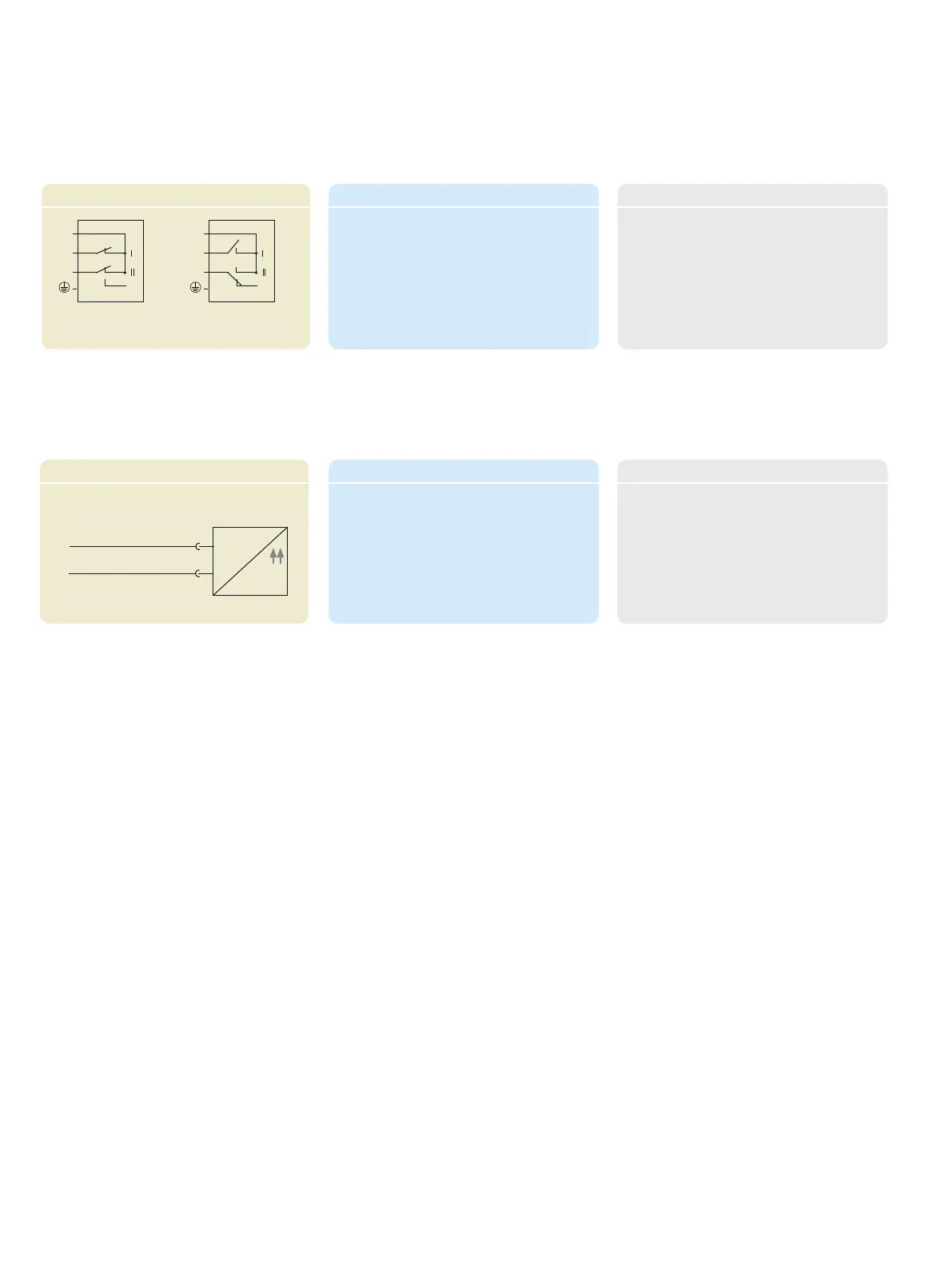

Connector pin assignment, design P
Pin Description
1 = + Supply voltage
2 = "Maximum"
3 = "Minimum"
Technical data, design T
Medium ..........................NLGI Grade 2 greases
Current output .............KFG/KFGS 4-20 mA
KFGC 0.4-3.6 mA
Connection diagram ....EN 175301-803 plug
Protection class ............IP 65
Quasi-analog fill level switch T
Quasi-analog fill level switch T Connector pin assignment, design T
Pin Description
1 = + I
2 = - I
Switch position at
early warning
minimum
Switch position at
minimum
1
2
3
1
2
3
=
Fill
level
1
2
DC 7,5 .... 30 V
4 ... 20 mA
