SKF KFG Series General Information

Pump units of the KFGS series for rotary application
171-3034-EN
Fill level switch P
Fill level switch P

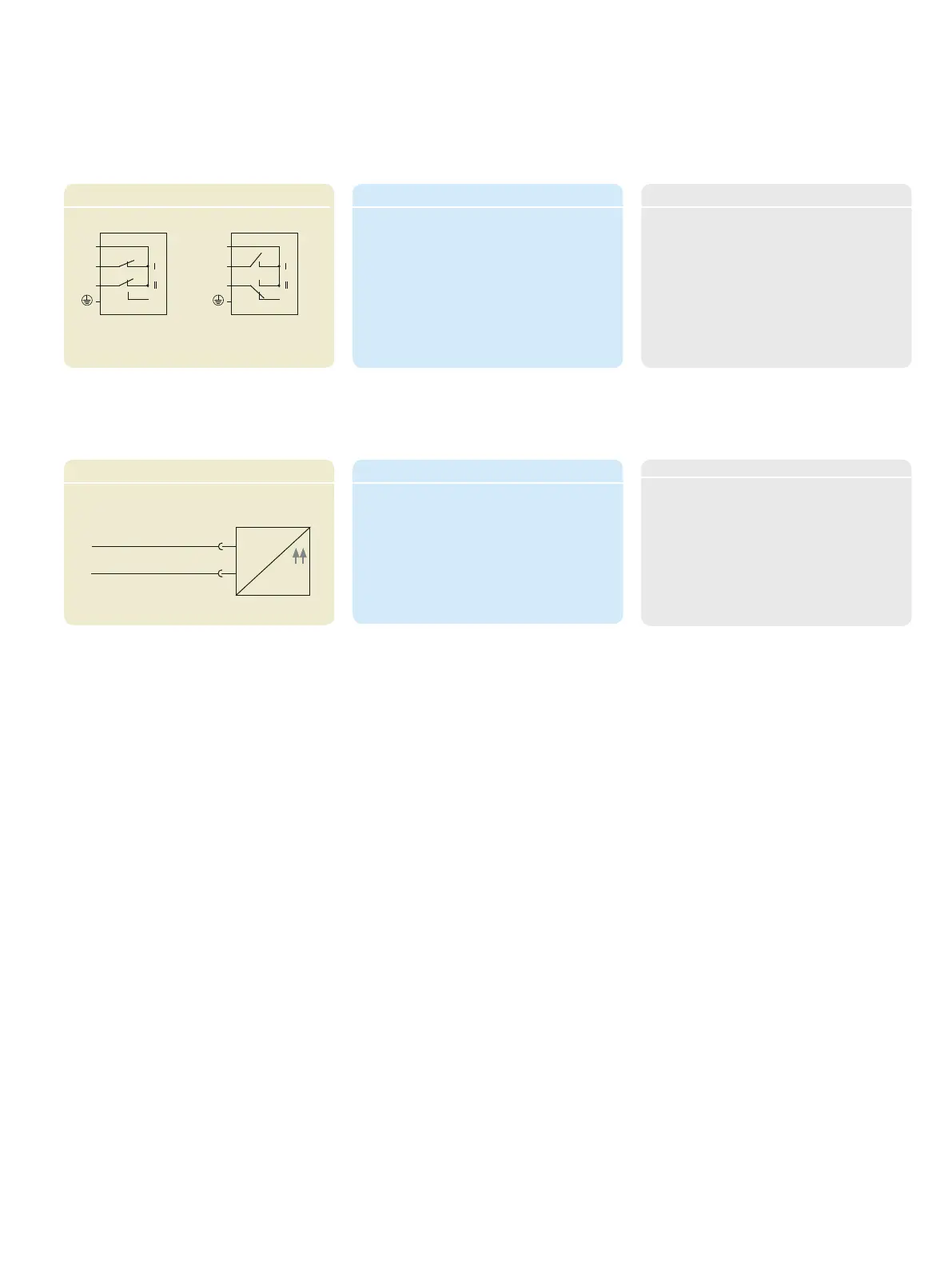

Connector pin assignment, design P
Pin Description
1 = + Supply voltage
2 = "Maximum"
3 = "Minimum"
Quasi-analog fill level switch T
Quasi-analog fill level switch T
Technical data, design P
Medium ............................. NLGI Grade 2 greases
Fill level monitoring
Function ........................... Protective ground
Form of contact .............. NO-contact/change-
over
Switching capacity, max. . 60 W/VA Switching
voltage, max. .................... 230 V DC/AC
Switched current, max. . 1 A
Connection diagram ....... EN 175301-803 plug
Protection class ............... IP 65
Switch position at
early warning
minimum
Switch position at
minimum
1
2
3
1
2
3
=
Fill
level
1
2
DC 7,5 .... 30 V
4 ... 20 mA
Technical data, design T
Medium ............................ NLGI Grade 2 greases
Current output ............... KFG/KFGS 4-20 mA
KFGC 0.4-3.6 mA
Connection diagram ...... EN 175301-803
plug Protection class ..... IP 65
Connector pin assignment, design T
Pin Description
1 = + I
2 = - I
