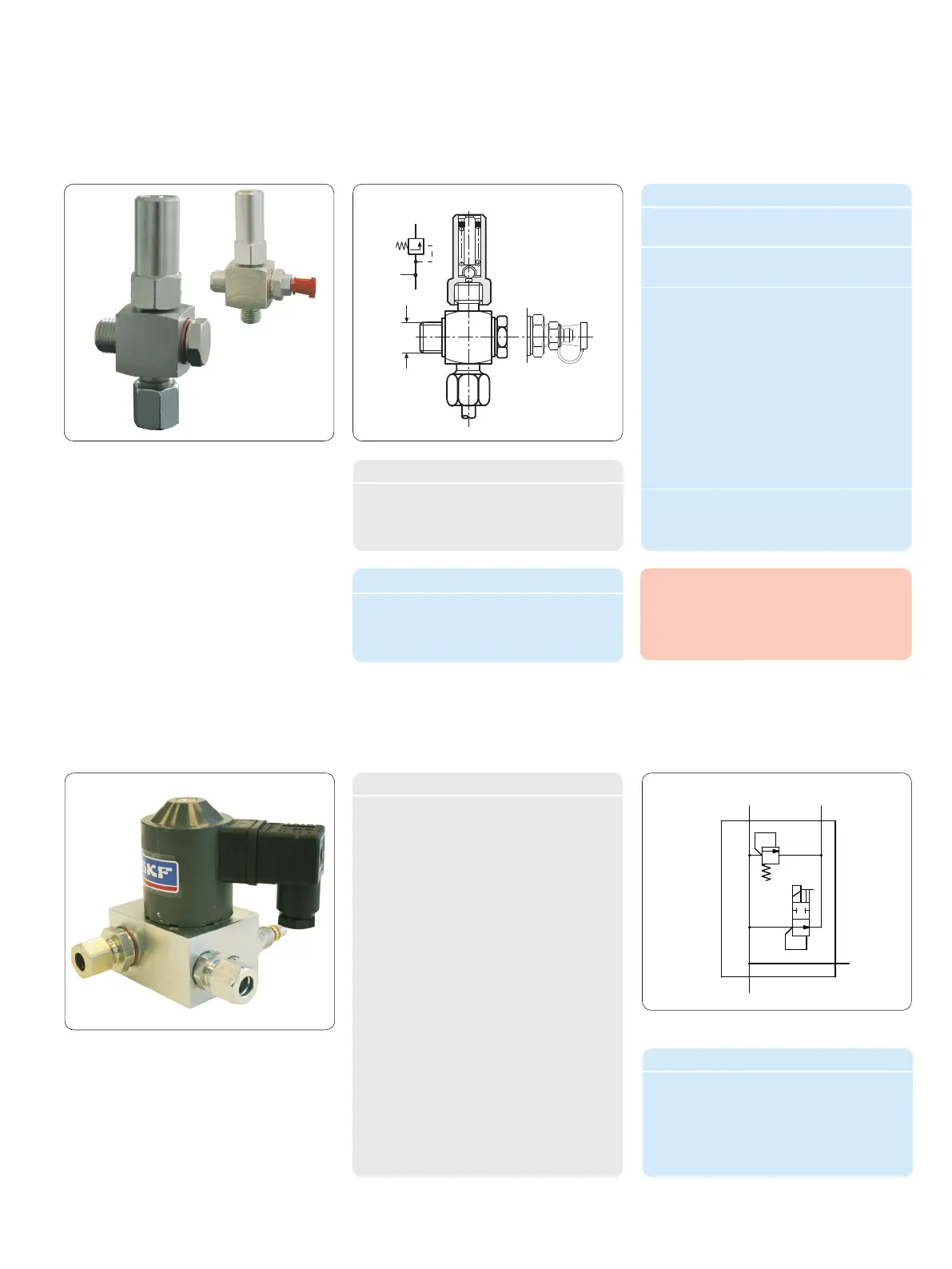

SKF KFG Series General Information

Pump units of the KFG series for rotary application
111-3034-EN
Pressure regulating valves
for progressive systems
R
A
P
R
M14 x 1,5
P
A
P
A
P
M14 x 1,5
R
R
A
Technical data
Cracking pressure ....... 200 -/ 300 ± 20 bar
Nominal tube sizes Ø . 6 mm, 8 mm, 10 mm
Note
The pressure regulating valve is optionally
available with a lubricant nipple with T con-
nector output (see accessories on page 25).
Pressure relief valve with inte-
grated pressure regulating valve
for single-line systems
200bar
P2
A
TP1
Hydraulic block diagram
Spare parts
Pressure regulating valve without
lubricant nipple
Tube Ø Cracking pressure Order number
[mm] [bar]
6 300 161-210-012
6 200 161-210-032
8 300 161-210-018
8 200 161-210-031
10 300 161-210-016
10 200 161-210-030
Pressure regulating valve with
lubricant nipple
6 300 161-210-014
8 300 161-210-025
Connections for pressure regulating valve
A Connection to main lubricant line
P Pipe thread for pump element
R Grease emitted at overpressure
Connections for pressure relief valve
P1 Connection to pump element 1
P2 Connection to pump element 2
T Connection to tank
A Connection to main lubricant line
Technical data
Pressure relief valve 24 VDC
Input voltage ............ 24 VDC
Nominal output ........26 W
Rated current ........... 1.2 A
ON-time ....................100%
Protection class ........ IP65
Pressure regulating valve
Set pressure .............200 bar
Plug-in connection ..DIN EN 175 301-803
Pressure relief valve 230 VAC
Input voltage ............ 230 VAC
Coil voltage ................205 VDC
Nominal output ........26 W
Rated current ........... 0.13 A
ON-time ...................100% at 35 °C
Protection class ........ IP65
Pressure regulating valve
Set pressure .............200 bar
Plug-in connection ..DIN EN 175 301-803
