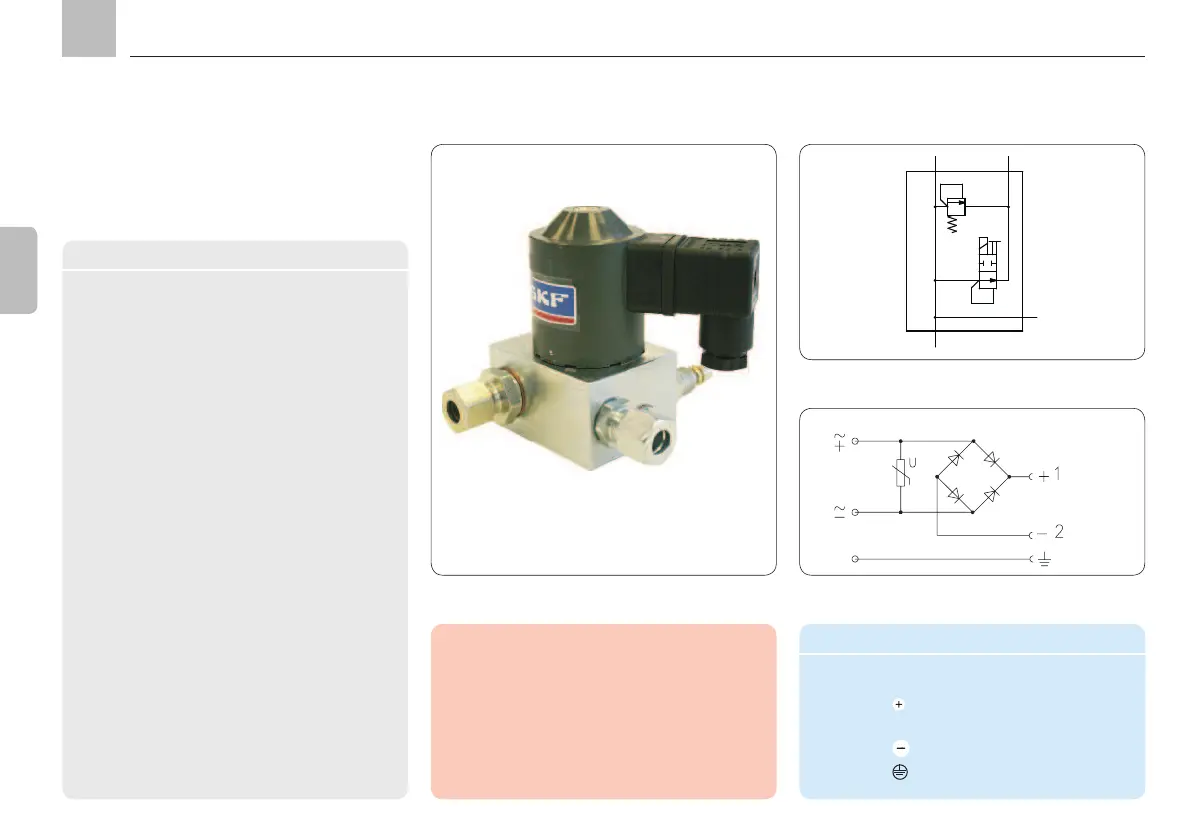

4.5.2.5 Pressure relief valve with integrated
pressure regulating valve
(for single-line systems with VR distributors)
Technical data
Pressure relief valve 24 VDC
Input voltage ............. 24 VDC
Rated output ............. 26 W
Rated current ............ 1.2 A
ON-time ................ 100%
Protection class ........... IP 65
pressure regulating valve
Set pressure .............200 bar
Plug-in connection per DIN EN 175301803
Pressure relief valve 230 VAC
Input voltage ............. 230 VAC
Coil voltage ............... 205 VDC
Rated output ............. 26 W
Rated current ............ 0.13 A
ON-time ................ 100% at 35 °C
pressure regulating valve
Set pressure .............200 bar
Protection class ........... IP 65
Plug-in connection per DIN EN 17530-803
Plug-in connection per DIN EN 17530-803
200bar
P2
A
TP1
Hydraulic block diagram
Electrical block diagram
Connector pin assignment
PIN Description
1
(Current) Supply
voltage potential
2
Ground
3
PE
Note
When VKR distributors are used, a max. set
pressure of 130 bar for the pressure regulating
valve must not be exceeded.
