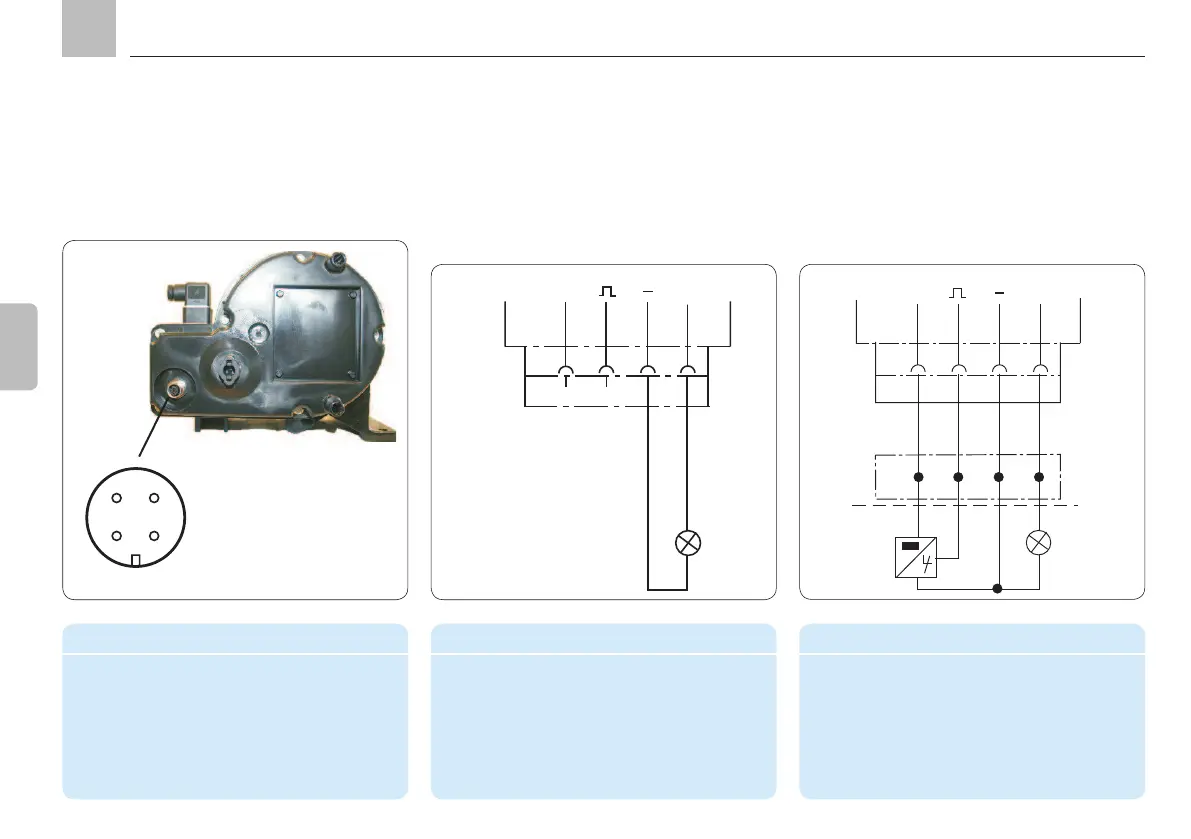

Socket pin assignment
PIN Color code Conductor coloring
1 BN Brown
2 WH White
3 BU Blue
4 BK Black
3
4
12
M12x1 circular plug socket
per EN60947-5-2
4.5.3.8 12/24 VDC connections for
system monitoring using an
M12x1 circular plug socket
4.5.3.9 Connectivity for timer operation
without system monitoring

Programming: tPA, tCO, COP = OFF
24 VDC
+
X2
1 2 3
SL2
4
BU BK
SL2
2,4W
Connector pin assignment in timer operation
PIN Code Assignment
3 SL2 "Fault" indicator light ( - )
4 SL2 "Fault" indicator light ( + )
4.5.3.10 Connectivity for timer operation
with system monitoring

Programming: tPA, tCO, COP = CS or PS
24 VDC
+
X2
1 2 3
SL2
4
BN WH BU BK
BN BU BK
X5
CS/PS
SL2
2,4W
1
2
3
Connector pin assignment in timer operation
PIN Code Assignment
1 Voltage ( + )
2 CS/PS Cycle/pressure switch (signal)
3 SL2 "Fault" indicator light ( - )
4 SL2 "Fault" indicator light ( + )
