The "Timer operation with system
-
nectivity option (Chapter 6.5.5.1) is
also available in an advanced version
with a piston detector and fault signal.
A T connector with a special cable
adapter is required for this.
-
tration of the connection, under
Accessories, Chapter 17.

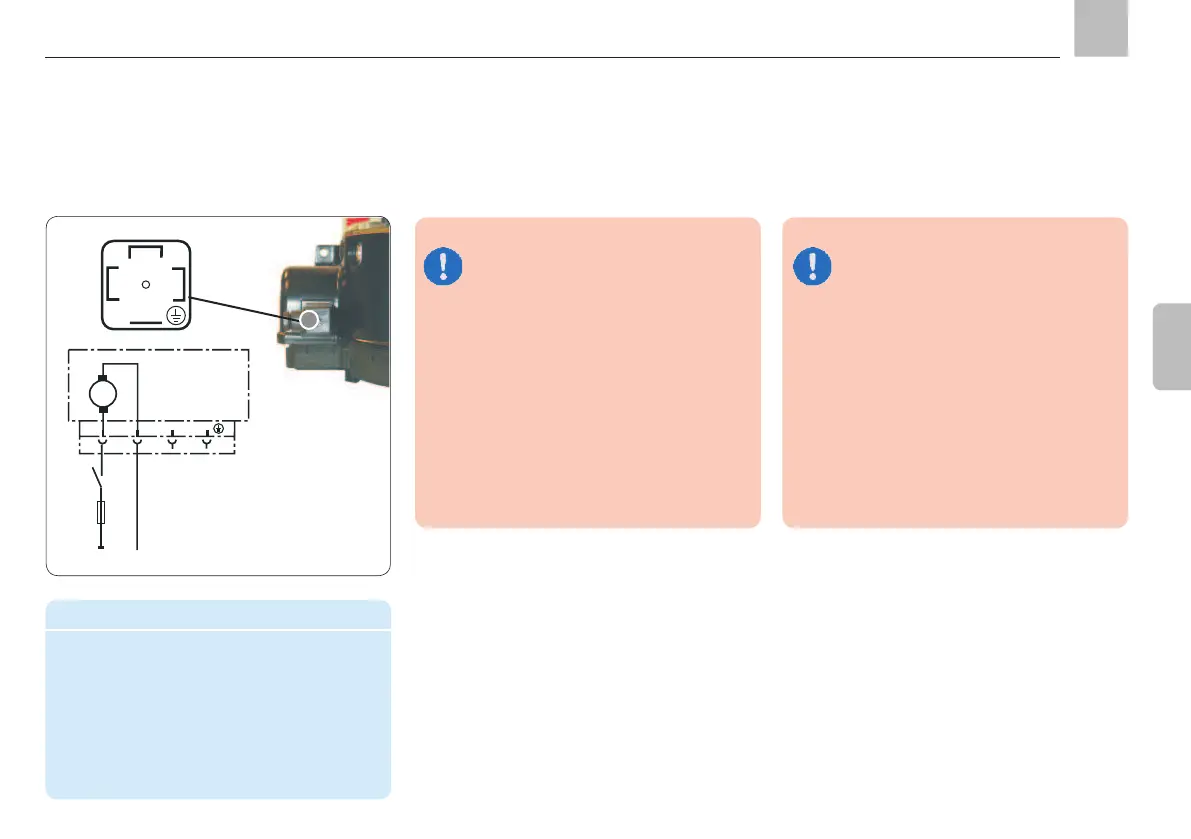

4.5.3.7 Power supply 12/24 VDC
using a cubical plug
Connector pin
assignment per
DIN EN 175 301-803

order number of the M12x1
circular connector (mating part for
circular plug socket) required by the
customer in brochure No. 1-1730,
"Electric Plug-and-Socket Connectors."
KFGS connections for progressive and single-line systems
L+
1
KFG...DC
2 3
X1
+
M
-
L-
Connector pin assignment for 12/24 VDC
PIN Description
1 (Current) = L + Supply voltage
potential (Main machine switch ON)
2 - (Ground) = M - Supply
voltage potential (0 V, GND)
KFGS
Assembly instructions
2
3
1
