Technical specification
Technical specifications
Tabel 6. Technical specifications of a doser group
Value Range Unit Description
t -35 … +80 °C Operation temperature range
p
max
200 bar Max. pressure
Connections
Input and output connections are in the doser body.
Input
x lubricant (2 pcs), main line inputs, female thread R 1/8”
Output
x lubricant (2 pcs), main line outputs, female thread R 1/8”
x lubricant (2-4 pcs), lubrication piping outputs, 1-4 pcs in both sides, outlet connection
Ø 6 mm.
max 1,32
1,2
1,0
0,8
0,6
0,4
0,2
min 0,13
0
0
123
45
6
7
8 9 10 11 12 13 14 15 16 17 18 19
DOSAGE (g) (grease density 0,88 g/cm3)

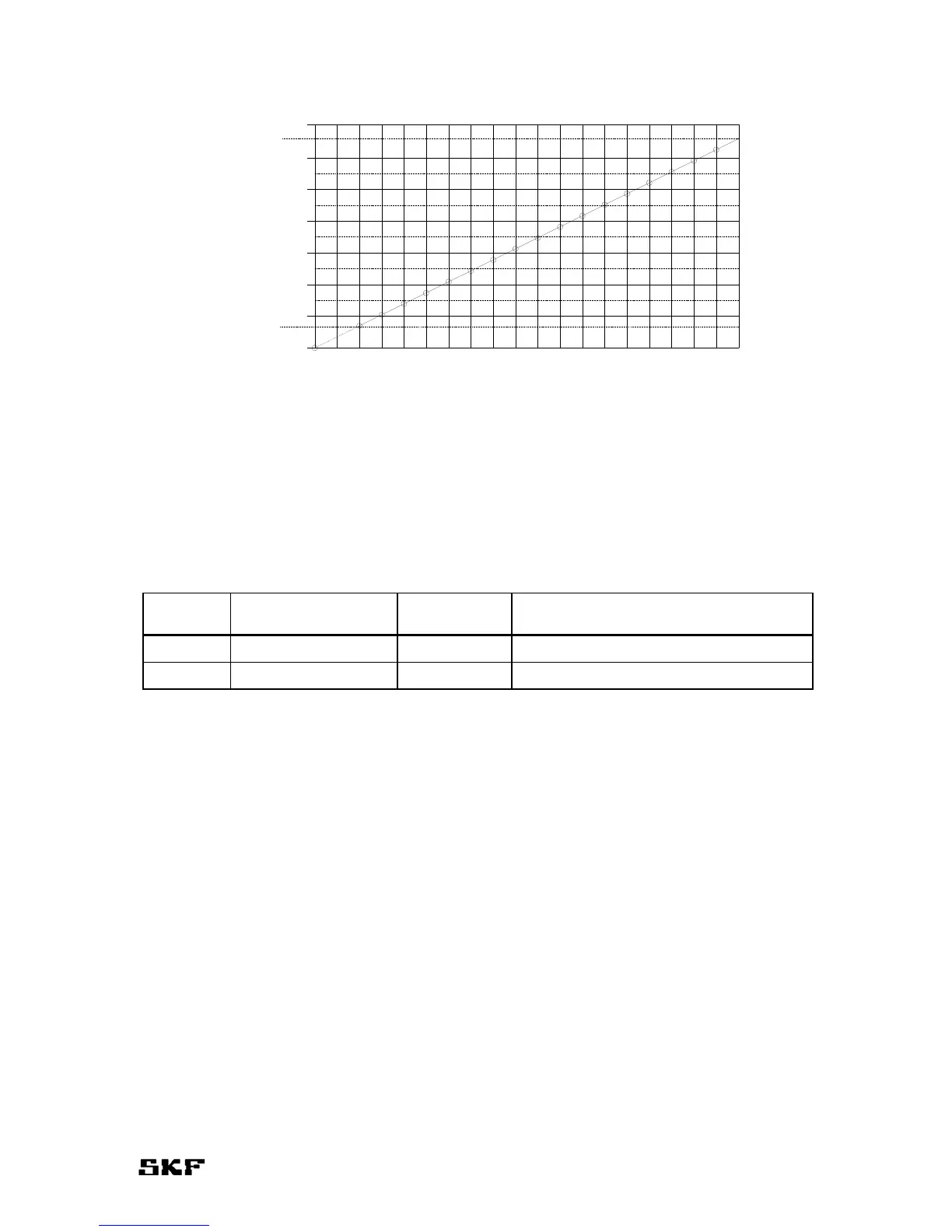

ADJUSTMENT GRAPH
mm/turn
TURNS OF ADJUSTMENT SCREW / L
