7. ST-1240-GRAPH USER INTERFACE
General description
The user interface of the control centre ST-1240-GRAPH is a colour touch screen panel.
The user interface is used for programming lubrication, acknowledging alarms and monitoring lubrication events.
Main components

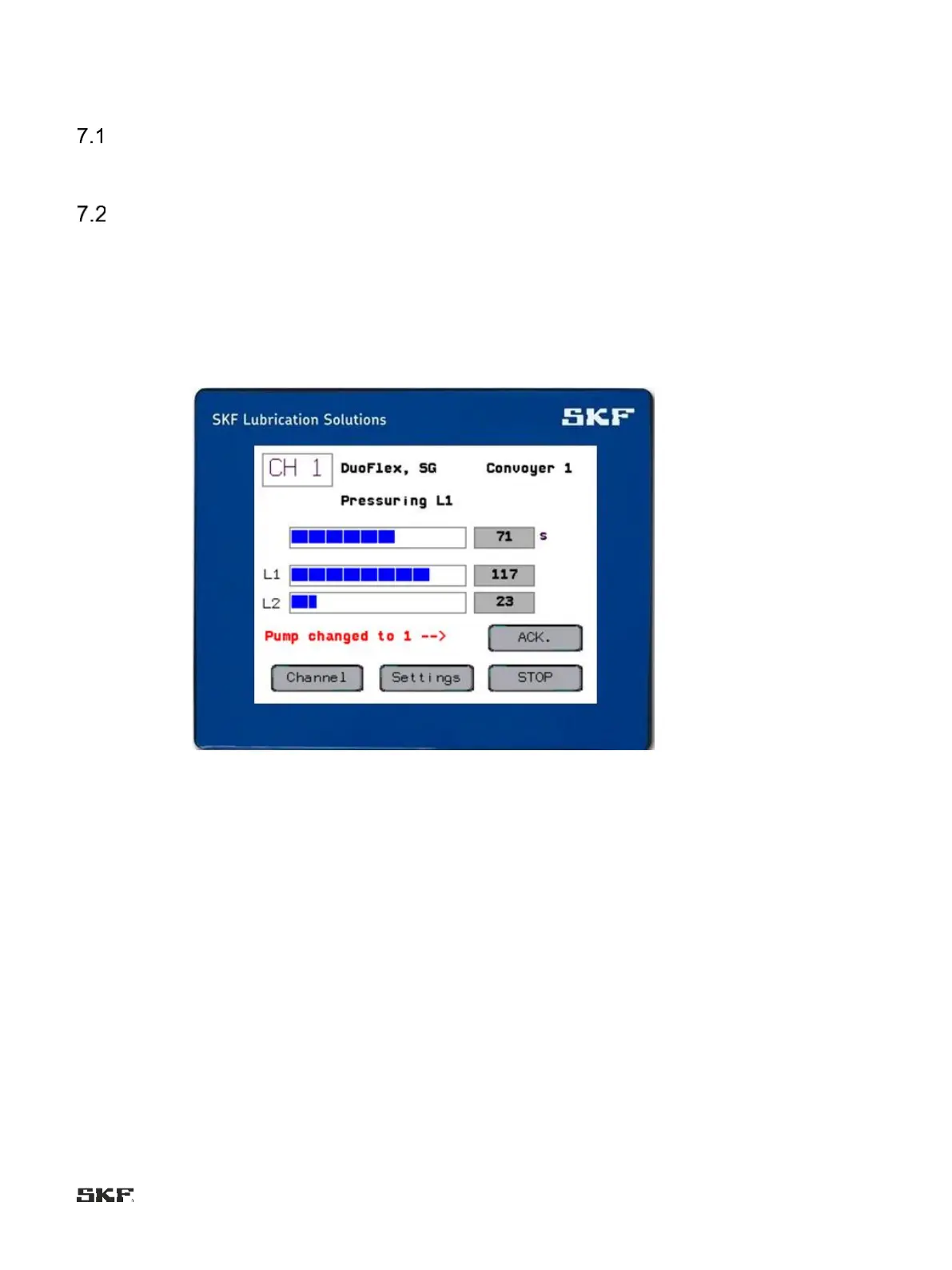

The GRAPH user interface includes a touch screen, which is divided into a lubrication channel specific status display and
parameter display pages. Selecting the pages on the display and controlling the lubrication is performed with the touch screen
buttons that change according to mode.
