7.3.1 Start display

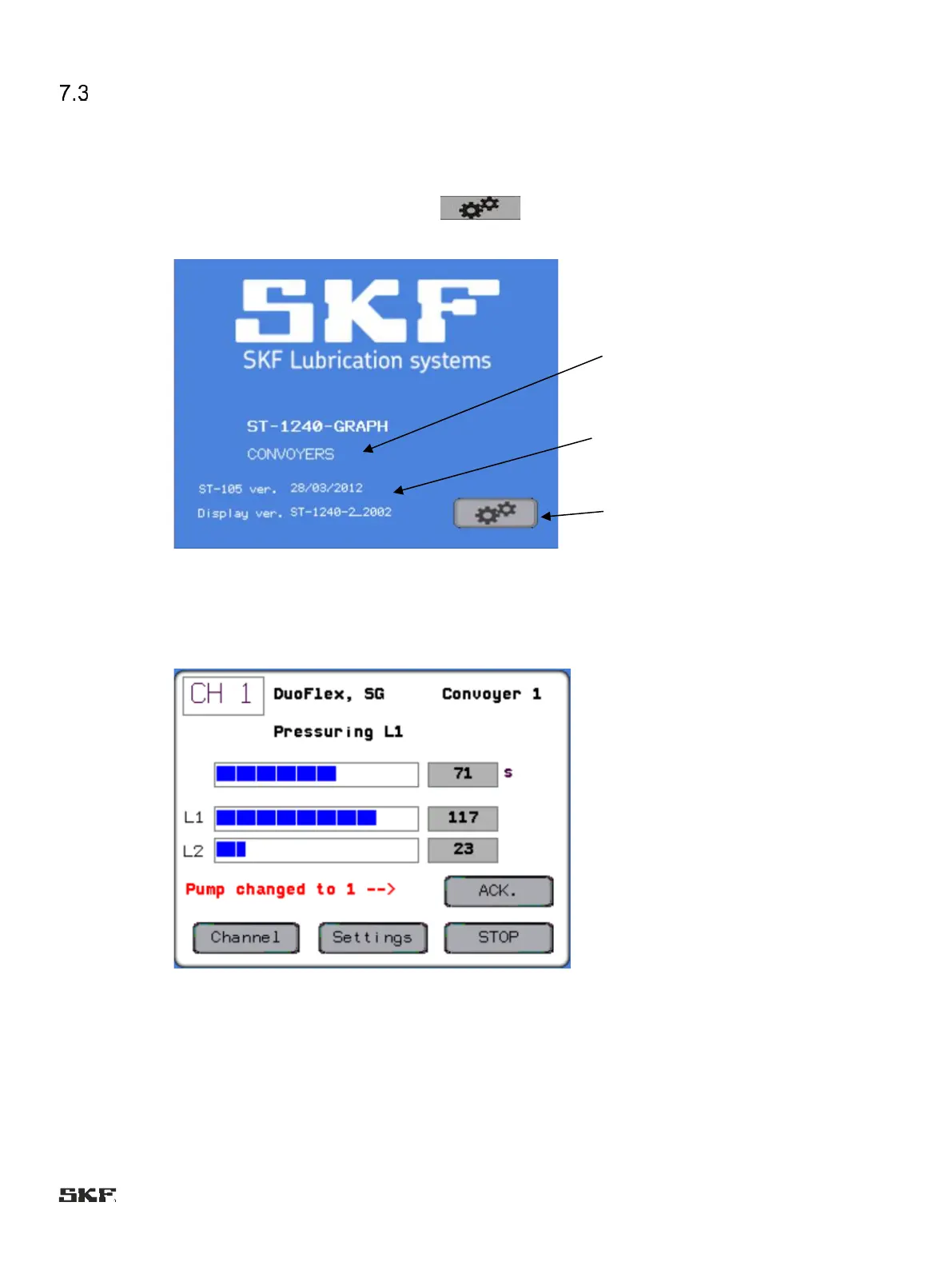

When the ST-1240-GRAPH centre is switched on, a start page is displayed:
Go to the lubrication channel display by pressing the button . The status display for channel 1 opens.
7.3.2 Status display
The status display shows the current mode of the selected lubrication channel.
Lubrication centre9s
name
Software versions of
HMI and ST-1240
control centre9s CPU
Display selection
button
