When reinstalling belt guard, position its cut-away toward front of
snowmobile. Refer to decal in belt guard.
Place belt guard in front tabs first, then snap rear part in retainer.
TYPICAL

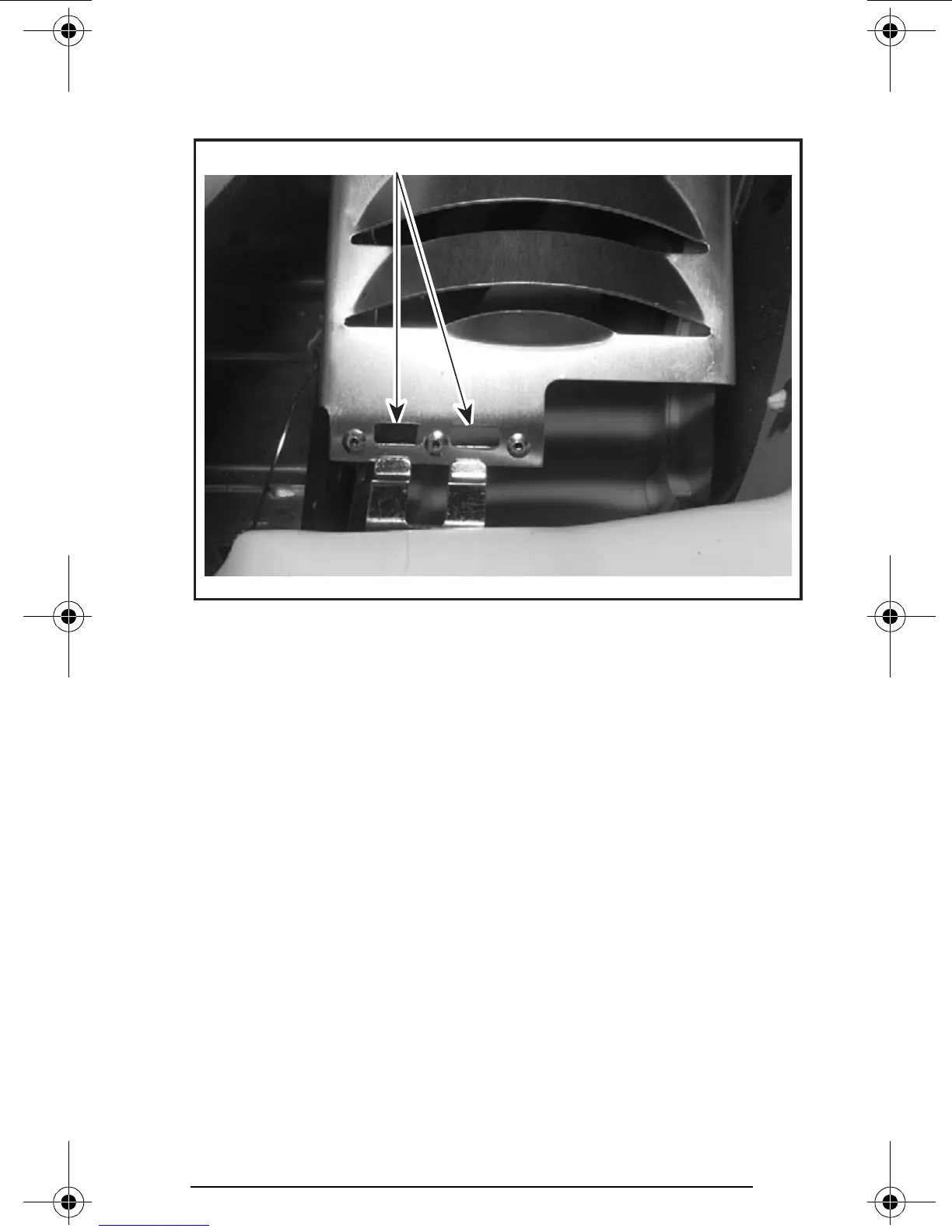

1. Slots
NOTE: Belt guard is purposely made slightly oversize to maintain ten-
sion on its pins and retainers preventing undue noise and vibration.
It is important that this tension be maintained when reinstalling.
1
A32C06A
