51) Fuses
Ground Protection Fuse
Fan-Cooled Models Only
Ground wire is protected with a 20 ampere rated fuse. See following
illustration for fuse holder location. Check fuse condition and replace
it if necessary.

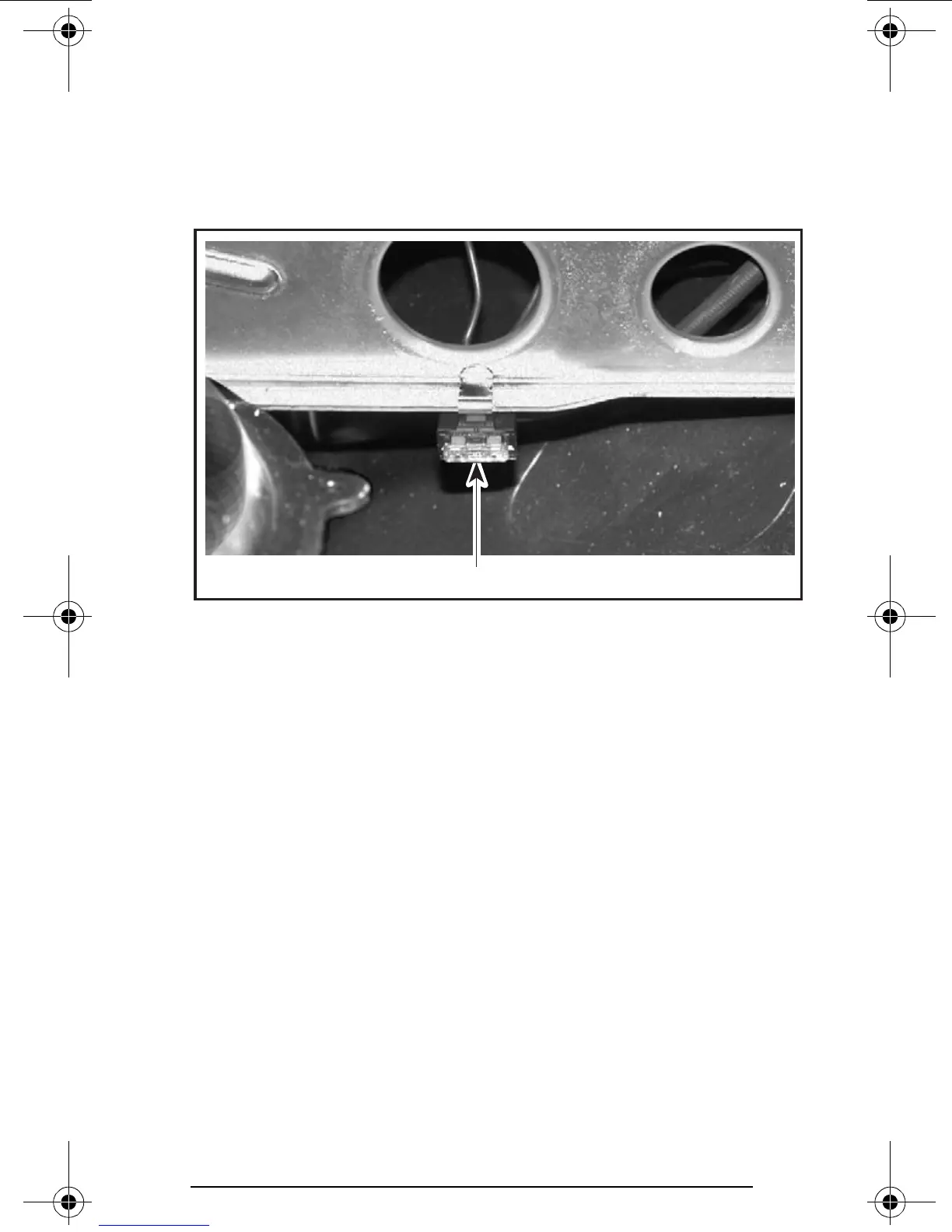

1. Ground wire protection fuse
Charging System Fuse
Charging system is protected with 30 ampere rated fuse. See follow-
ing illustration for fuse holder location. If charging system does not
operate, check fuse condition and replace it if necessary.
Accessories Fuse
Accessories are protected with 20 ampere rated fuse. See following
illustration for fuse holder location. If no current is present at outlet,
check fuse condition and replace it if necessary.
Headlight Fuse
Headlight is protected with 20 ampere rated fuse. See following il-
lustration for fuse holder location. If headlight does not light up, check
fuse condition and replace it if necessary.
1
A32E2MA
