The maximum drive belt life span is obtained when the belt has the
proper rotation direction. See arrow on belt.

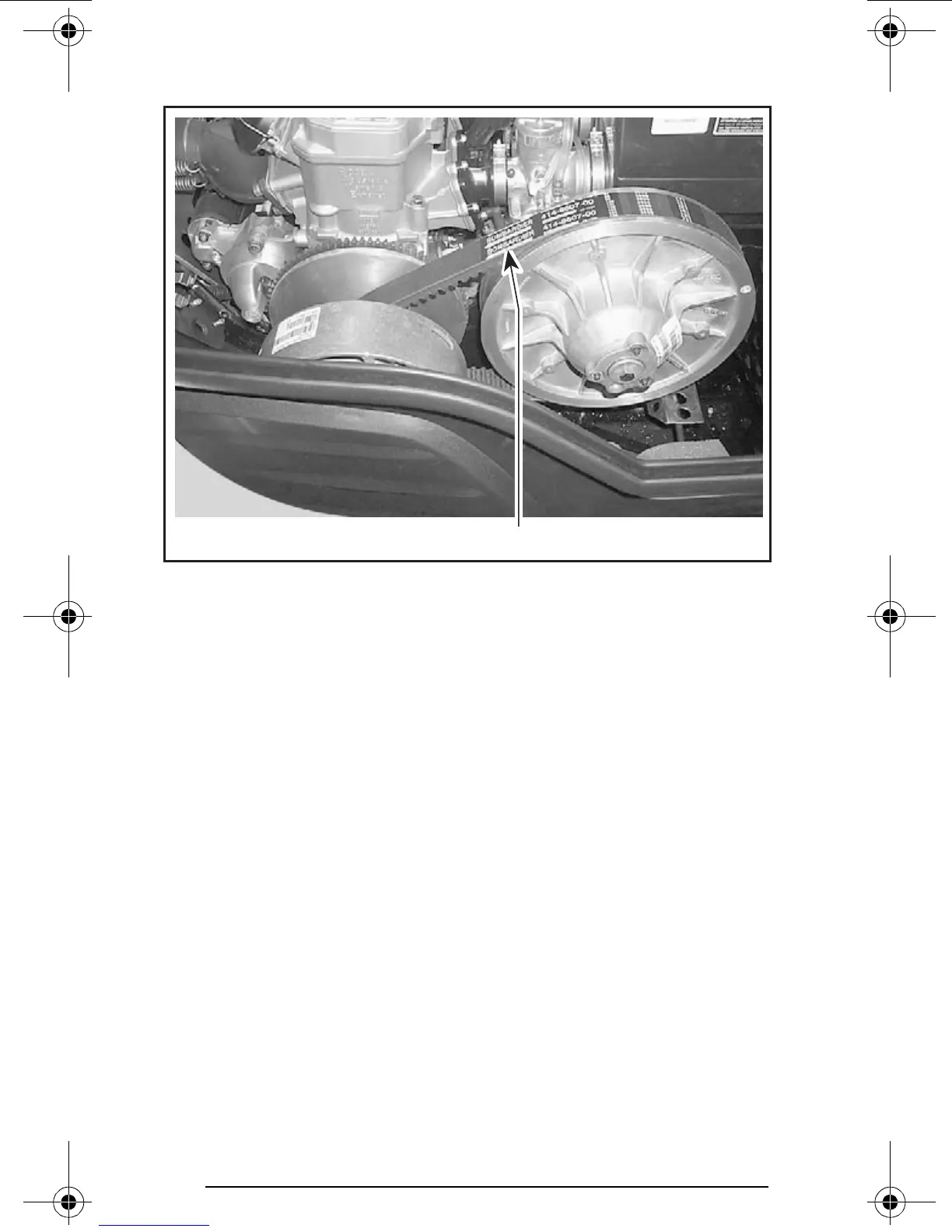

TYPICAL
1. Arrow pointing front of vehicle
CAUTION: Do not force or use tools to pry the belt into place, as
this could cut or break the cords in the belt.
To install the drive belt, first place belt between drive pulley sheaves.
Then, between driven pulley sheaves, finishing with bottom.
Remove drive belt installer/remover. Reinstall access panel and belt
guard.
1
A32D15A
