Alert states

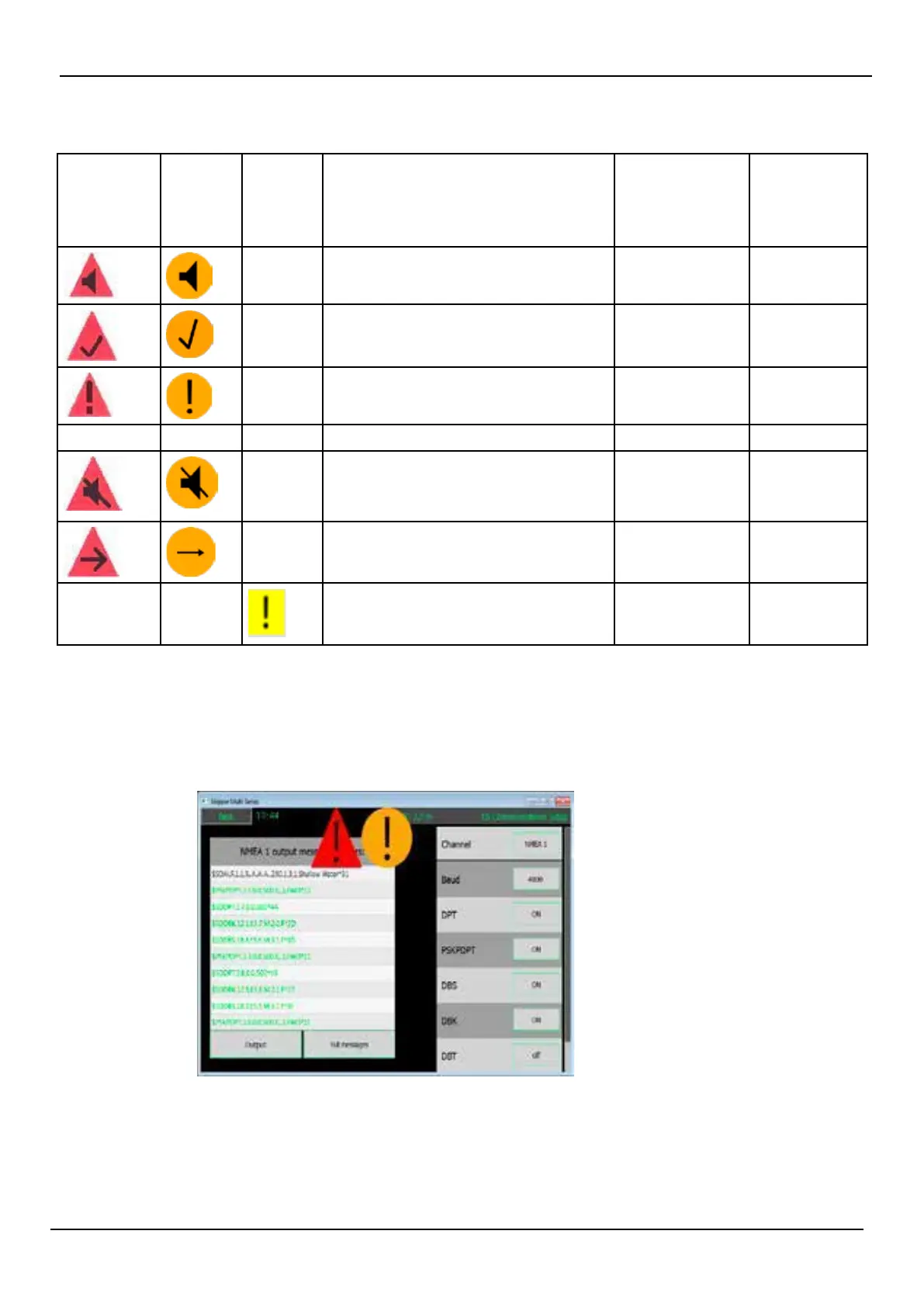

The Following symbols indicate the current alert status
Symbol
Alarm
Symbol
warning
Symbol
Caution
Alarm/Alert Status Sound
for Shallow
water (Alarm)
Sound
for other
warnings
Unrectied, unacknowledged 3 beep 2 beep
Rectied, unacknowledged No beep No beep
Unrectied, acknowledged No beep No beep
No symbol Rectied, acknowledge (Normal) No beep No beep
Silenced alarm No beep for
30 seconds
No beep for
30 seconds
Responsibility transferred No beep No beep
Caution No beep No beep
If responsibility is transferred, the alert is being handled by another equipment, the system cannot
be acknowledged locally (but can be acknowledged by the remote system). When the alarm is
rectied, it will disappear from the system.
Examples
If connected to a central alarm management system, and this fails, the lack of an HBT NMEA
message from the CAM will cause the system to take back control after a little more than a
minute.
