3.4 Removing and installing camshaft oil
seal
⇒ “3.4.1 Removing and installing the camshaft sealing ring on the
belt pulley side”, page 115
⇒ “3.4.2 Removing and installing the camshaft sealing ring for the
exhaust camshaft”, page 116
⇒ “3.4.3 Removing and installing the camshaft sealing ring for
exhaust camshaft on the gearbox side”, page 118
3.4.1 Removing and installing the camshaft
sealing ring on the belt pulley side
Special tools and workshop equipment required
♦ Assembly tool - T10478 B- with screw -T10478/5-
♦ Extraction hook - T20143/1-
Removing
– Remove the toothed belt from the camshaft sprockets
⇒ “2.4 Remove the toothed belt from the camshaft”,
page 86 .

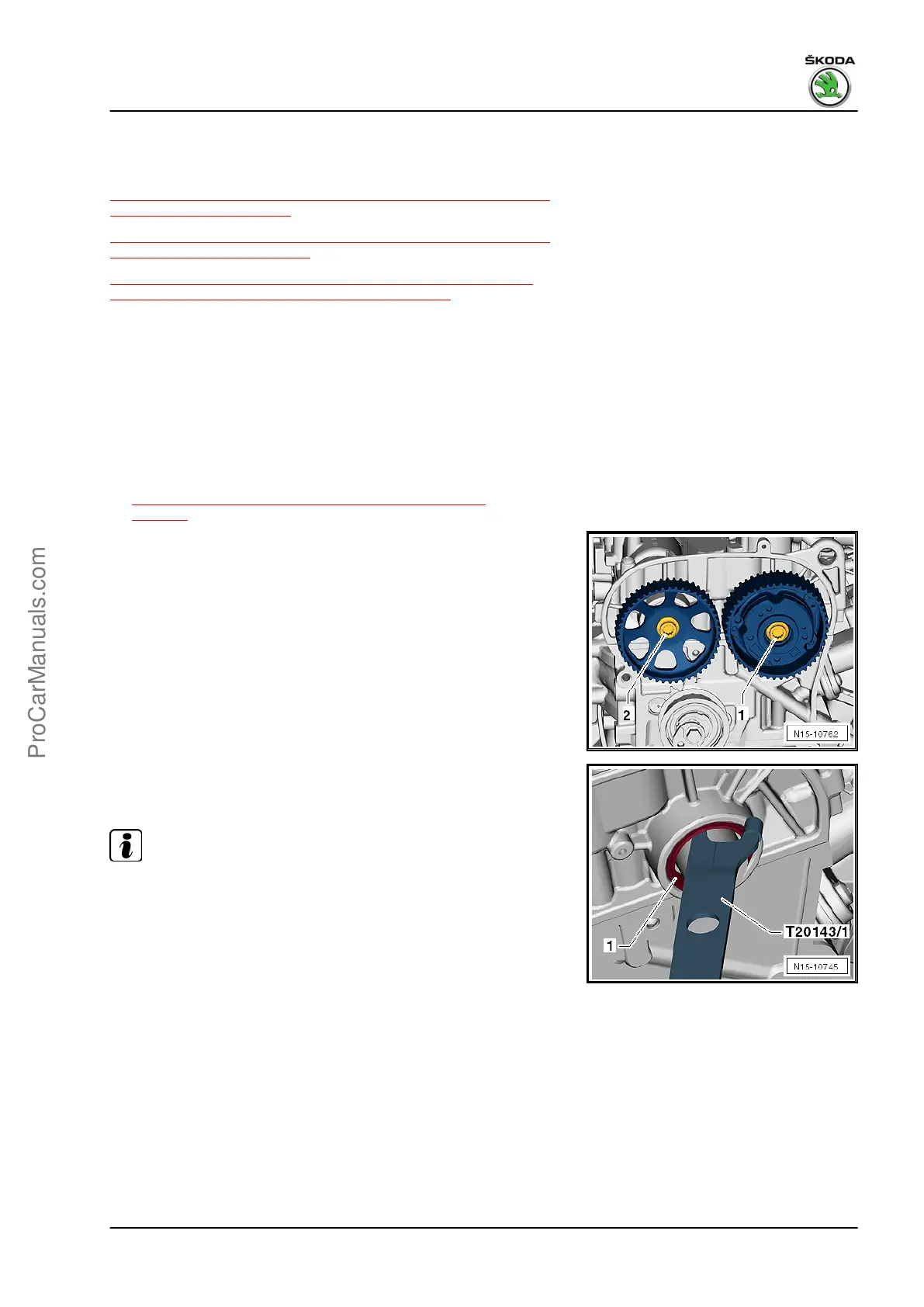

– Unscrew screw -1- and remove camshaft sprocket.
– Remove seal -1- using extractor hook -T20143/1- .
Install
Note
Do not oil new sealing ring.
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
3. Valve gear 115
