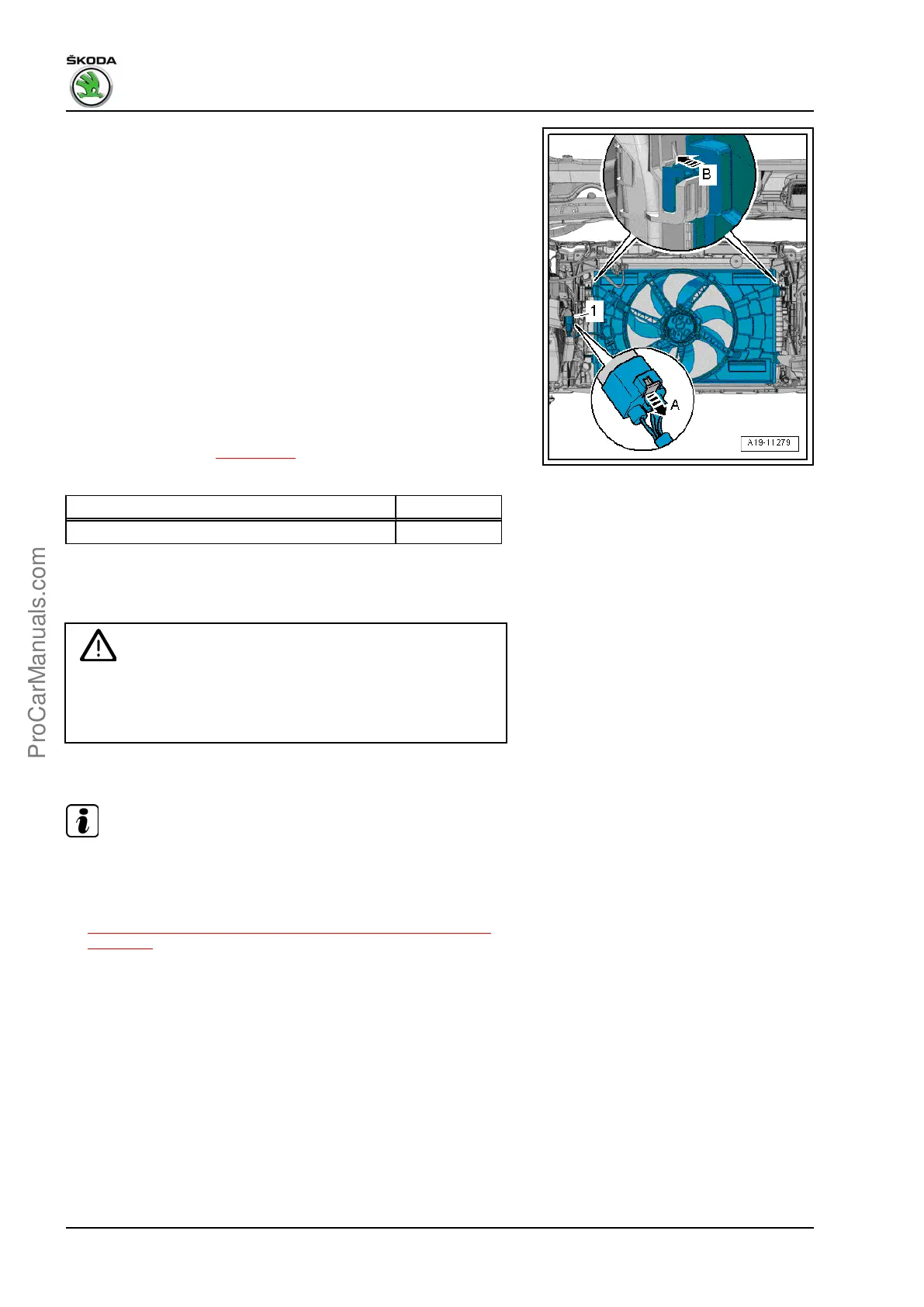

– Remove plug -1- for radiator fan, for this purpose slide screw
clamp backwards arrow -A- and press release button down.
– Press locking lugs for fan shroud left and right simultaneously
-arrow B- and remove fan shroud upwards from the radiator.
Vehicles with radiator version 3
– Partially move the fan shroud to the right and remove upwards
out of the vehicle.
Vehicles with radiator versions 1 and 2
– Remove the fan shroud downwards out of the vehicle.
Install
Installation is carried out in the reverse order. When installing,
observe the following:
– Electrical connections and proper routing ⇒ Current flow dia‐
grams, Electrical fault finding and Fitting locations.
– Replenish coolant ⇒ page 151 .
Tightening torque
Component Nm
Screw for cover on air guide 2 Nm
4.8 Removing and installing radiator fan -
V7-
WARNING
Risk of injury due to radiator fans starting up automatically.
♦ Before carrying out work in the fan shroud area, discon‐
nect the electrical plug connections.
Removing
Note
All cable straps should be fastened again in the same place when
installing.
– Removing fan shroud
⇒ “4.7 Removing and installing fan shroud for radiator fan”,
page 182 .
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
184 Rep. gr.19 - Cooling
