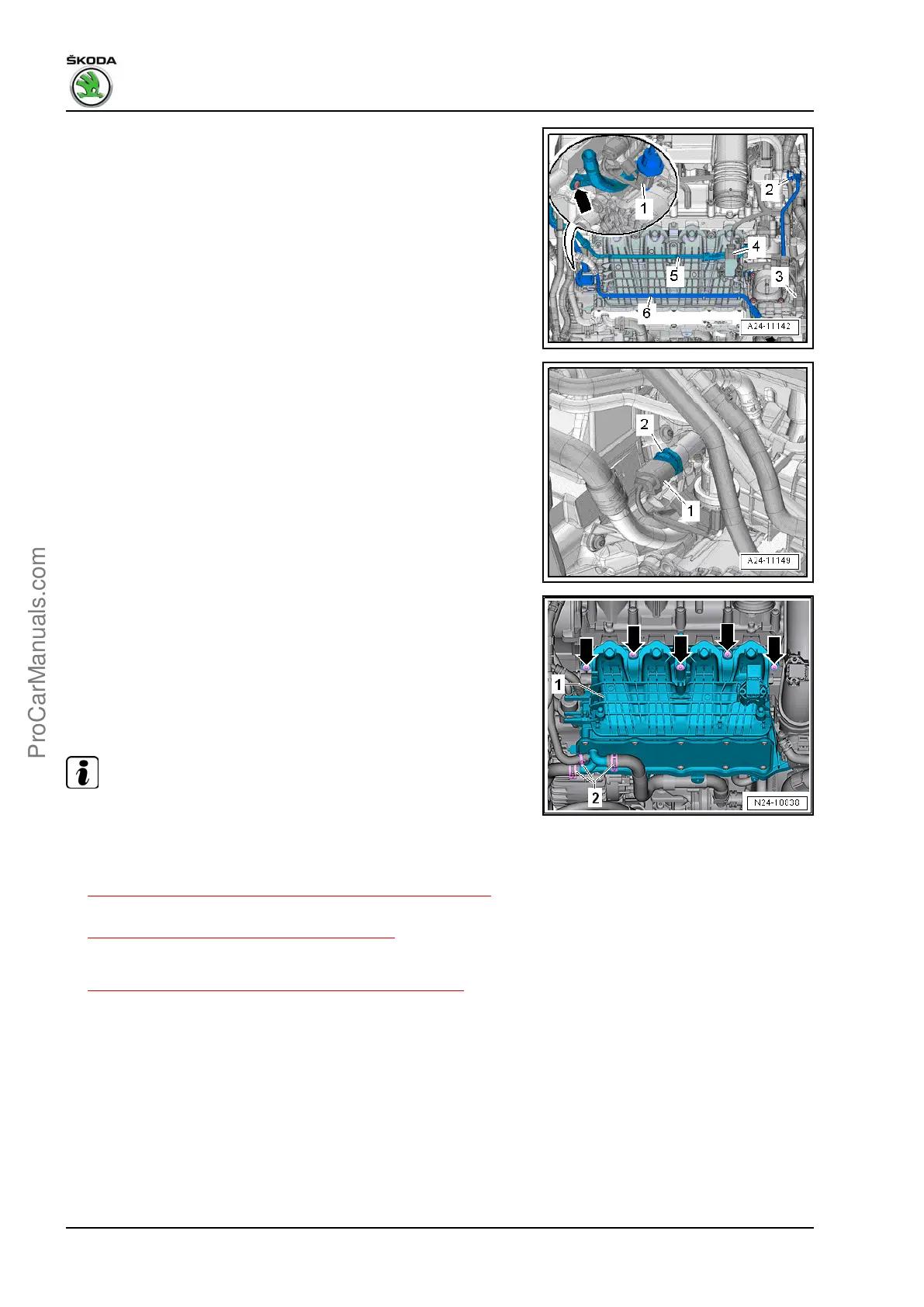

Disconnect electrical plug connections:
1 - For solenoid valve 1 for activated charcoal filter - N80-
3 - for throttle valve control unit - GX3-
4 - Intake manifold pressure sender - GX9-
Release screw -arrow-.
Press release buttons and remove hose -2- for activated char‐
coal filter.
Unclip fuel feed line -5- and coolant line -6- at the intake mani‐
fold and push to the side.
Disconnect the plug connection -1- from the fuel pressure
sender - G247- .
Disconnect the electrical plug connections from the oil pres‐
sure switch sender.
Loosen hose clamps -2- and remove coolant hoses.
Remove bolts -arrows-.
Remove intake manifold -1-.
Install
Installation is carried out in the reverse order. When installing,
observe the following:
Note
Replace gaskets and O-rings.
Install the noise insulation ⇒ Body Work; Rep. gr. 66 .
Install air filter housing
⇒ “2.2 Removing and installing air filter housing”, page 239 .
Replenish coolant
⇒ “1.2 Draining and filling coolant”, page 147 .
Tightening torques
⇒ “3.1 Assembly overview - intake manifold”, page 240
3.3 Removing and installing the throttle
valve control unit - GX3-
The throttle flap control unit - GX3- comprises:
Throttle valve module - J338-
Throttle valve drive - G186-
Throttle valve drive angle sender 1 - G187-
Throttle valve drive angle sender 2 - G188-
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
244 Rep. gr.24 - Mixture preparation - injection
