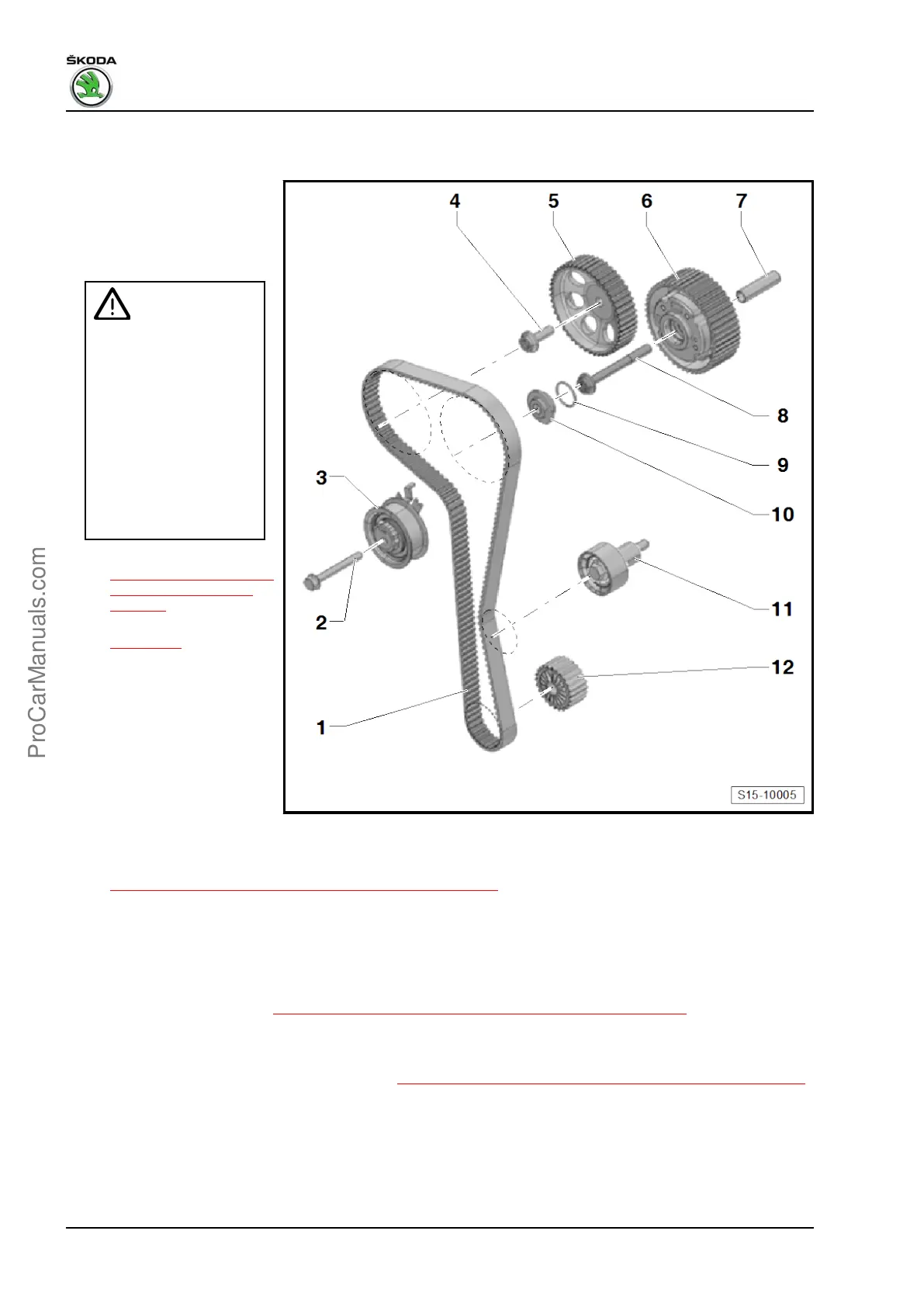

2.2 Summary of components - toothed belt
1 - Toothed belt
mark the direction of ro‐
tation with chalk or a felt-
tip pen before removing
check for wear
Caution
Risk of damage to the
toothed belt!
The bending radius of
the toothed belt must not
fall below 50 mm (ap‐
proximate Ø of the
crankshaft sprocket).
A larger bending radius
has a negative effect on
the life of the toothed
belt.
removing
“2.5 Removing and in‐
stalling toothed belt”,
page 99
install (set the timing)
⇒ page 93
2 - Bolt
When setting the tight‐
ening torque on the tor‐
que wrench - VAS 6583-
the actual dimension
specified on the tool in‐
sert - T10500- must be
put into the torque
wrench!
25 Nm
3 - Tensioning roller
for removing and installing, remove engine support
⇒ “1.5 Removing and installing engine support”, page 41
4 - Bolt
replace after removal
50 Nm + torque a further 90° (
1
/
4
turn)
5 - Toothed belt pulley, exhaust camshaft
installing and removing ⇒ “2.4 Remove the toothed belt from the camshaft”, page 86
6 - Toothed belt pulley, inlet camshaft
With camshaft control
Removing and installing camshaft control ⇒ “3.3 Removing and installing camshaft control”, page 114
7 - Guide sleeve
8 - Bolt
replace after removal
50 Nm + torque a further 135° (
3
/
8
turn)
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
80 Rep. gr.15 - Cylinder head, valve gear
