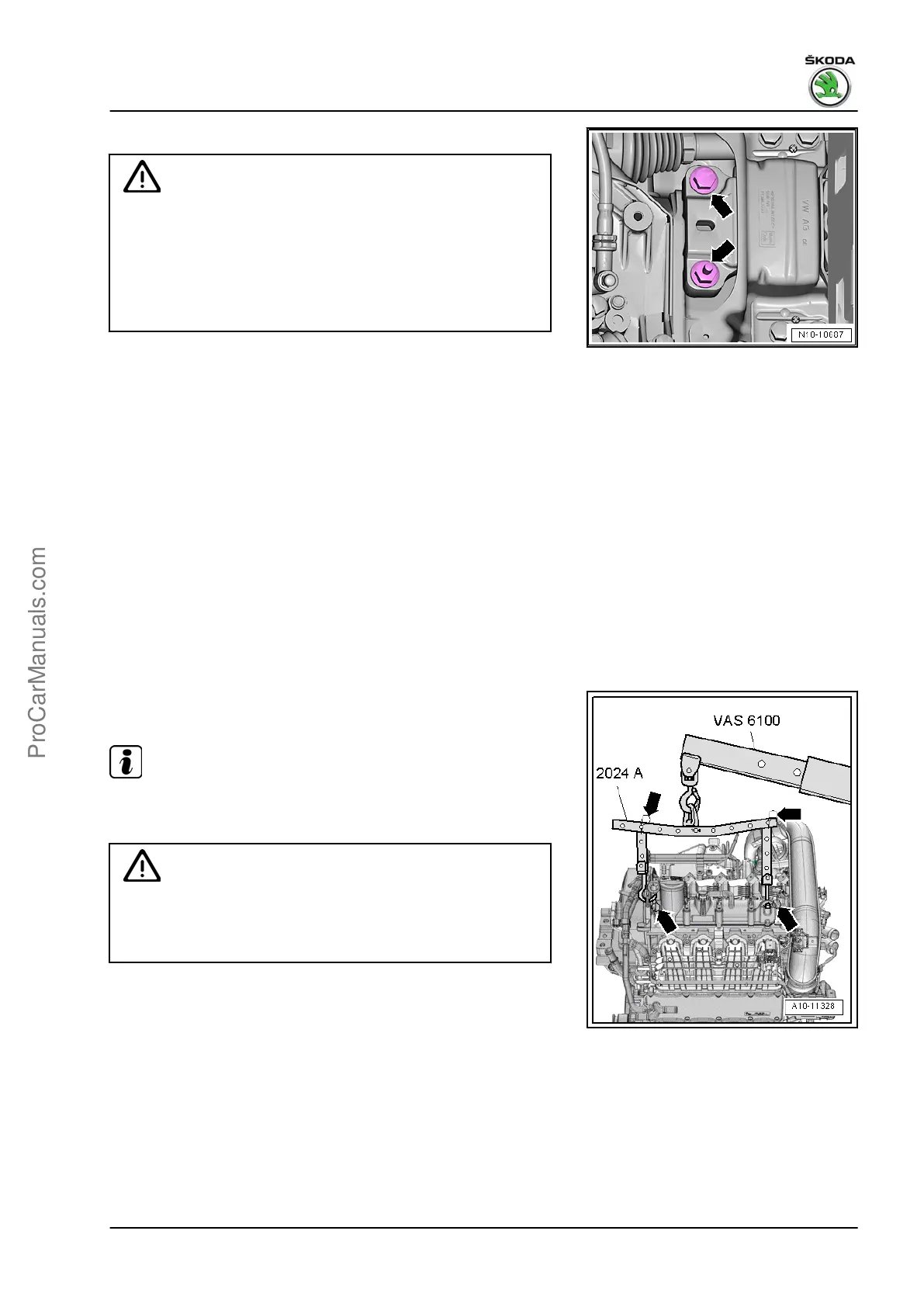

– Screw out gearbox mount screws -arrows- fully.
Caution
There is a risk of damage from vacuum lines or electric cables.
♦ Check that all vacuum lines and electric cables between
engine, gearbox, assembly bracket and body have been
loosened.
♦ Guide the engine/gearbox unit out of the engine compart‐
ment carefully when lowering.
– Drain engine/gearbox unit a little.
– Push the gearbox side of the engine/gearbox unit forwards
and drain it slowly and carefully.
– Remove the gearbox from the engine ⇒ gearbox; Rep. gr.
34 .
1.2 Securing the engine to the assembly
stand
Special tools and workshop equipment required
♦ Lifting device - MP9-201 (2024A)-
♦ Engine and gearbox support - VAS 6095-
♦ Workshop crane, e.g. - VAS 6100-
Work procedure
• Gearbox disconnected from engine.
– Suspend lifting device - MP9-201 (2024A)- from the engine
and workshop crane - VAS 6100- as shown in the illustration.
Note
For coordination with the unit centre of gravity position the perfo‐
rated rails must be placed as shown in the illustration.
WARNING
There is a risk of accident from loose parts of the lifting device.
♦ The suspension hooks and rig pin on the lifting must be
secured using plug-in locks -arrows-.
– Lift off engine with installed engine mount T10497 with work‐
shop crane - VAS 6100- from engine/gearbox jack - V.A.G
1383 A- .
– Remove engine mount T10497 .
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
1. Removing and installing engine 21
