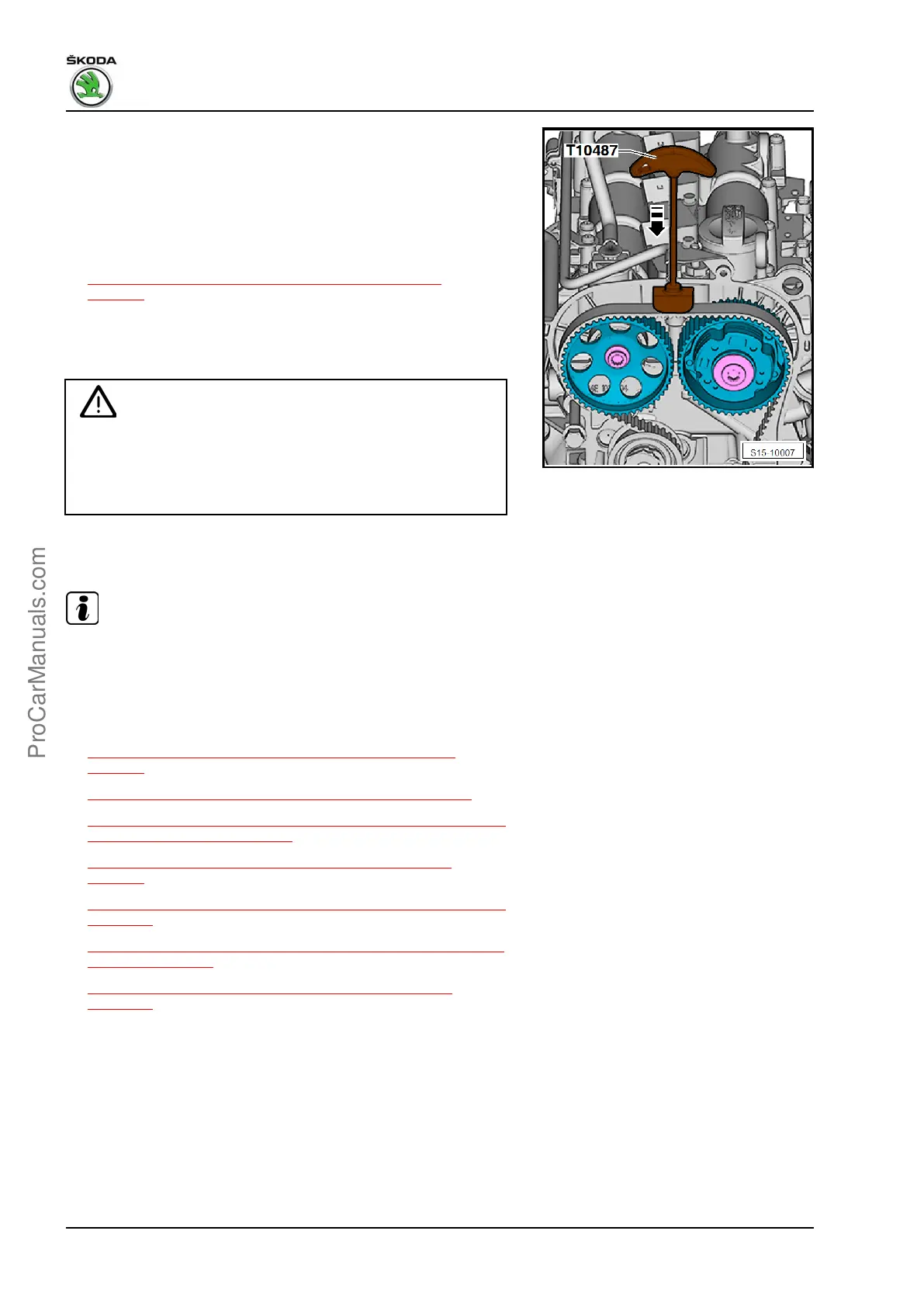

– Using the assembly tool - T10487- in -direction of arrow- press
on the toothed belt.
– At the same time, insert the camshaft clamp -T10494- up to
stop into the camshafts and fix with the screw.
If it is not possible to insert the camshaft clamp -T10494- , the
timing is NOK:
– Set timing, remove the toothed belt from the camshaft
⇒ “2.4 Remove the toothed belt from the camshaft”,
page 86 .
If it is possible to insert the camshaft clamp -T10494- , the timing
is OK:
– Valve timing is OK.
Caution
There is a risk of destruction of the engine.
♦ To complete the work, check to ensure that the fixing
screw - T10340- and camshaft clamp -T10494- have been
removed.
Installation is performed in a similar way in the reverse order. Pay
attention to the following points:
Note
♦ Replace screws which have been tightened firmly to a torque
angle.
♦ Renew O-ring of locking screw if damaged.
Tightening torques
♦ ⇒ “2.1 Summary of components - toothed belt guard”,
page 79
♦ ⇒ “2.2 Summary of components - toothed belt”, page 80
♦ ⇒ Fig. ““Unscrew locking screw TDC bore at the cylinder block
- tightening torque”“ , page 81
♦ ⇒ “1.2 Summary of components - camshaft housing”,
page 68
♦ ⇒ “1.1 Summary of components - exhaust gas turbocharger ”,
page 221
♦ ⇒ “2.1 Summary of components - coolant pump/coolant ther‐
mostat”, page 154
♦ ⇒ “2.1 Summary of components - charge air system”,
page 228
♦ Remove the sound dampening system ⇒ Body Work; Rep.
gr. 66 .
2.4 Remove the toothed belt from the cam‐
shaft
Special tools and workshop equipment required
♦ Counterholder - T10172- with adapters -T10172/1- and -
T10172/2-
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
86 Rep. gr.15 - Cylinder head, valve gear
