28 – Ignition system
1 Ignition system
⇒ “1.1 Assembly overview - ignition system”, page 281
⇒ “1.2 Removing and installing ignition coils with output stage”,
page 282
⇒ “1.3 Removing and installing knock sensor 1 G61 ”,
page 283
⇒ “1.4 Removing and installing Hall sender G40 ”, page 284
⇒ “1.5 Removing and installing engine speed sender G28 ”, page
284

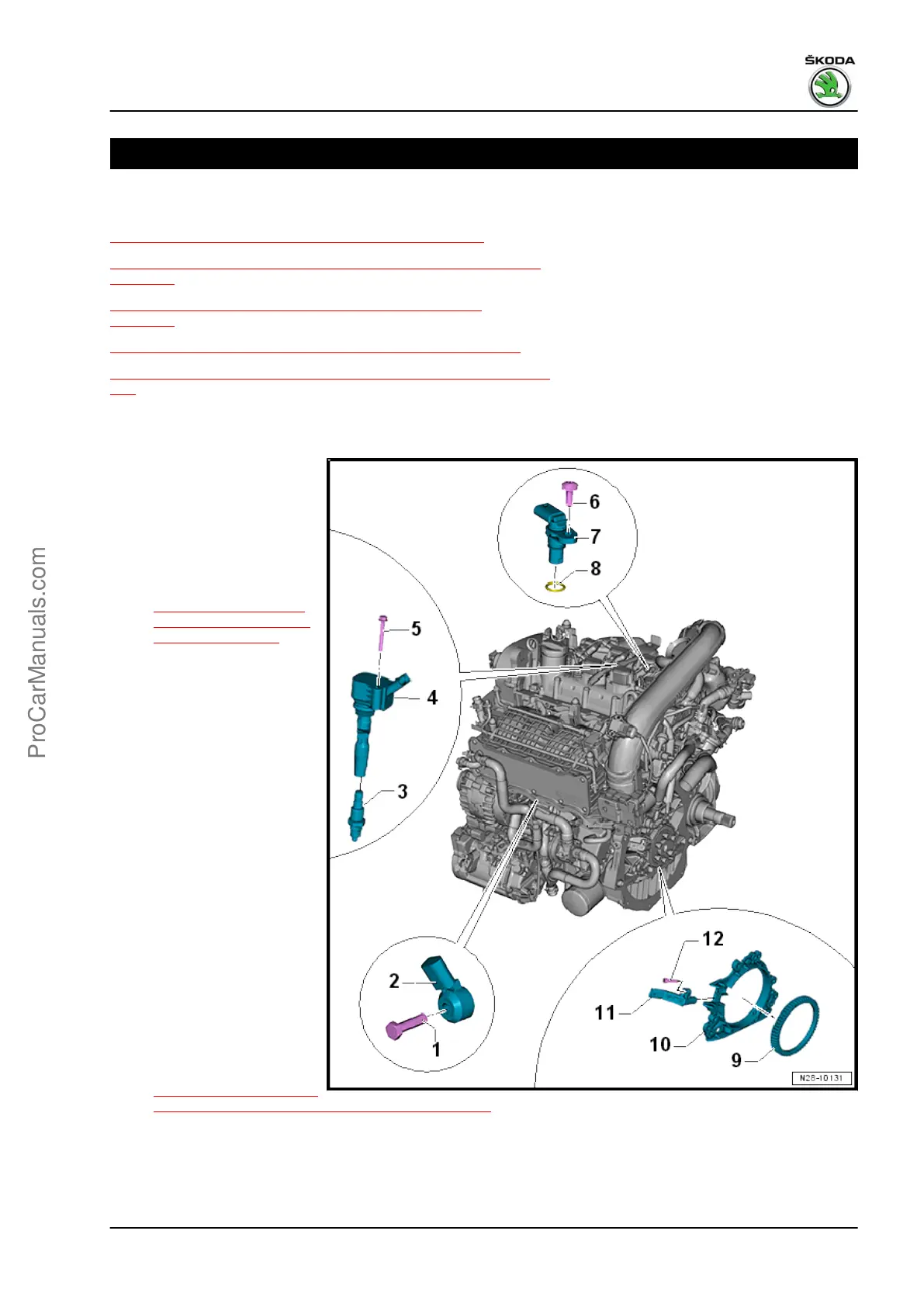

1.1 Assembly overview - ignition system
1 - Bolt
❑ the tightening torque in‐
fluences the knock sen‐
sor function
❑ 20 Nm
2 - Knock sensor 1 - G61-
❑ installing and removing
⇒ “1.3 Removing and
installing knock sensor
1 G61 ”, page 283
3 - Spark plug
❑ use spark plug wrench
e.g. -3122 B- for remov‐
ing and installing
❑ Change interval ⇒ Main‐
tenance ; Booklet Octa‐
via III
❑ Observe part number ⇒
Electronic Catalogue of
Original Parts “ETKA”
❑ 22 Nm
4 - Ignition coil with a power
output stage
♦ Ignition coil 1 with output
stage - N70-
♦ Ignition coil 2 with output
stage - N127-
♦ Ignition coil 3 with output
stage - N291-
♦ Ignition coil 4 with output
stage - N292-
❑ installing and removing
⇒ “1.2 Removing and in‐
stalling ignition coils with output stage”, page 282
5 - Bolt
❑ 8 Nm
6 - Bolt
❑ 8 Nm
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
1. Ignition system 281
