Manometer indicates the pump
pressure in bar
Pressure sensor controls the
water quantity by means of a
frequency converter and stops
the pump when the pressure is
too low (lack of water, pipe burst)
Fine filter 1 micron
Main switch
(Service switch)
Selection switch
Start manual mode
Stop
Start automatic mode
Safety valve
Opens at 60 °C
Water supply
For 3/4" hose
Solenoid valve
Tuns off the water when the
pump is stopped
Bleed screws
Prefilter 5 micron

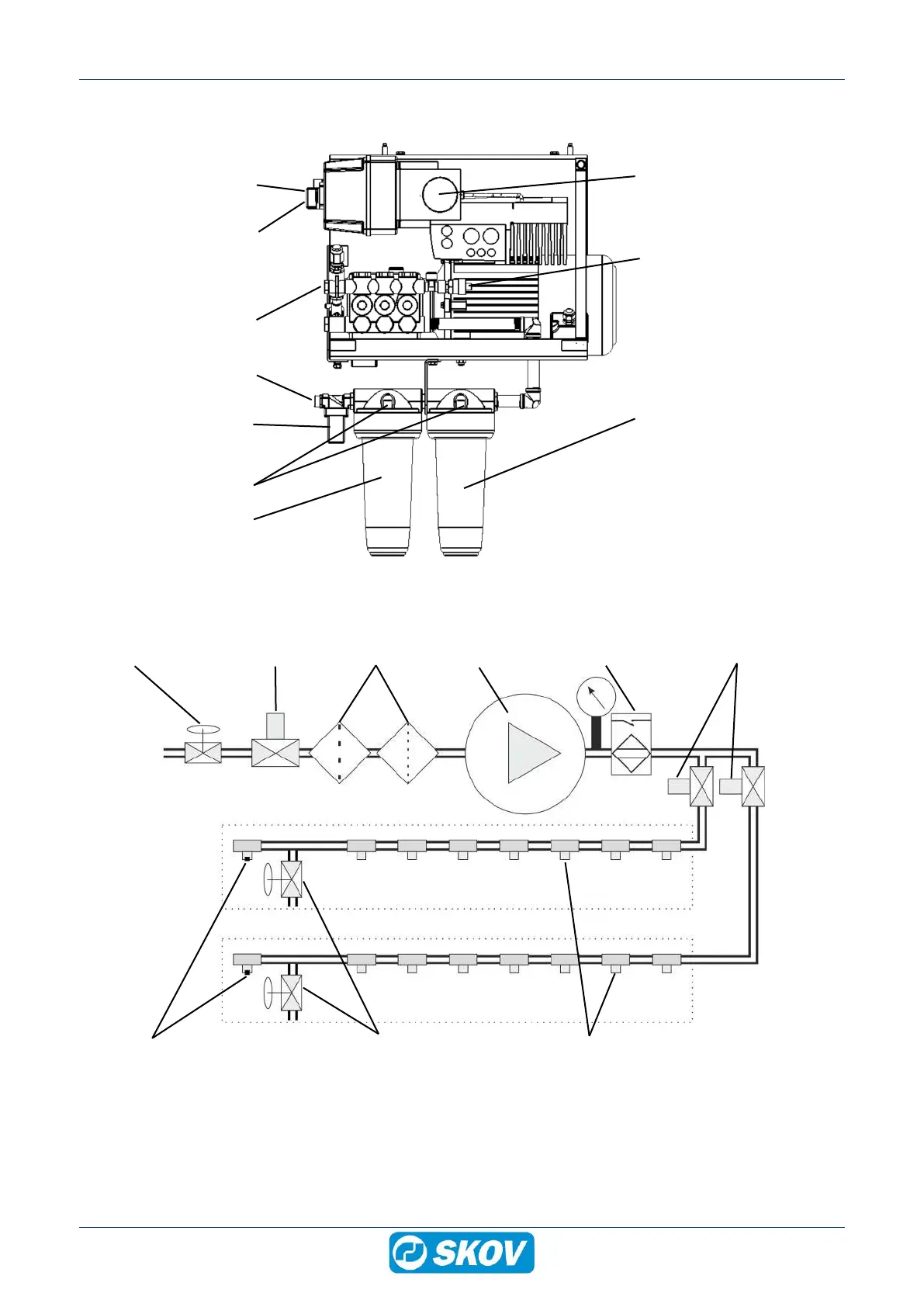

Stop valve (external) Solenoid valve Filters Pump Pressure sensor Section valves
Nozzles Drain ball valve FlexClamp nozzles
