3.4 Mounting the pump
If the system is to operate in the winter, it must not be placed so that parts of the system are exposed to
frost. If the system is out of operation in winter, drain the water when there is a risk of frost.
Place the pump:
• a frost-free and cool location, protected from sun and rain.
• at a distance of offices or other occupied rooms to avoid noise nuisances.
• so that the pipe installation is as simple as possible.
• close to an outlet to drain from the safety valve/thermo valve.
There must be sufficient space around the pump for retrofitting of additional filters and servicing.

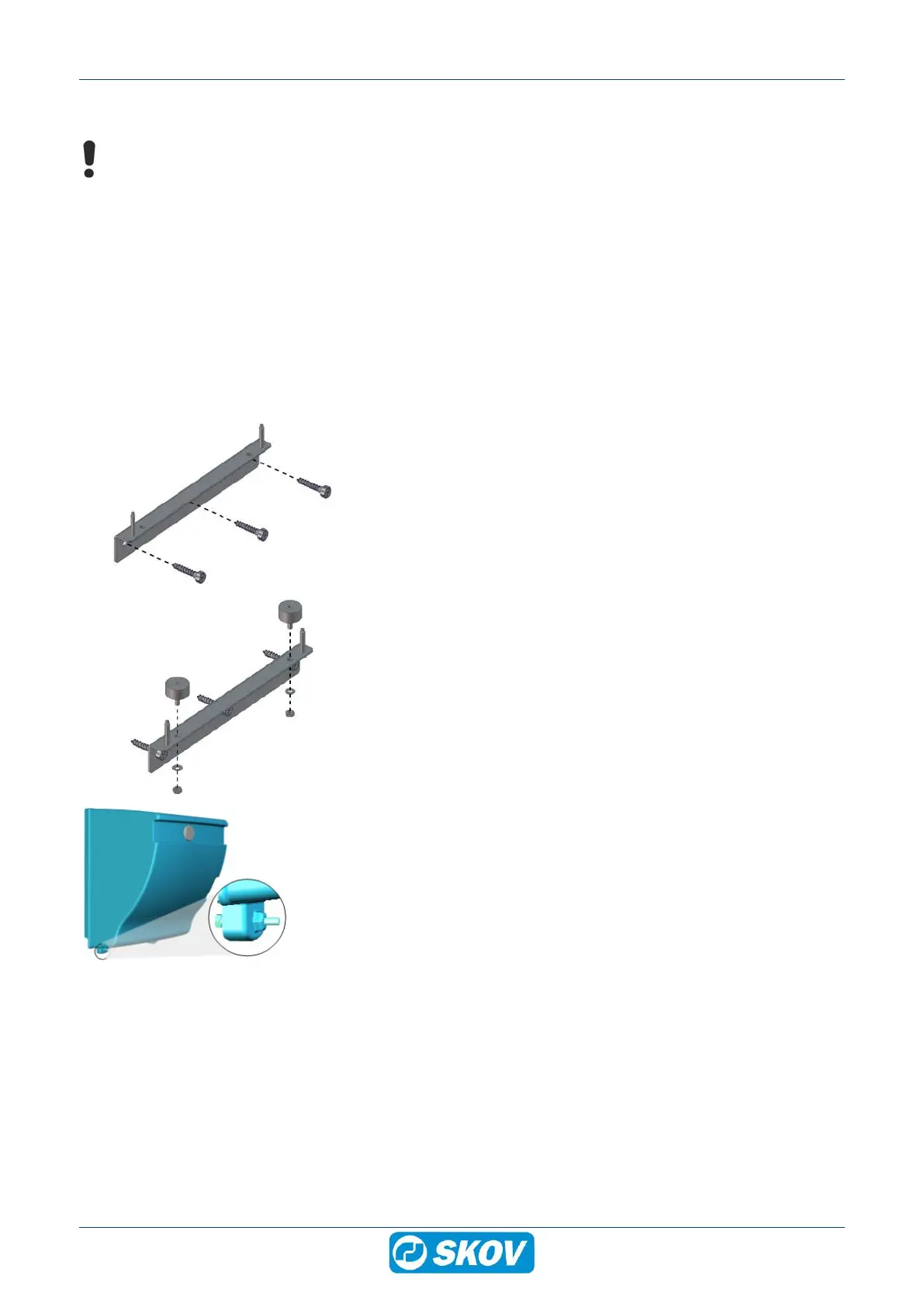

3.5 Wall mounting
Place the fitting horizontally at the place chosen. Drill 3x10 mm
holes and use expansion bolts or similar for mounting as re-
quired by the conditions.
Place the pump unit on the bracket and fasten with screws.
Mount vibration absorbers on the bracket.
Place the cabinet on the two pins and adjust by means of the
nuts on top and screws at the bottom until the manometer is in
the center of the hole.
