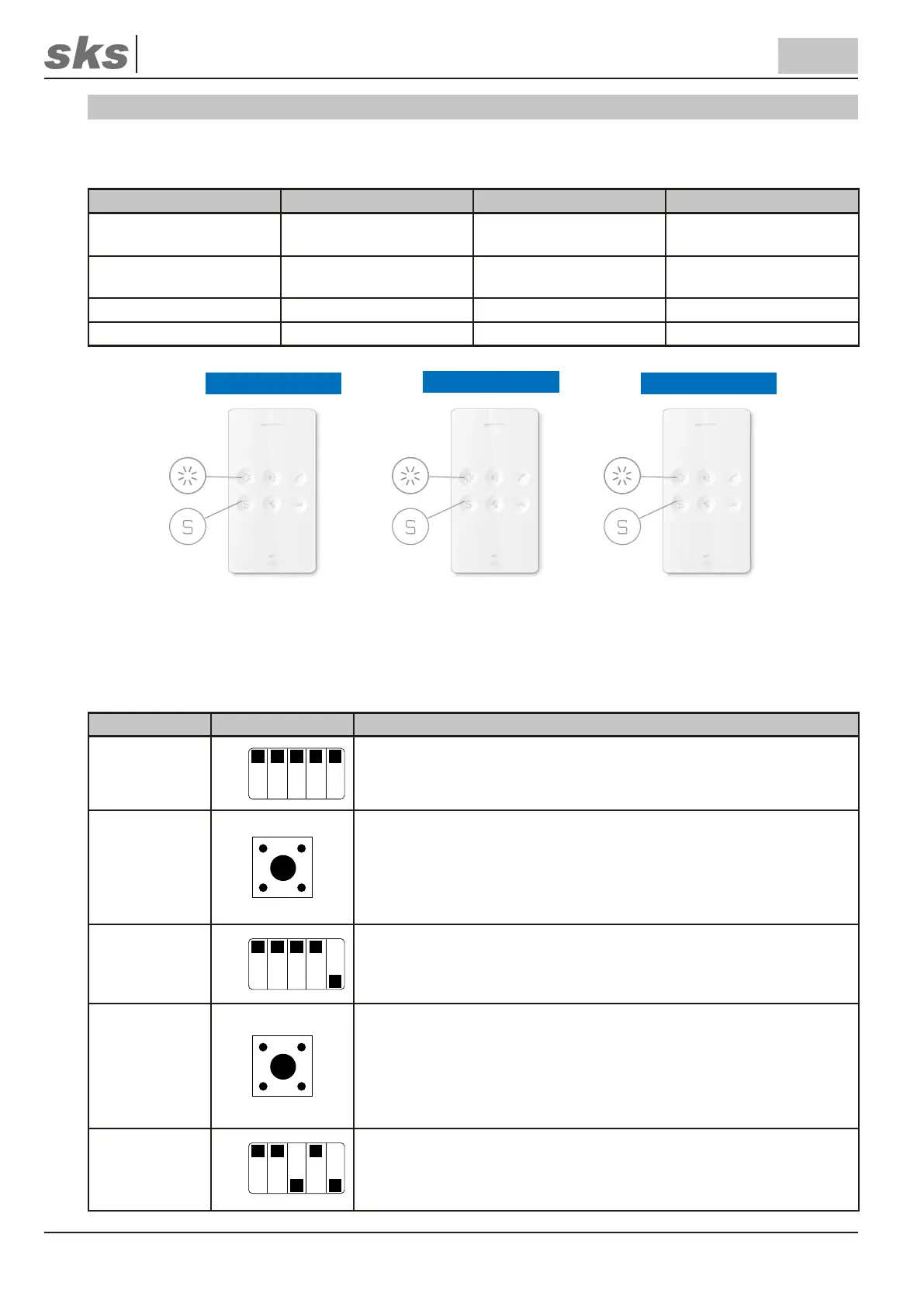

8.4.3 Example
There are three indoor stations which are supposed to communicate with the door station AND with each other.
Thus the following programming is necessary:
Storage location Indoor station 1 Indoor station 2 Indoor station 3
Position 1 in the indoor
station’s storage space
A1 A2 A3
Position 2 in the indoor
station’s storage space
B1 B2 B3
S-key B2 B1 B2
Light key B3 B3 B1
Calls B3
Calls B2
Calls B3
Calls B1
Calls B1
Calls B2
Indoor station1
Indoor station 2
Indoor station 3
Main call address A1
Internal call address B1
Main call address A2
Internal call address B2
Main call address A3
Internal call address B3
To program indoor station 1 in full the following steps are necessary:
Step Image Description
1
A1
Set DIP switch to the main call address (= 1st position in your storage
space, in our example from above A1), this responds to the referring bell
button at the door station.
2
Keep hold of the programming button at the back of the device for ve
seconds until you hear a signalling tone.
After this signalling tone another, shorter tone will be played signalling
that programming the rst call address has been successful (storage
location no. 1).
3
B1
Set the DIP switch to the internal receiving address (= 2nd position in your
storage space, in the example above B1), which responds to internal
calls sent to the indoor station and is sent from indoor station 1 as its
device ID to the other indoor stations.
4
Keep hold of the programming button at the back of the device for ve
seconds until you hear a signalling tone.
After this signal tone another two sounds are audible when the second
call address is programmed to indicate that this call address has been
saved in the second internal storage location.
5
B2
Set the internal call address (= internal call address of indoor station 2,
saved on the S-key, in the example above B2) at the DIP switch. This will
be called by indoor station 1 when the respective key is operated.
