Step Description
6 Keep hold of the programming button at the back of the device for ve seconds
until you hear a signal tone.
7 After this signal tone you will hear two more short tones when programming the second call
address, three for the third and four for the forth address programmed, so that you know
exactly which call address has been saved in which position (1 to 4) on your storage space.
8 To program further call addresses repeat steps 5 to 7. If you try to program more than four
call addresses this will be refused and signalled by a respective tone.
Attention
We do highly recommend to change the DIP switch back to the indoor station’s main
call address (i. e. the rst address programmed), so that it can easily be recognized
which bell button belongs to which indoor station in case of a breakdown.
A maximum of four call addresses can be programmed into an indoor station. In case call
addresses need to be changed all addresses that have been programmed into the indoor
station have to be deleted.

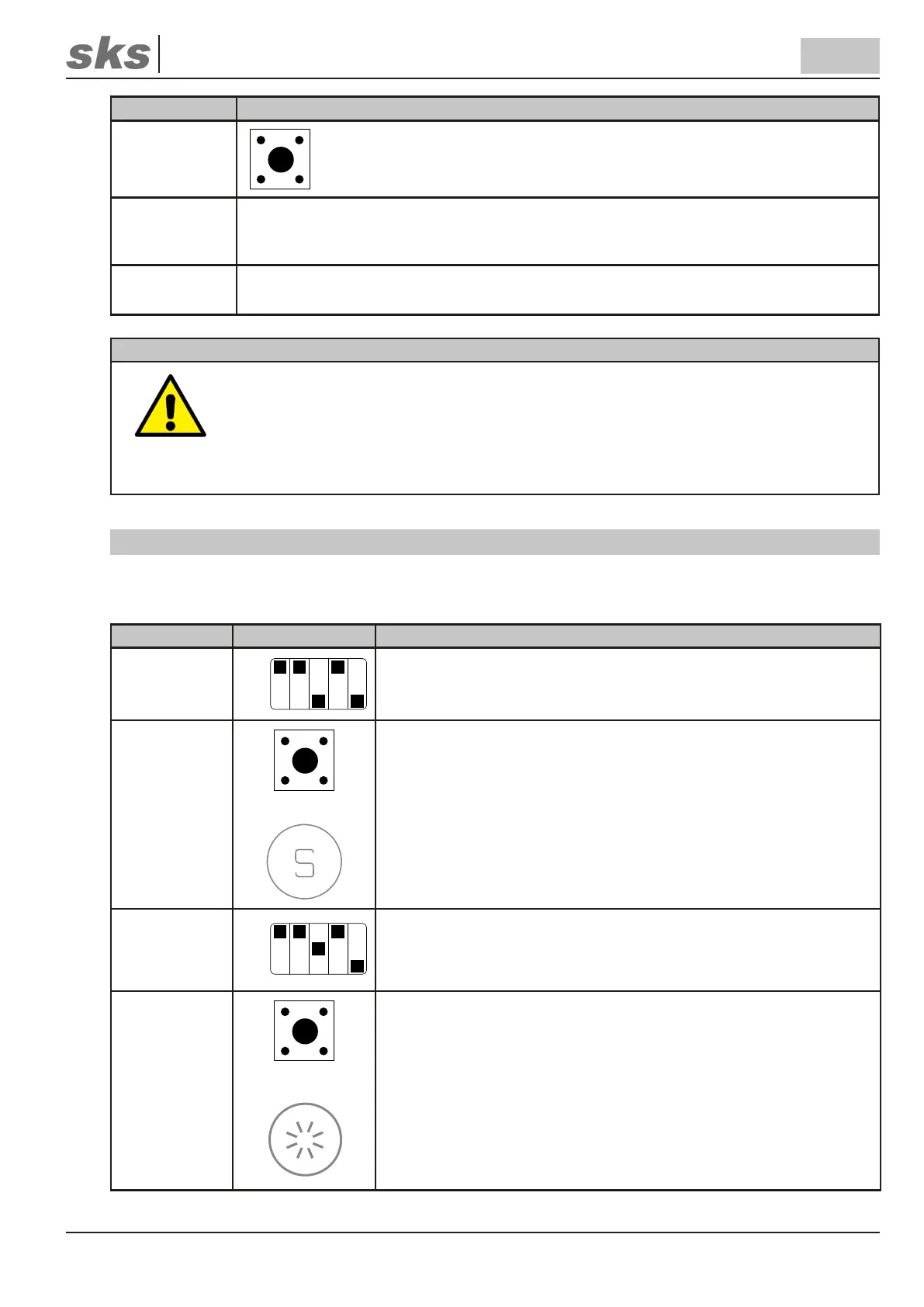

8.4.2 Internal call addresses that are called from the indoor station
To be able to call other indoor stations in the same system (internal or group call) their internal call addresses have
to be programmed into the S- or light key of the indoor station. To do so follow these steps:
Step Image Description
1
B2
Set the internal call address (= internal call address of indoor station 2,
in the example above B2) at the DIP switch. This will be called by indoor
station 1 when the respective key is operated.
2
+
Keep hold of the programming button on the back of the device and also
keep hold of the S-key within two seconds. Hold both keys at the same
time for 5 seconds until a signal tone is heard. Thus the S-key has been
assigned to the internal call address B2, i. e. when pushing the S-key,
indoor station 2 will be called.
3
B3
Set the DIP switch to the internal call address of indoor station 3 (in the
example above B3), which will be called by indoor station 1 when the
respective key is operated.
4
+
Keep hold of the programming button at the back of the device and, with-
in two seconds, also keep hold of the light key. Keep hold of both keys
for ve seconds until you hear a signal sound.
Thus the light key has been assigned to the internal call address B3, i. e.
when the light key is operated indoor station 3 will be called.
