SKS-Kinkel Elektronik GmbH
20002110 BS2012 Audio Hands-free
EN
Support Hotline: +49 (0) 2661 98088-112
Support E-Mail: support@sks-kinkel.de
Version No. 3.0
Document No. 97000104
24

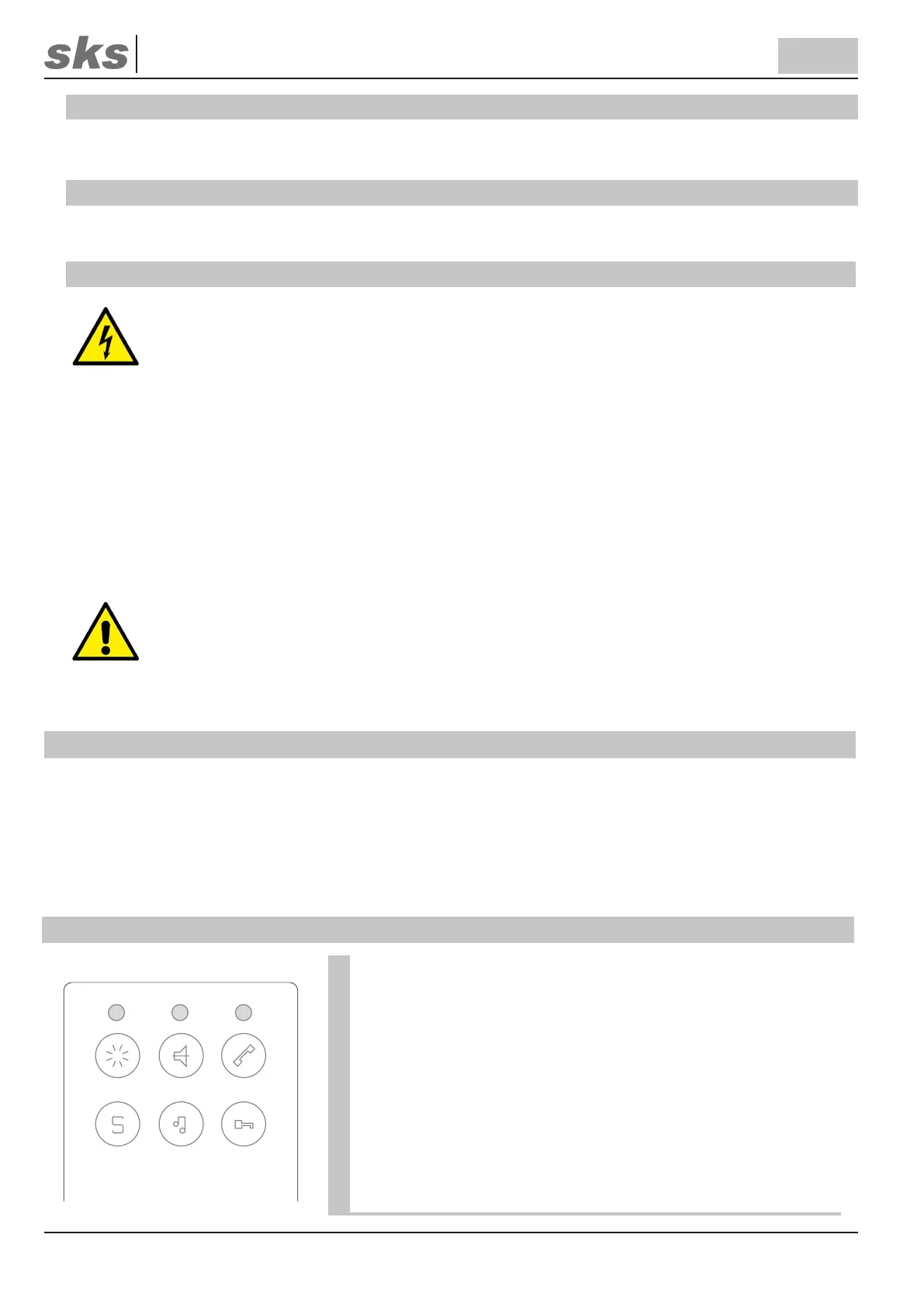

2.5 Care instructions
Just clean the device unit with a soft cloth, moistened with a mild soap solution. Dry cleaning, aggressive detergents
and abrasives may damage the surface.
2.6 Modification
A modication (alteration or conversion) of the BS2012 Audio Hands-free Indoor station is not allowed
2.7
Safety
Electrical shock hazard to persons. Danger of burns, damage to device and malfunctions.
VDE 0100 and VDE 0800 guidelines must be complied during installation. (Germany)
Counter measures:
3 Before beginning any work, deactivate and disconnect all energized electrical wires.
3 Secure the switched o/disconnected lines against erroneous reconnection.
3 Use a measuring device to make sure that the wires are de-energized.
3 Cover up any adjacent, energized or conducting components.
3 All work and all electrical connections must comply with the national provisions for the country in question and
must be performed by appropriately trained personnel.
Mounting, installation, reparation and initial setup must be carried out by qualied elec-
tricians only! When working on systems with 230 V alternating voltage the safety require-
ments of DIN VDE 0100 must be complied with.
The SKS planning guide (can be downloaded from www.sks-kinkel.de) must be followed during installation!
3 General information on the 2-wire Video BUS
✓ The loop resistance from the distribution towards the indoor station can have a maximum of 8Ω.
✓ From the distribution to the door station the loop resistance must not be higher than 6Ω.
✓ The BUS voltage must be between 19 and 26 V.
✓ For the BUS lines and also for all other functions shown twisted pair cables should be used. We do recom-
mend JY(St) Y in 0,8 mm
2
. If needed the shield must be grounded statically.
4 Signalling
321
LED 1: Key touch recognized
LED 2: Ringtone switched o
LED 3: Optical signalling of calls
