sks BS2012 Installation Instructions

SKS-Kinkel Elektronik GmbH
20002110 BS2012 Audio Hands-free
EN
Support Hotline: +49 (0) 2661 98088-112
Support E-Mail: support@sks-kinkel.de
Version No. 3.0
Document No. 97000104
26

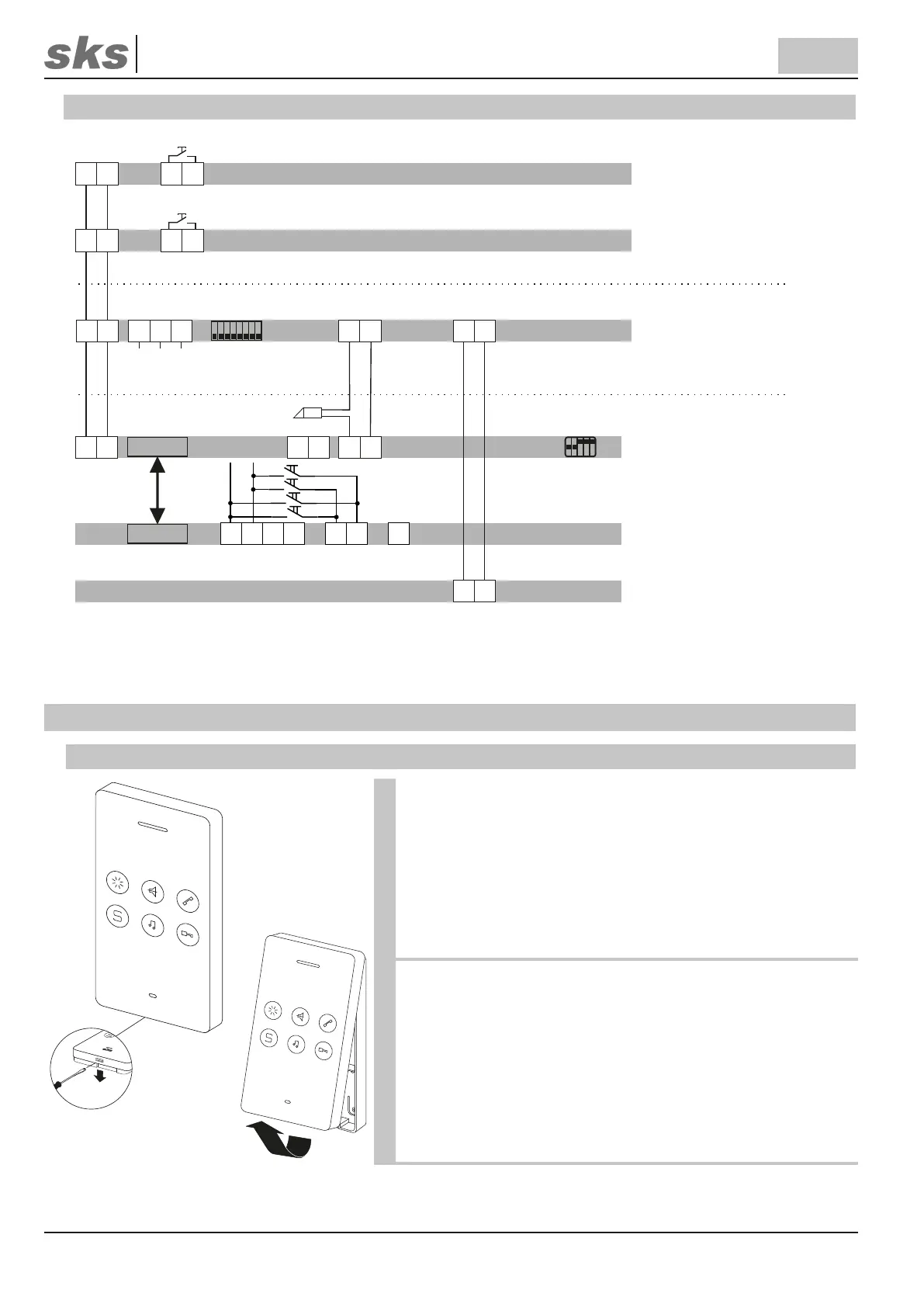

6.2 Wiring plan
Keymatrix
LED illumination
Indoor stations
BS2012 Audio
a
b
E+ E-
BS2012 Audio
a
b
E+ E-
Basis compact
power supply
300089
TÖ
L M T
a+
b-
+
0
-
B
A
D
C
2
1
12
...
Flat ribbon
Flat ribbon
~12 ~12
T
LED
a+
b-
TÖ1
PE
~230V AC
+5%/-10%
L N
TÖ2
LED
-
+
on
off
1
DistributionDoor station
Control module
300026
7 Mounting instructions
7.1 Preparation
Use a screwdriver to release the indoor station from its supporting
frame. This is done by inserting the screwdriver into the release
opening at the bottom of the indoor station.
Carefully remove the indoor station from the support frame as
shown in the drawing.
Pull the lower part of the BS2012 Audio Hands-free Indoor station
towards you and carefully lift it upwards.
