Type CAN modules
Airow unit (SC450)
CAN and
Analogue
Analog sensor unit (SC408)
Sensors are shown on p.3-4

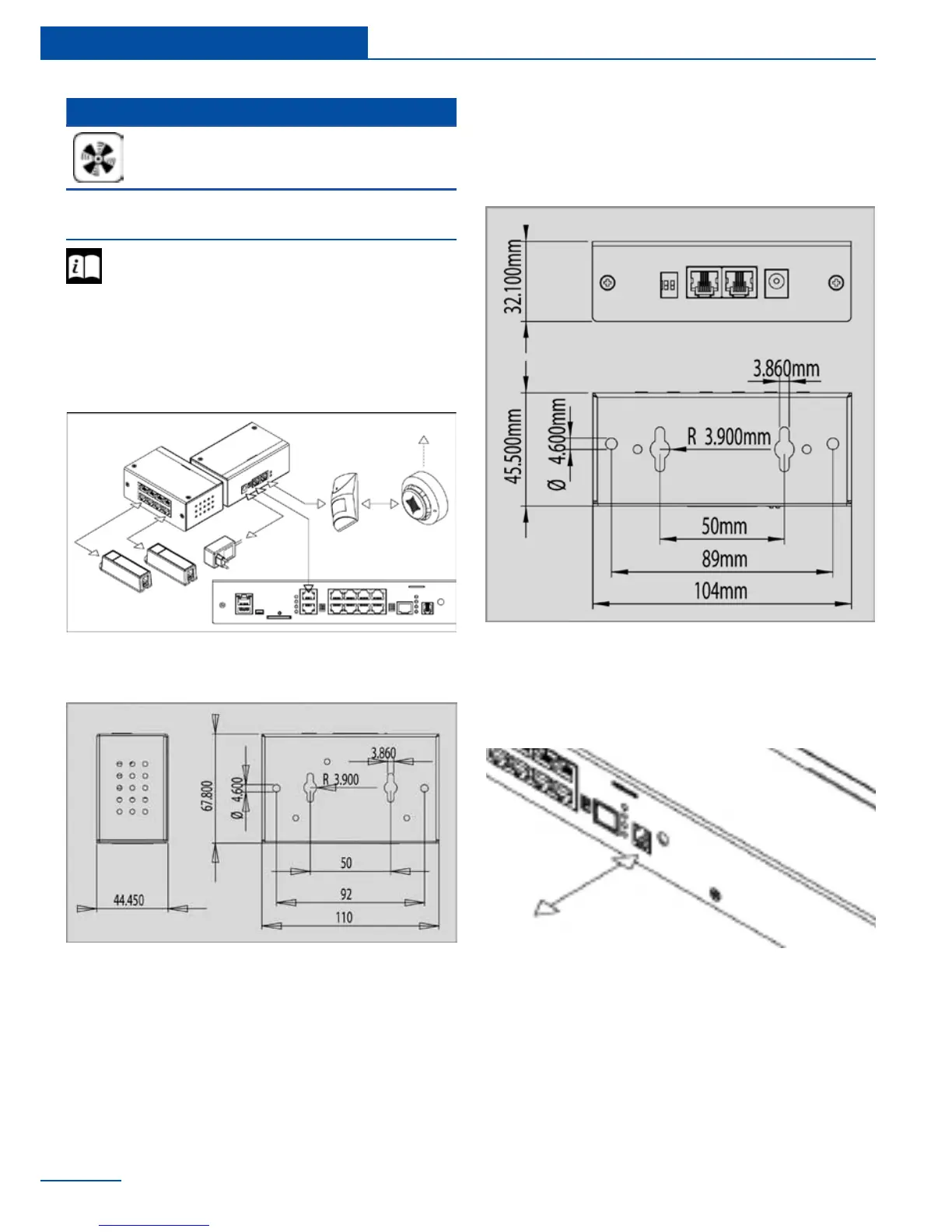

SC408 sensor extension unit
installation
General connection diagram:
Dimensions for wall mounting:
Dimensions for wall mounting:
General connection diagram p.19
SC450 airow and temperature unit
installation
Connecting 1-Wire reader
I-Touch or 1-Wire Proximity readers can be con-
nected to the port “1-Wire” using RJ9 (4P4C)
connector. The reader is determined automati-
cally. Only SC8100 and SC8110 have “1-Wire”
port.
Check the PCB. DIP switch 2 should be in “ON”
position.
18
Installation
