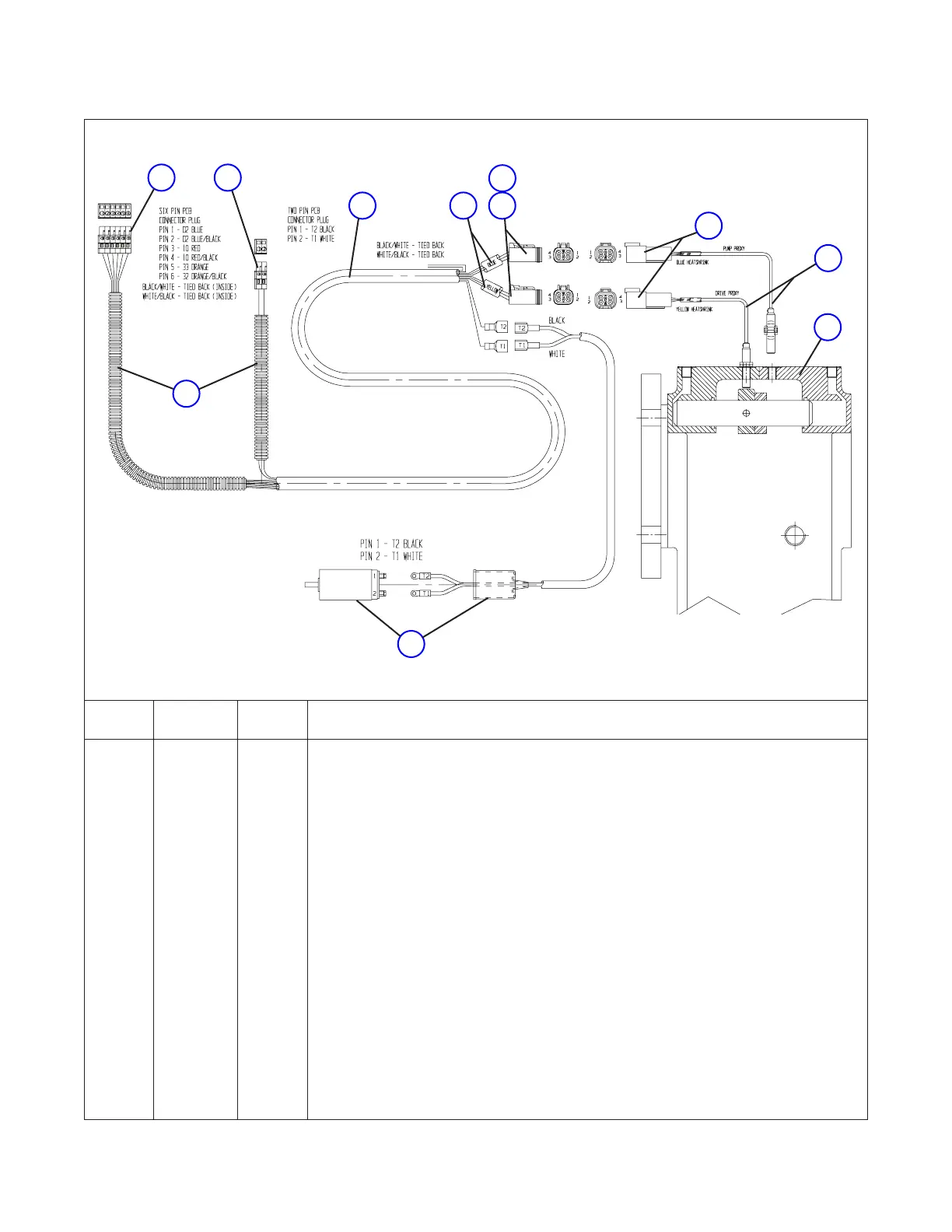

Skyjack SJ 8831E - Figure 6.6-4. Proximity and Tachometer Harness

SECTION 6, Page 110 SJ-800 Series E Battery Powered
119153
PUMP PROXY
PIN 1 - 10 BROWN
PIN 2 - 02 BLUE
PIN 3 - 32 BLACK
PIN 4 - N/U
DRIVE PROXY
PIN 1 - 10 BROWN
PIN 2 - 02 BLUE
PIN 3 - N/U
PIN 4 - 33 BLACK
Index
No.
Skyjack
Part No.
Description Qty.
ML1F-1063AA
Figure 6.6-4. Proximity And Tachometer Harness
1 (Ref.) - GENERATOR ASSEMBLY
- (For Components, Refer to Figure 6.3-7)
2 (Ref.) - GEARBOX ASSEMBLY
- (For Components, Refer to Figure 6.3-8)
3 116758 2 SWITCH, Proximity (pump/drive)
4 119130 2 KIT, 4 Pole Receptacle
5 120337 1 HARNESS, Proximity/Tachometer
6 119131 2 •KIT,4PolePlug
7 120355 1.5” •HEATSHRINK,3/16”Yellow
  120356 1.5” •HEATSHRINK,3/16”Blue
8 102888 96” •CABLE,16/10
9 119894 1 •CONNECTOR,PCBoard2Pin
10 119898 1 •CONNECTOR,PCBoard6pole
11 120748 28” •PROTECTION,1/2”Cable
11
10 9
8 7 6
5
2
1
4
3
