SECTION 6, Page 111SJ-800 Series E Battery Powered
119153
Index
No.
Skyjack
Part No.
Description Qty.
ML1F-1070AA

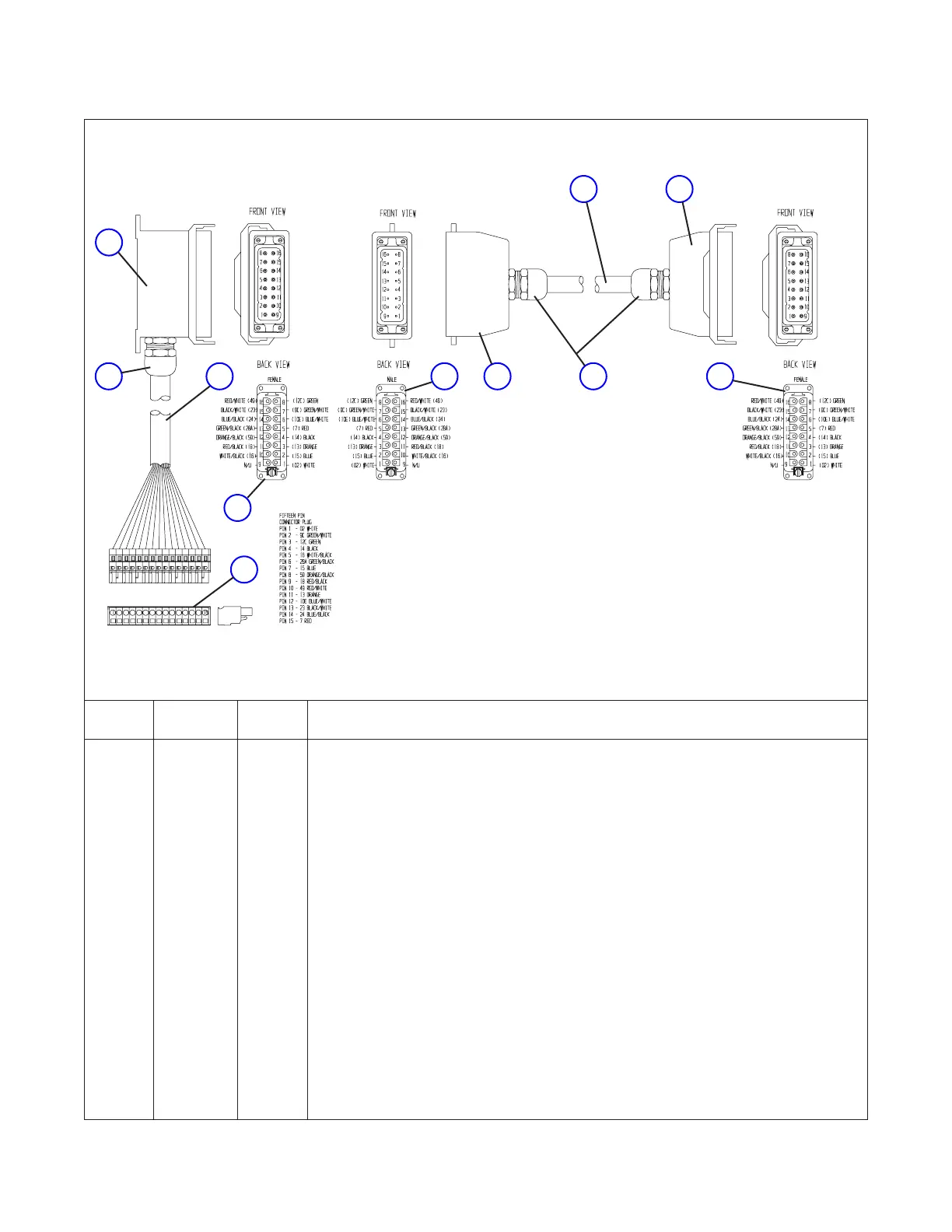

Figure 6.6-5. Control Cable Harnesses
1 120370 1 CABLE ASSEMBLY, Scissor control (Model 8831)
120074 1 CABLE ASSEMBLY, Scissor control (Model 8841)
  102887 648” •CABLE,16/15(Model 8831)
  102887 768” •CABLE,16/15(Model 8841)
 2 119360 1 •HOUSING,16PoleFemale
 3 114467 1 •INSERT,16PoleFemale
 4 120644 2 •CONNECTOR,StrainRelief
 5 119359 1 •HOUSING,16PoleMale
 6 114469 1 •PLUG,16PoleMale
7 120069 1 HARNESS, Panel Control
  102887 42” •CABLE,16/15
 8 120065 1 •COUPLING,Base
 9 120644 1 •CONNECTOR,StrainRelief
 10 114467 1 •INSERT,16PoleFemale
 11 119907 1 •CONNECTOR,PCBoard
11
10
9
8
7 6 5
21
4 3
