Skyjack SJ 8831E - Figure 6.1-8. Powered Extension Platform Control Box Assembly

SECTION 6, Page 21SJ-800 Series E Battery Powered
119153
Index
No.
Skyjack
Part No.
Description Qty.
M1006AA

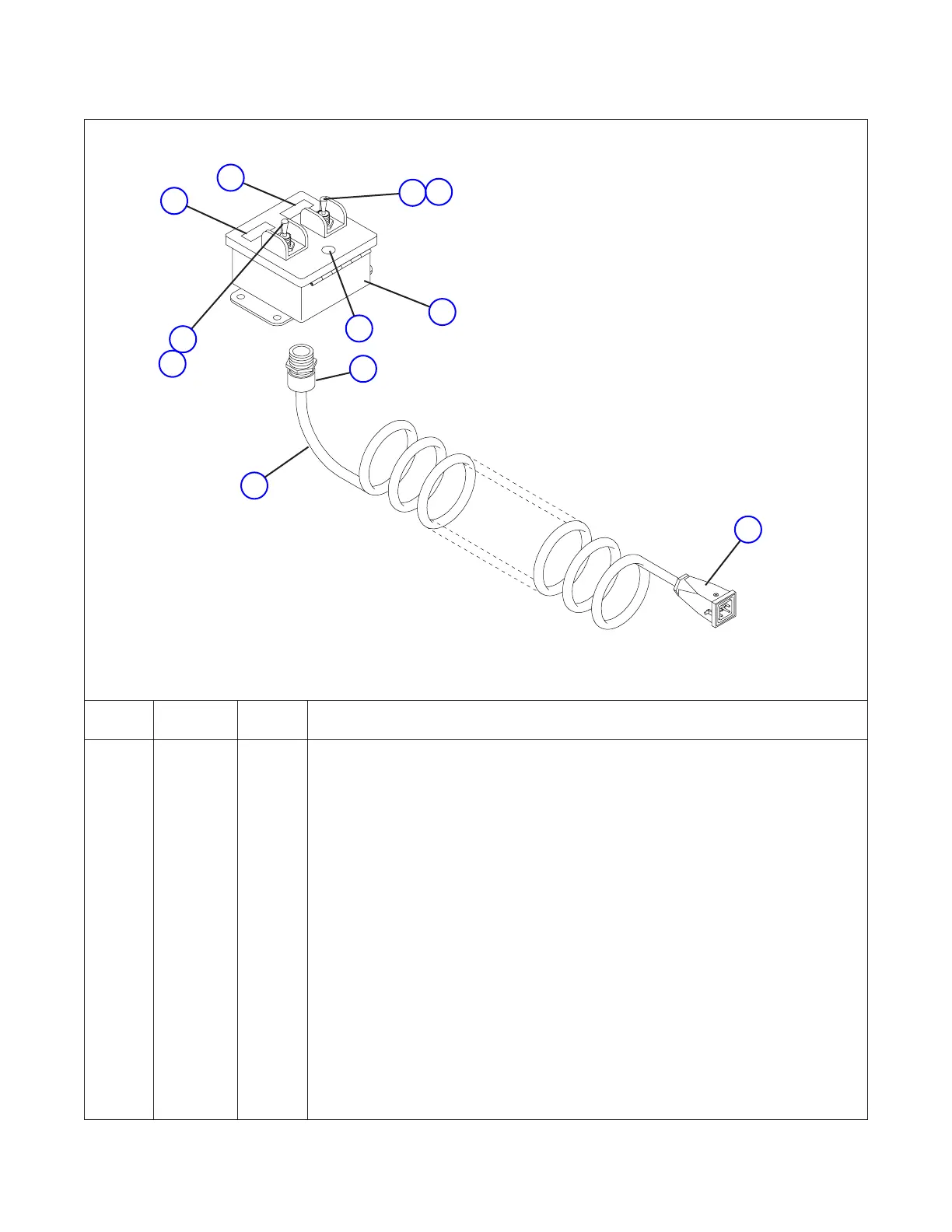

Figure 6.1-8. Powered Extension Platform Control Box Assembly
A 115592 - CONTROL BOX ASSEMBLY, Powered ext. platform
1 115539 1 •BOX,Control
2 103041 1 •STRAINRELIEF,Straight1/2”
3 106401 AR •CORD,Coiled18/3
4 107712 1 •CONNECTORASSEMBLY,5polemale
  103567 1 ••HOUSING,Base
  103569 1 ••INSERT,Male
5 108328 1 •LABEL, Platform extend/retract
6 102853 2 •SWITCH,Toggle
7 111181 2 •GUARD,Toggleswitch
8 115594 1 • LABEL, Enable
9 114377 1 •PLUG,Plastic1/2”
