SECTION 6, Page 19SJ-800 Series E Battery Powered
119153

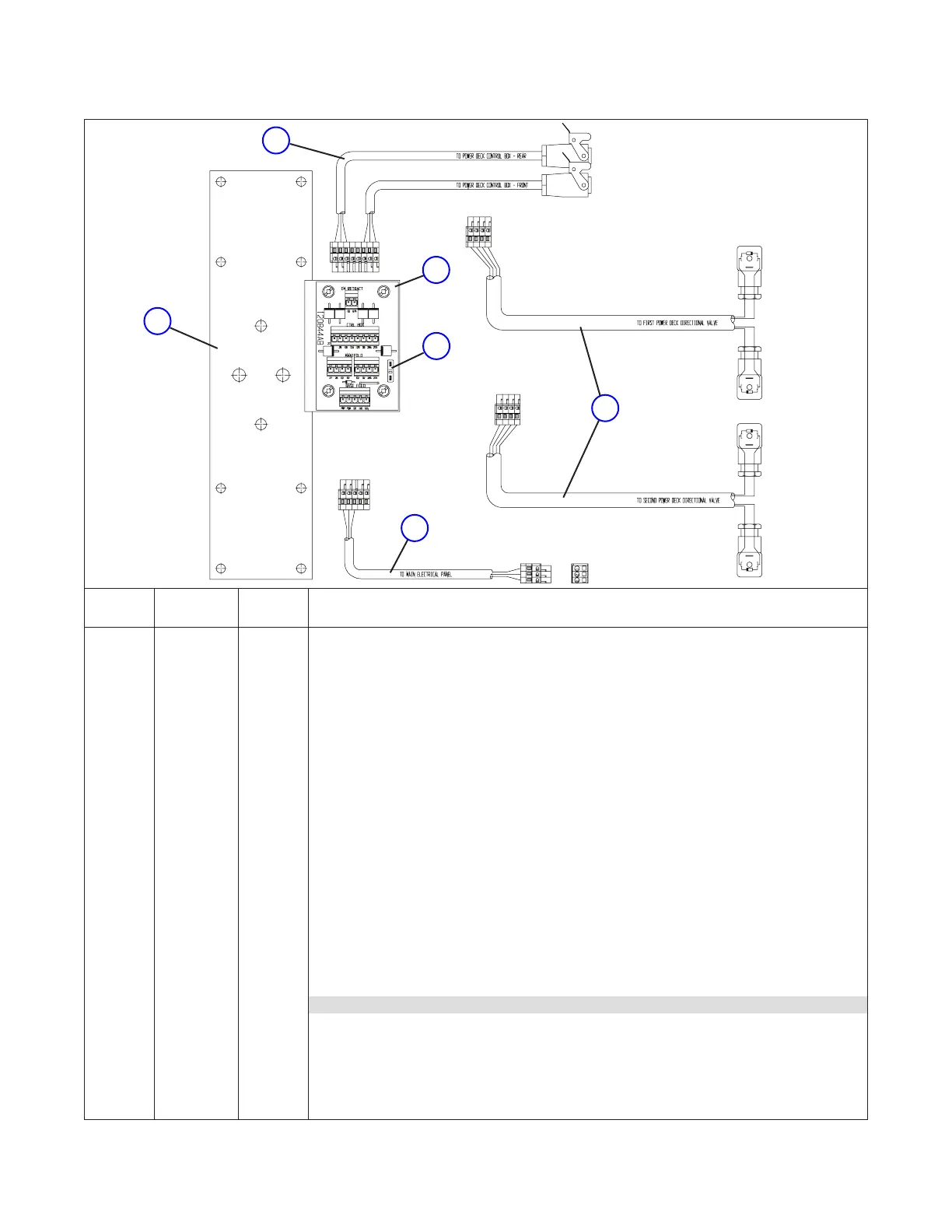

Figure 6.1-7B. Powered Extension Platform Electrical Panel
(Model 8831 with Serial No. 36902 and Above) (Model 8841 with Serial No. 41893 and Above)
Index
No.
Skyjack
Part No.
Description Qty.
A (Ref.) - SINGLE POWERED EXTENSION PLATFORM
B (Ref.) - DOUBLE POWERED EXTENSION PLATFORMS (Shown)
1 120844 1 BOARD, Power Deck PC
2 122178 1 HARNESS, Power Deck Control box, A
122179 1 HARNESS, Power Deck Control box, B
  119900 1 •PLUG,8PinPCBoardConnector
  103257 AR •CABLE,Cabtire18/3(180”long)
  107711 AR •CONNECTOR,Cabtire5PinFemale
  103568 1 ••HOUSING,Base
  103570 1 ••INSERT,Female
3 120658 1 FUSE, 10A
4 122189 1 HARNESS, Power Deck Directional Valves, A
122190 1 HARNESS, Power Deck Directional Valves, B
  119896 AR •PLUG,4PinPCBoardConnector
  119825 AR •CONNECTOR,Solenoid
  111354 AR •PROTECTOR,3/8”Wire
5 122192 1 HARNESS, Power Deck To Main Panel (Model 8831)
124353 1 HARNESS, Power Deck To Main Panel (Model 8841)
Use Part #122188 for Machines with Serial #42302 and Below.
  119897 1 •PLUG,5PinPCBoardConnector
  119895 1 •PLUG,3PinPCBoardConnector
  103257 588” •CABLE,Cabtire18/3(Model 8831)
  103257 756” •CABLE,Cabtire18/3(Model 8841)
6 122186 1 BRACKET, Power Deck PC Board and Valve
6
5
4
3
2
1
M1020AA
