Skyjack SJ 8831E - Figure 6.1-12. Air Hose to Platform Option

SECTION 6, Page 33SJ-800 Series E Battery Powered
119153
M1017AA

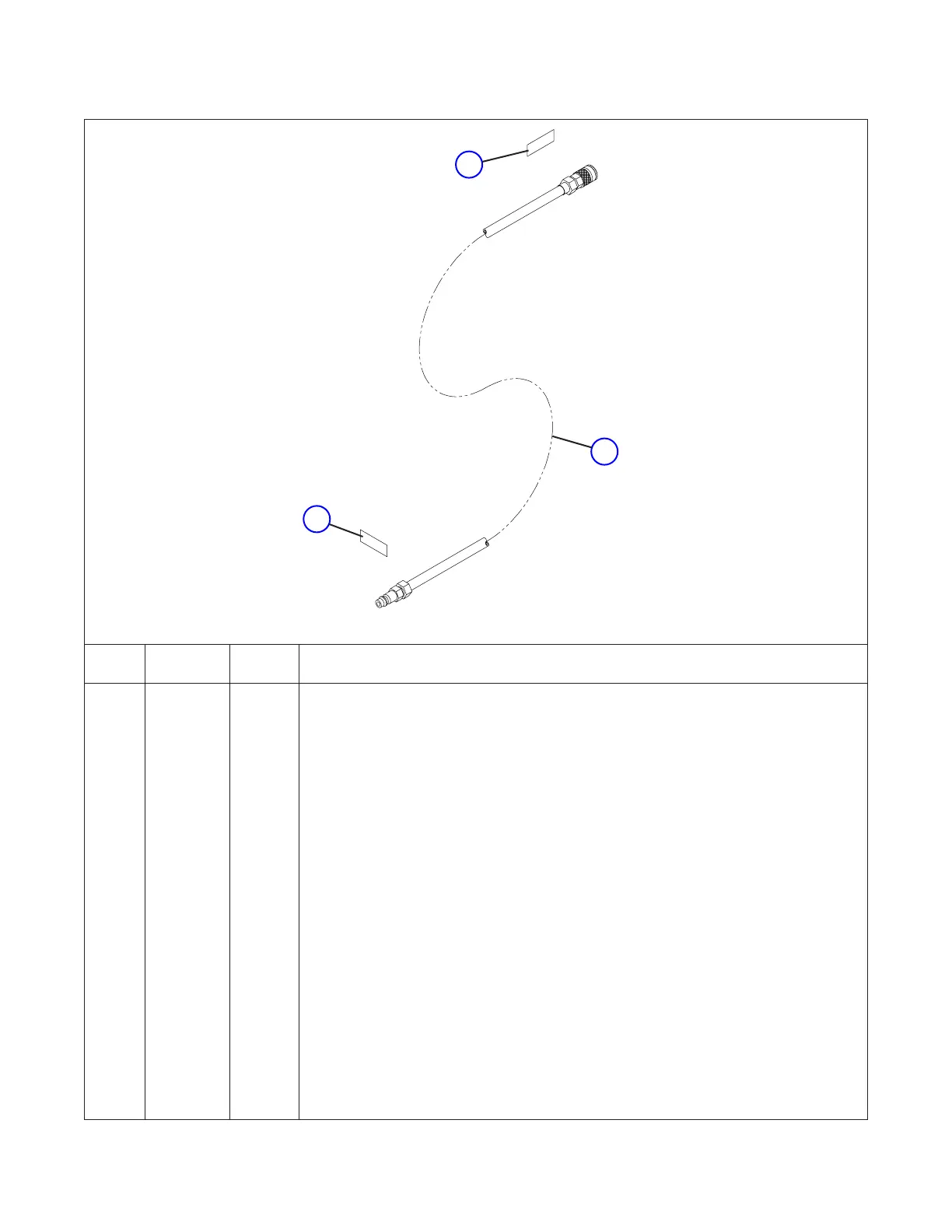

Figure 6.1-12. Air Hose To Platform Option
A 116374 - AIR HOSE TO PLATFORM (Model 8841)
B 124177 - AIR HOSE TO PLATFORM (Model 8831)
1 (Ref.) 1 HOSE ASSEMBLY, Air to platform
  107882 1 •FITTING,Femaledisconnect
  107883 1 •FITTING,Maledisconnect
  107884 840”lg. •HOSE,Air1/2”Dia. A
  107884 720”lg. •HOSE,Air1/2”Dia. B
  109050 2 •FITTING,Hosebarb
  107886 2 •CLAMP,Hose
102891 AR STRAP, Tie 7” lg.
102893 AR STRAP, Tie 10-1/2” lg.
2 107887 2 LABEL, Connect air here
2
1
2
Index
No.
Skyjack
Part No.
Description Qty.
