SECTION 6, Page 32 SJ-800 Series E Battery Powered
119153

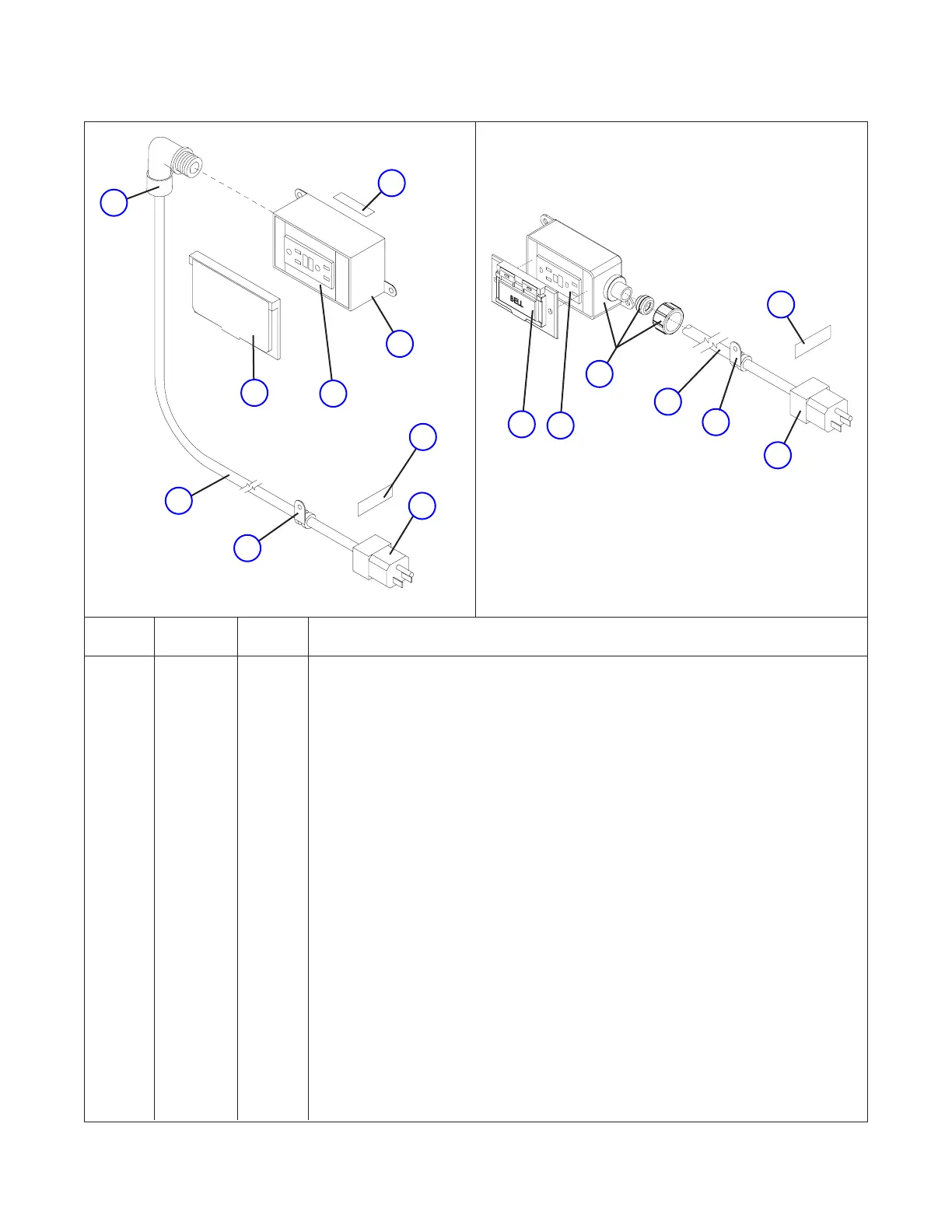

Figure 6.1-11. AC Outlet On Platform
A 113257 - 110V AC OUTLET ON PLATFORM - Model 8831 (ANSI/SIA and CSA)
B 113256 - 110V AC OUTLET ON PLATFORM - Model 8841 (ANSI/SIA and CSA)
C 117548 - 220V AC OUTLET ON PLATFORM - Model 8831 (CE)
D 117549 - 220V AC OUTLET ON PLATFORM - Model 8841 (CE)
1 131999 1 BOX, G.F.C.I. Receptacle A & B
  132042 2 • RIVET,Pop(1/4”Dia.)
2 109698 1 RECEPTACLE, 125V G.F.I. A & B
3 109699 1 PLATE, Weatherproof cover, A & B
4 104208 1 PLUG, 3-Prong male (15A/125V) A & B
5 103035 1 ELBOW, Strain relief (90°)
6 105269 1 CABTIRE (14/3 x 600” lg.) A
105269 1 CABTIRE (14/3 x 720” lg.) B
117542 1 CABTIRE (14/3 x 600” lg.) C
117542 1 CABTIRE (14/3 x 720” lg.) D
7 103024 1 CLIP, Cord
8 136328 1 BOX, Outlet with fitting
  134140 2 • RIVET,Openenddome(1/4”Dia.)
L (Ref.) - LABEL, AC outlet
(For components, refer to Figure 6.8-2)
