SECTION 6, Page 31SJ-800 Series E Battery Powered
119153
Index
No.
Skyjack
Part No.
Description Qty.
M10269AB

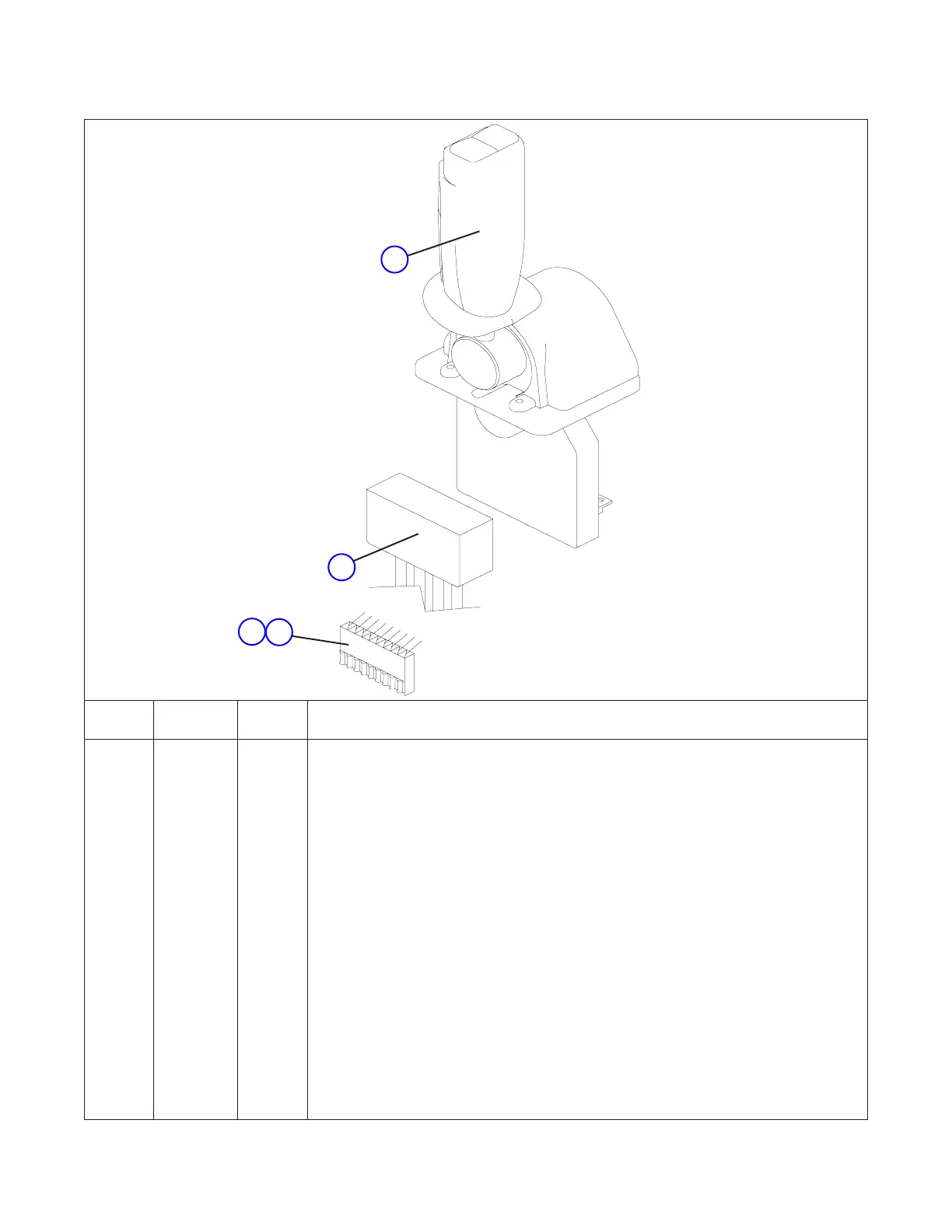

Figure 6.1-10B. Drive/Steer Controller Assembly
(Model 8831E with Serial No. 37315 and Above) (Model 8841E with Serial No. 42702 and Above)
1 127063 - CONTROLLER ASSEMBLY, Drive/steer
2 126469 2 •RELAY,DPDT24V
3 126488 1 •CONNECTOR,9-PinPCB
4 126489 9 •PINS,PCBconnectorcrimp
4
1
3
2
