Skyjack SJ 8831E - Page 95

SECTION 6, Page 30 SJ-800 Series E Battery Powered
119153
Index
No.
Skyjack
Part No.
Description Qty.
M1022AA

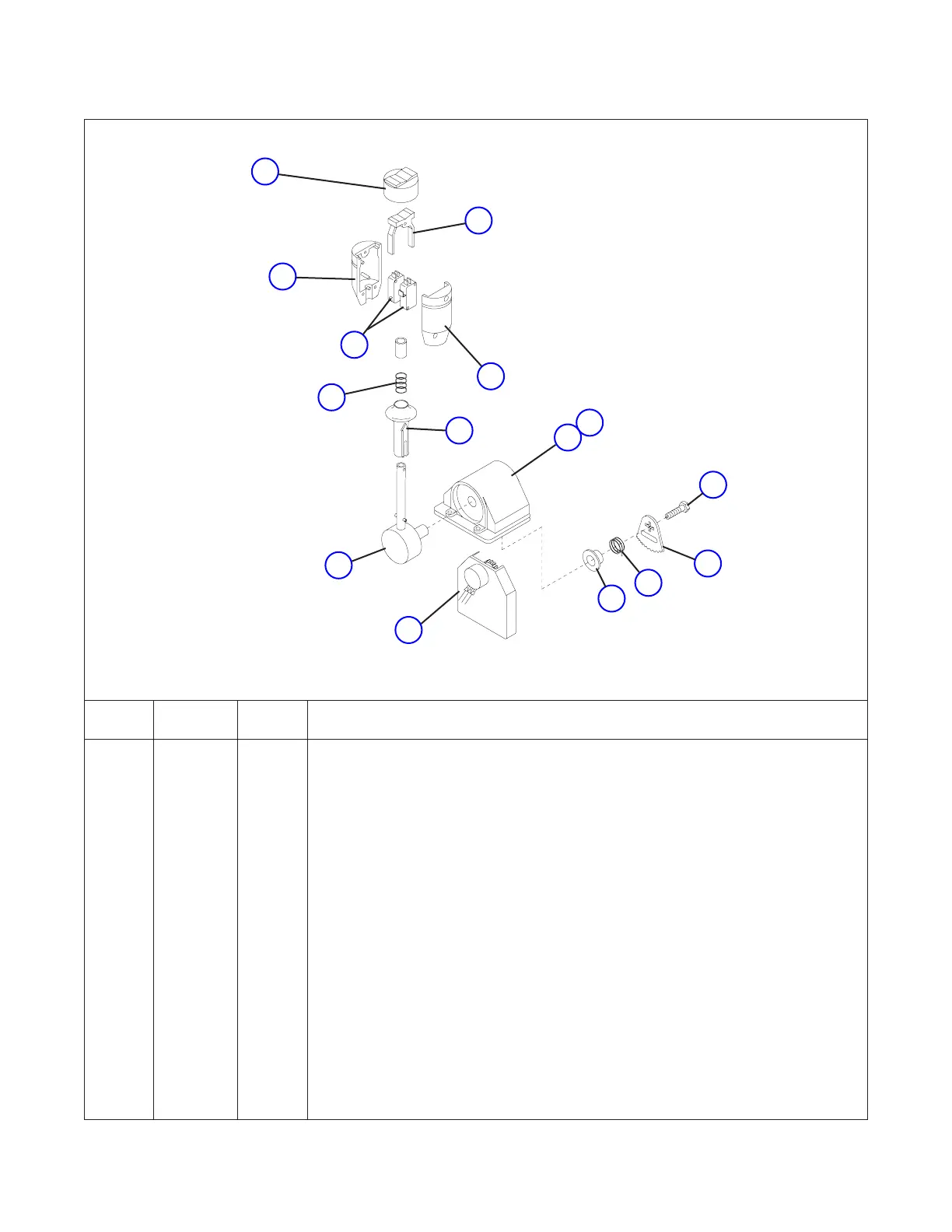

Figure 6.1-10A. Drive/Steer Controller Assembly
(Model 8831E with Serial No. 37314 and Below) (Model 8841E with Serial No. 42701 and Below)
A 119371 - CONTROLLER ASSEMBLY, Drive/steer
1 105735 1 •CAP,Elastic
2 105734 1 •ACTUATOR,Rocker
3 105733 2 •SWITCH,Directional
4 105738 2 •KNOBHALF
5 105737 1 •SPRING,Compression
6 105736 1 •SLIDELOCK
7 105378 1 •HANDLEEXTENSION
8 106729 1 •HOUSING
9 106730 1 •SPRING,Handlereturn
10 106725 1 •RATCHET
11 106726 1 •BUSHING,Spring
12 119142 1 •CIRCUITBOARD
13 106731 1 •SCREW,Hollow
14 110982 1 •GASKET,Housing
