Skyjack SJ 8831E - Page 86

SECTION 6, Page 18 SJ-800 Series E Battery Powered
119153

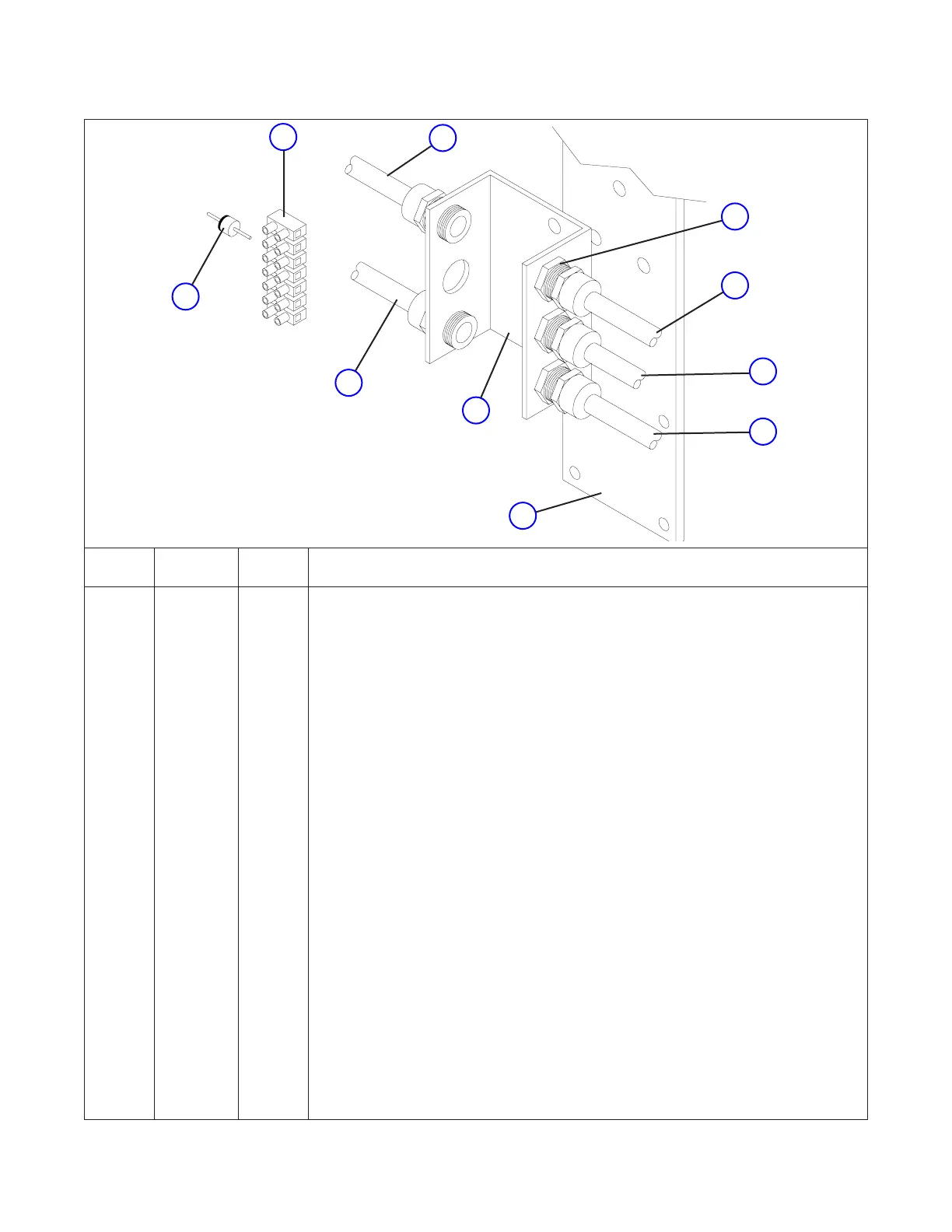

Figure 6.1-7A. Powered Extension Platform Electrical Panel
(Model 8831 with Serial No. 36901 and Below) (Model 8841E with Serial No. 41892 and Below)
Index
No.
Skyjack
Part No.
Description Qty.
M117362AA
1 103012 1 BLOCK, Terminal
  103955 2 •BOLT,Machine#6-32x3/4”lg.
  103985 2 •NUT,Machine#6-32
2 117362 1 PANEL, Powered platform electrical
  100397 2 •NUT,Hex-hd5/16-18
3 (Ref.) 1 CORD ASS’Y, Valve manifold (Machines with single extension platform)
  104345 1 •CONNECTOR,Gray
  104409 1 •CONNECTOR,Black
  115817 2 •DIODE,Flyback1amp400PIV
  103257 20”lg. •CORD,18/3
(Ref.) 2 CORD ASS’Y, Valve manifold (Machines with two extension platforms)
  104345 2 •CONNECTOR,Gray
  104409 2 •CONNECTOR,Black
  115817 2 •DIODE,Flyback1amp400PIV
  103257 20”lg. •CORD,18/3
4 (Ref.) 1 CORD ASSEMBLY, Front platform control box
  107711 1 •CONNECTORASSEMBLY,5Polefemale
  103257 180”lg. •CORD,18/3
5 (Ref.) 1 CORD ASSEMBLY, Rear platform control box
  107711 1 •CONNECTORASSEMBLY,5Polefemale
  103257 180”lg. •CORD,18/3
6 102921 AR DIODE, 6 Amp
7 103036 AR CONNECTOR, Strain relief
8 (Ref.) 1 CORD ASSEMBLY, Electrical panel
  103257 20”lg. •CORD,18/3
  119130 1 •KIT,4polereceptacleconnector
  119895 1 •CONNECTOR,3poleP.C.Board
9 116399 1 BRACKET, Power Deck Panel and Valve
8
7
6
5
4
3
2
1
3
9
