Skyjack SJ 8831E - Page 85

SECTION 6, Page 17SJ-800 Series E Battery Powered
119153
Index
No.
Skyjack
Part No.
Description Qty.
M1007AA

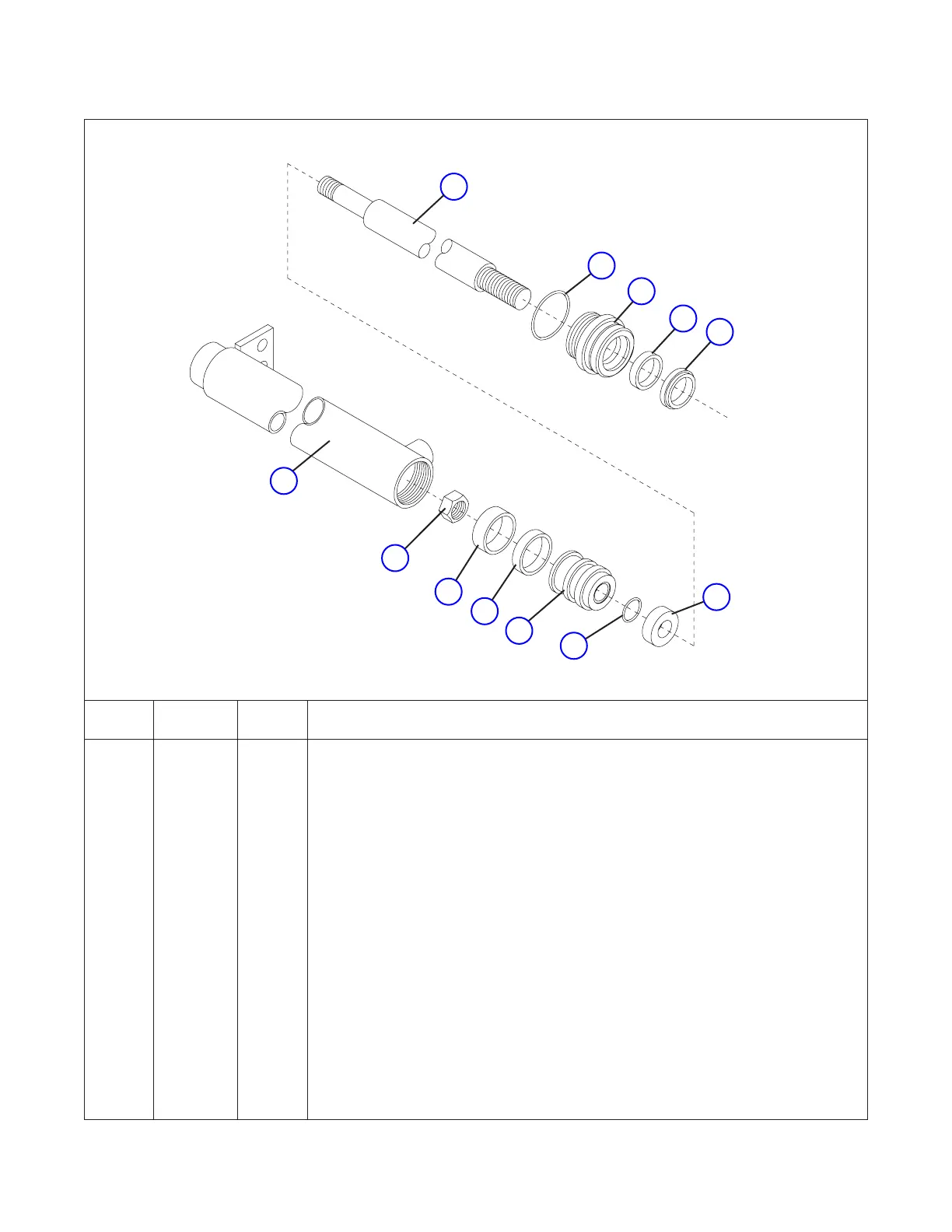

Figure 6.1-6B. Powered Extension Platform Cylinder Assembly
(Model 8831E with Serial No. 36840 and Above) (Model 8841E with Serial No. 41671 and Above)
A 120275 - CYLINDER ASSEMBLY, Extension platform
1 120271 1 •WELDMENT,Cylinderbarrel
2 120254 1 •GLAND,Cylinderend
*3 110976 1 •O-RING,Piston
*4 103825 1 •SEAL,Piston
*5 106452 1 •RING,Pistonwear
*6 106449 1 •WIPER,Rod
*7 108798 1 •SEAL,Rod
*8 120436 1 •O-RING,Gland
9 118089 1 •ROD,Piston
10 117942 1 •PISTON
11 103830 1 •NUT,Lock5/8”-11gradeC
12 116069 1 •SPACER,StopTube
* 107396 AR KIT, Seal Repair
* Part of Seal Repair Kit
