Skyjack SJ 8831E - Page 192

SECTION 6, Page 136 SJ-800 Series E Battery Powered
119153
Index
No.
Skyjack
Part No.
Description Qty.
M10983AA

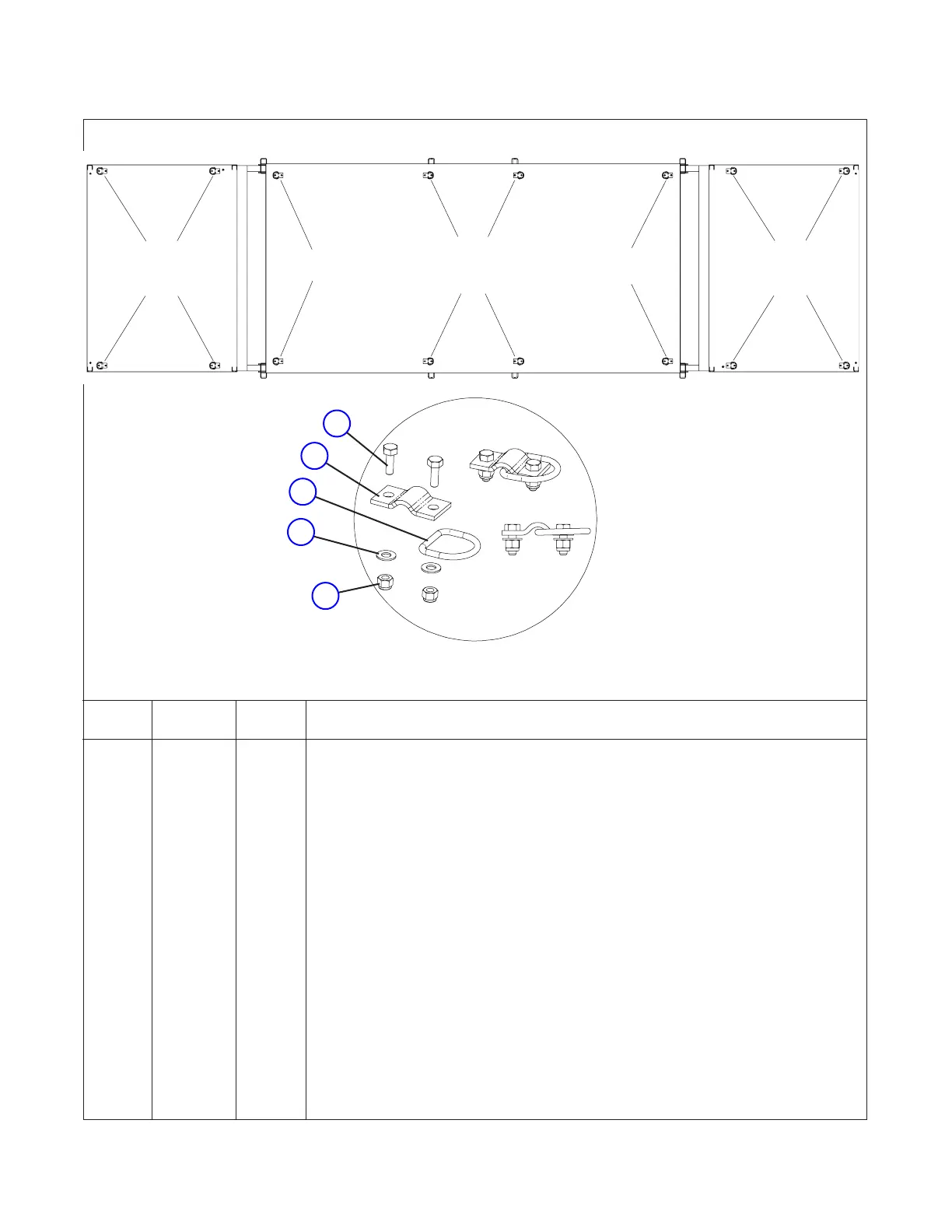

Figure 6.7-8. Safety D-ring Assembly
A 125584 - SAFETY D-RING KIT
1 103473 2 •BOLT,HexHead3/8”-16x1”Gr.5
2 113122 1 •BRACKET,SafetyRing
3 114989 1 •D-RING,Safety
4 103472 2 •WASHER,Flat3/8”
5 104606 2 •NUT,HexNylonLock3/8”-16Gr.5
2
1
3
4
5
Platform
Optional Location For
Safety D-Rings
Extension Deck
Optional Location For
Safety D-Rings
Extension Deck
Optional Location For
Safety D-Rings
Machines Without
Extension Platform
Machines Without
Extension Platform
Platform
Optional Location For
Safety D-Rings
Extension Deck
Optional Location For
Safety D-Rings
Extension Deck
Optional Location For
Safety D-Rings
acines ito t
Extension Platform
acines ito t
Extension Platform
