SECTION 3, Page 12 SJ-800 Series E Battery Powered
119153
Index
No.
Skyjack
Part No.
Description Qty.
M1115AA_2

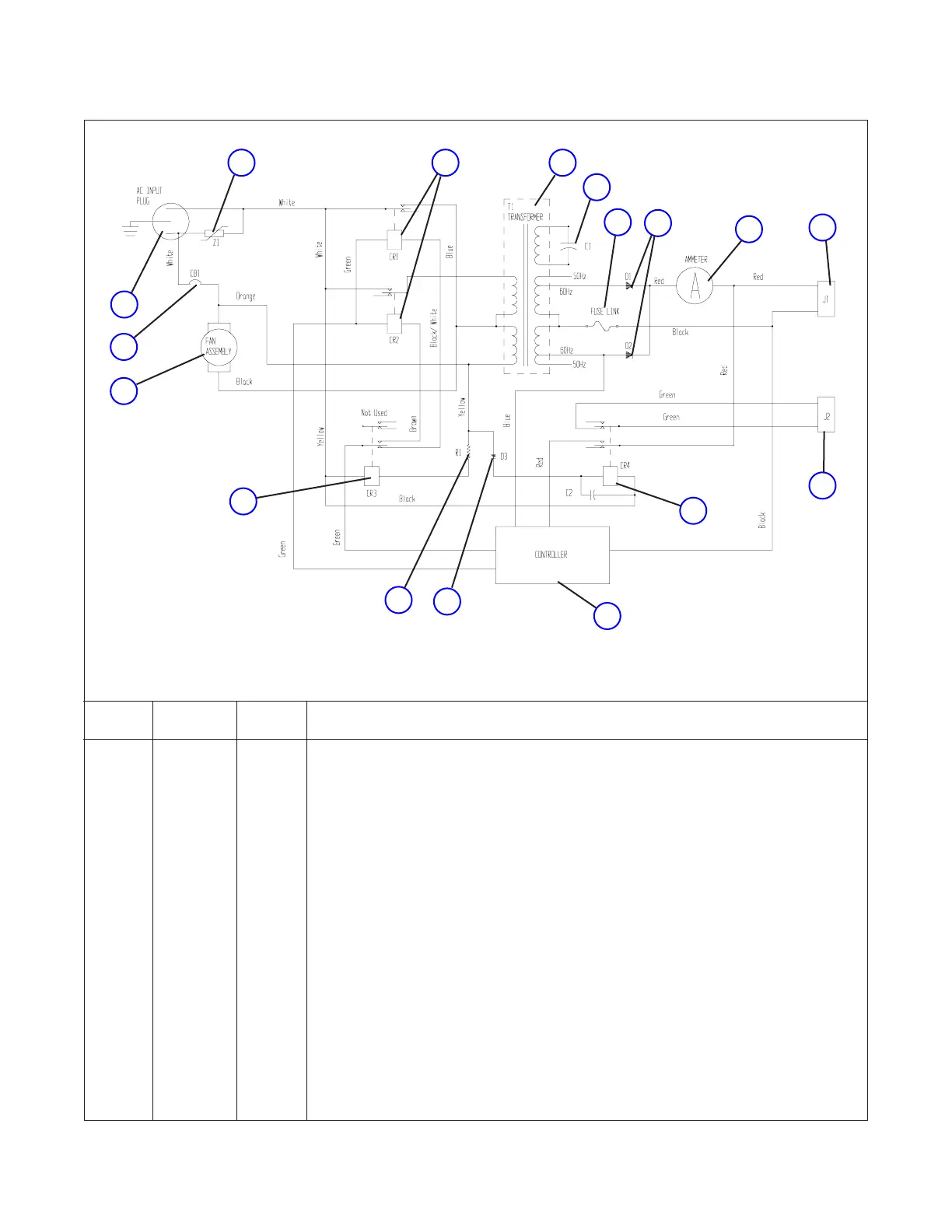

Figure 3.3-2. Battery Charger Schematic - Bycan #4825U
16
15
14
13
12
11
10
9
8
7
6
5
21
4
3
12
A 122367 - CHARGER ASSEMBLY, Battery (2440U, 50/60 Hz)
1 121570 1 VARISTOR
2 121564 1 TRANSFORMER
3 121536 1 CAPACITOR
4 121569 1 RESISTOR 10K OHM, 3W
5 121538 2 RECTIFIER
6 129258 1 DIODE
7 121540 1 FUSE, LINK
8 121541 1 SOCKET, AC Cord
9 121542 2 RELAY, 24V DC
10 121543 1 AMMETER, 50A DC
11 121565 1 CONTROLLER ASSEMBLY
12 121545 2 RELAY, 240 V
13 121546 1 CIRCUIT BREAKER, AC
14 121566 1 FAN, Cooling
15 121567 1 CORD, DC Battery
16 115391 1 PLUG, Charger cutout
To Next Page
