SECTION 3, Page 23SJ-800 Series E Battery Powered
119153

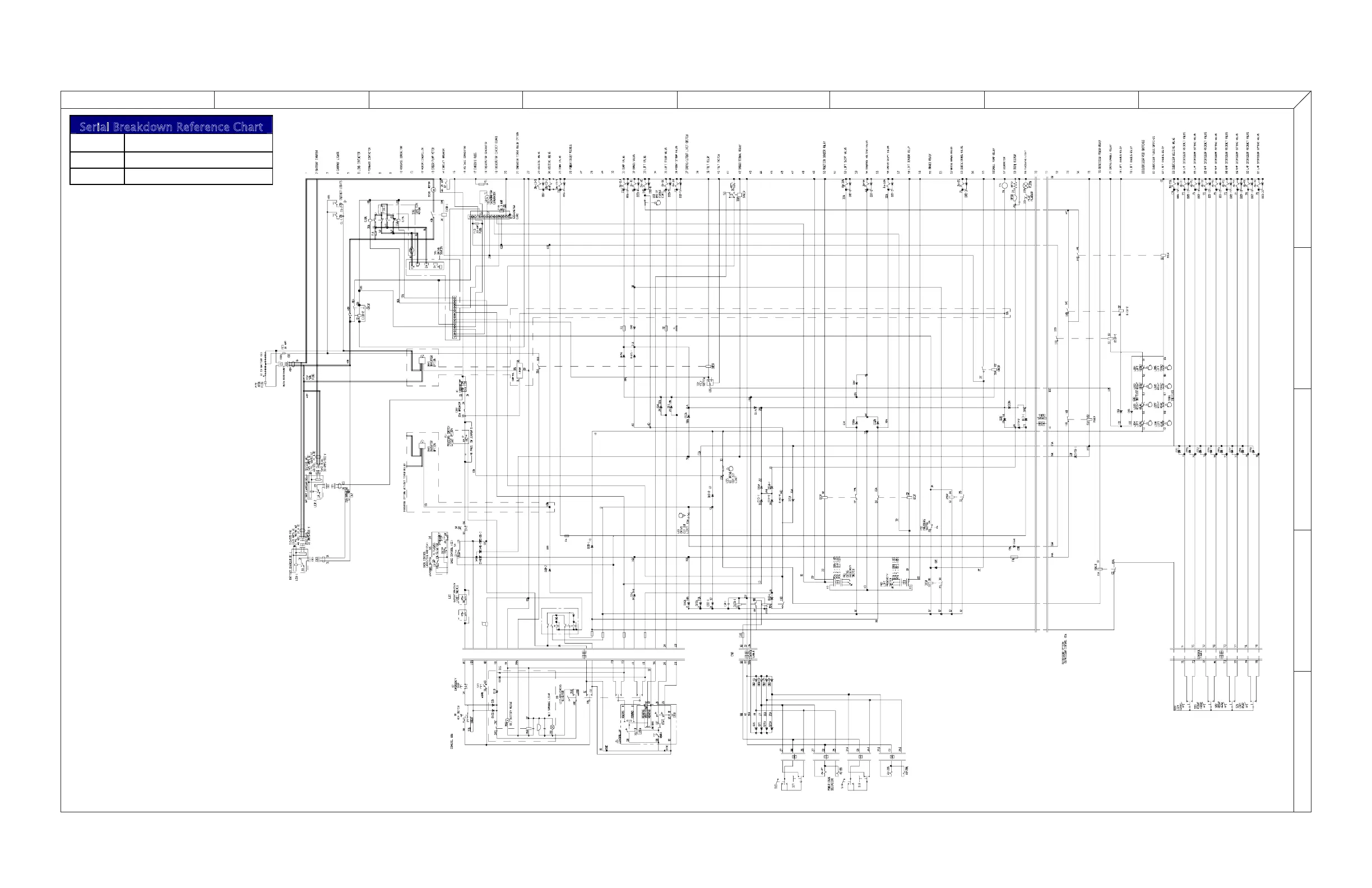

Figure 3.6-1b. Electrical Schematic (ANSI, CSA & CE) (Shown With All Options)
(Refer to Serial No. Breakdown Chart)
Refer to following page(s) to locate
serial no. and respective diagram.
Figure 3.6-1a.
M50030AC-CD
60523AA
Serial Breakdown Reference Chart
Model Serial Number
8831E 37315 & Above
8841E 42702 & Above
To Next Page
