SECTION 5, Page 12 SJ-800 Series E Battery Powered
119153

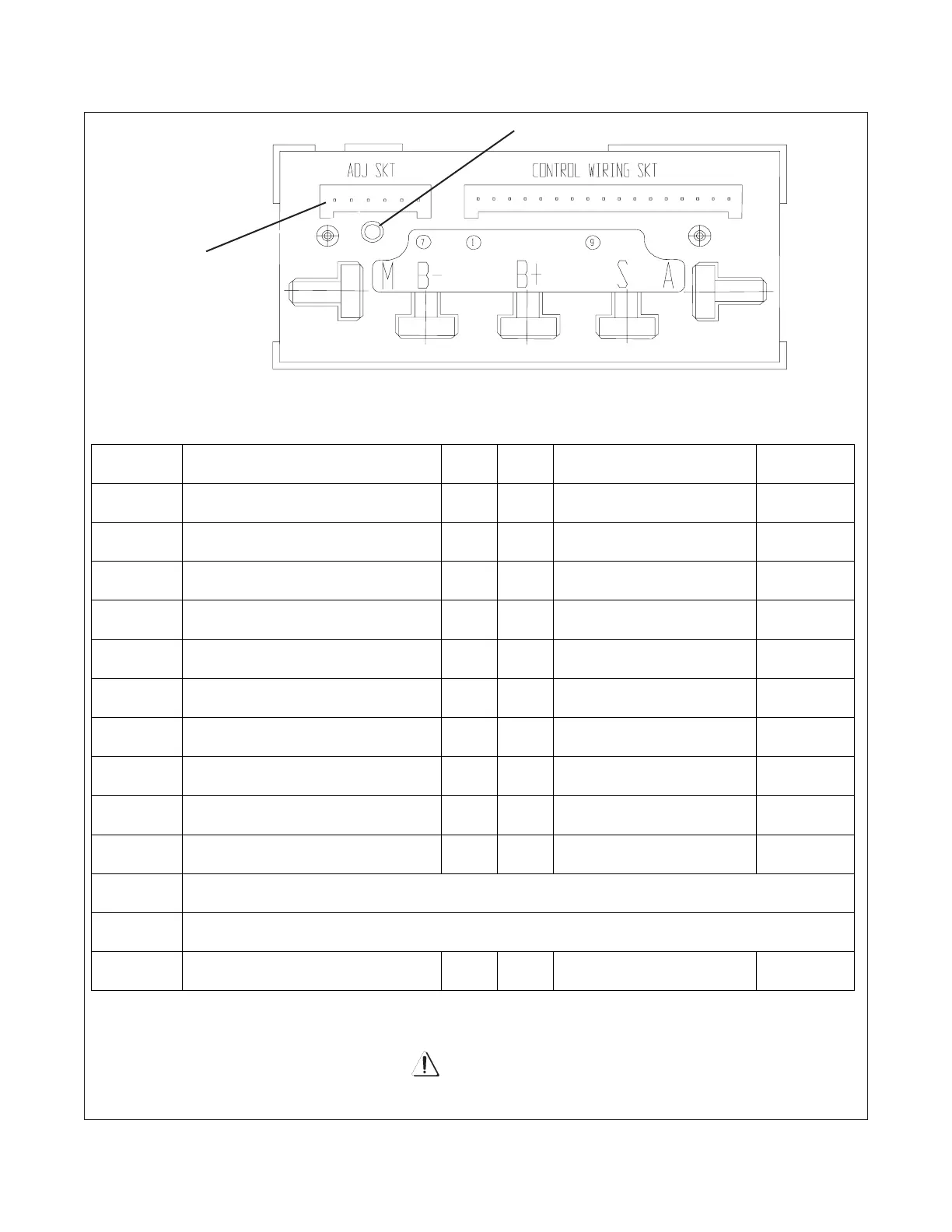

Table 5-4A. Sevcontrol Adjustable Parameters (Software Revision .07)
Figure 5-6. Traction Controller
Diagnostic LED
Controller
Adjustment
Socket
Sevcontroller Adjustment And Diagnostics (Continued)
Before making any adjustments, you must determine the revision of your software. When the calibrator is
plugged in, turn the power on and push and hold down the “-” button for 5 seconds.
WARNING
NOTE: Skyjack does NOT recommend exceeding the default settings.
SEQ. NO. PARAMETER MIN. MAX. UNITS DEFAULT
1
IMAX
Maximum Controller Current
50 600 Amps 400
2
ACCEL
Acceleration Delay
1 3 Seconds 1
3
DECEL
Deceleration Delay
0.1 3 Seconds 0.1
4
CREEP
Maximum Controller Current
0 10 % of Max. Speed 2
5
MAX
Maximum Allowed Speed
5 100 % of Max. Possible Speed 80
6
ELEVA
Elevated Cutback Speed
5 25 % of Max. Speed 15
7
TILT
Tilted Cutback Speed
5 75 % of Max. Speed 50
8
CONSTANT SPEED CONTROL
Proportional Gain (Do Not Adjust)
0 150 Counts 30
9
CONSTANT SPEED CONTROL
Integral Gain (Do Not Adjust)
1 100 Counts 20
10
BATTERY
Low Battery Cut-out
25 40 Volts 25
11 Not Used
12 Not Used
13
BRAKE
Brake Personality Timer
0 3 Seconds 0.5
60285AA
