SECTION 6, Page 14 SJ-800 Series E Battery Powered
119153

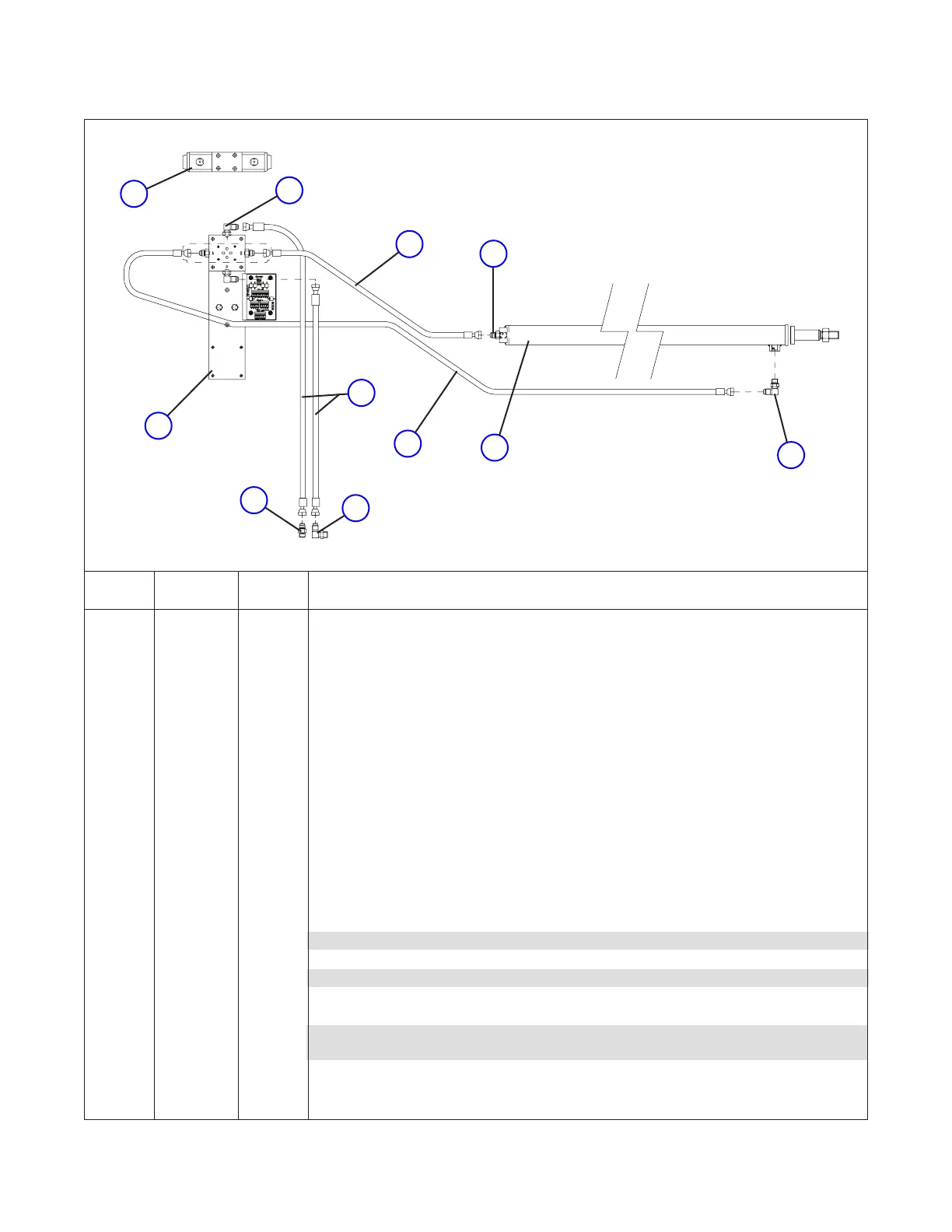

Figure 6.1-4. Hydraulic Hose Connections - Powered Extension Platform
(Machines With Front Extension Platform)
M1046AB
1 (Ref.) 1 CYLINDER ASSEMBLY, Powered extension platform
- (For Components, Refer to Figures 6.1-6)
2 107382 1 BLOCK, Valve manifold
3 103614 1 VALVE ASS’Y, “Vickers” (Early models - replace with Hytos below)
  107439 2 •COIL,24VoltSpoolValve
  103920 AR •BOLT,Sockethead#10-24x2”grade5
128798 1 VALVE ASS’Y, “Hytos” (Later models & Vickers replacement)
  128317 1 •VALVE,Directionalspool
  128320 2 ••COIL,24VoltSpoolValve
  103920 AR •BOLT,Sockethead#10-24x2”grade5
  104345 AR •CONNECTOR,Gray
  104409 AR •CONNECTOR,Black
4 103069 3 FITTING, Connector #6orb-#6
5 114578 3 FITTING, Elbow 90° #6orb-#6
6 104134 1 HOSE ASSEMBLY, Cylinder retract 93” lg
7 106516 1 HOSE ASSEMBLY, Cylinder extend 27” lg.
8 124355 2 HOSE ASSEMBLY, Powered Extension Supply and Return (Model 8831)
Use Part #123038 for Machines with Serial #37120 and Below.
124354 2 HOSE ASSEMBLY, Powered Extension Supply and Return (Model 8841)
Use Part #123675 for Machines with Serial #42302 and Below.
9 103070 1 FITTING, O-Ring #6-#8 (in manifold at base)
10 102665 1 FITTING, O-Ring Elbow #8-#6 (in manifold at base)
Use Part #103070 for Machines with Serial #37120 (8831)
or #42302 (8841) and below.
9
8
7
6
5
4
3
2
1
10
5
Index
No.
Skyjack
Part No.
Description Qty.
