22
SJ12, SJ16213721AAA
Section 3 – Familiarization Overview of the MEWP
3.1 Overview of the MEWP
FAMILIARIZATION
Manual
storage box
Hourmeter
Platform control
console
Diagnostic switch/circuit
breaker (inside the hydraulic/
electrical compartment)
Brake hand pump
Brake auto-reset valve plunger
Main power disconnect switch
Base
control
console
Emergency-lowering valve

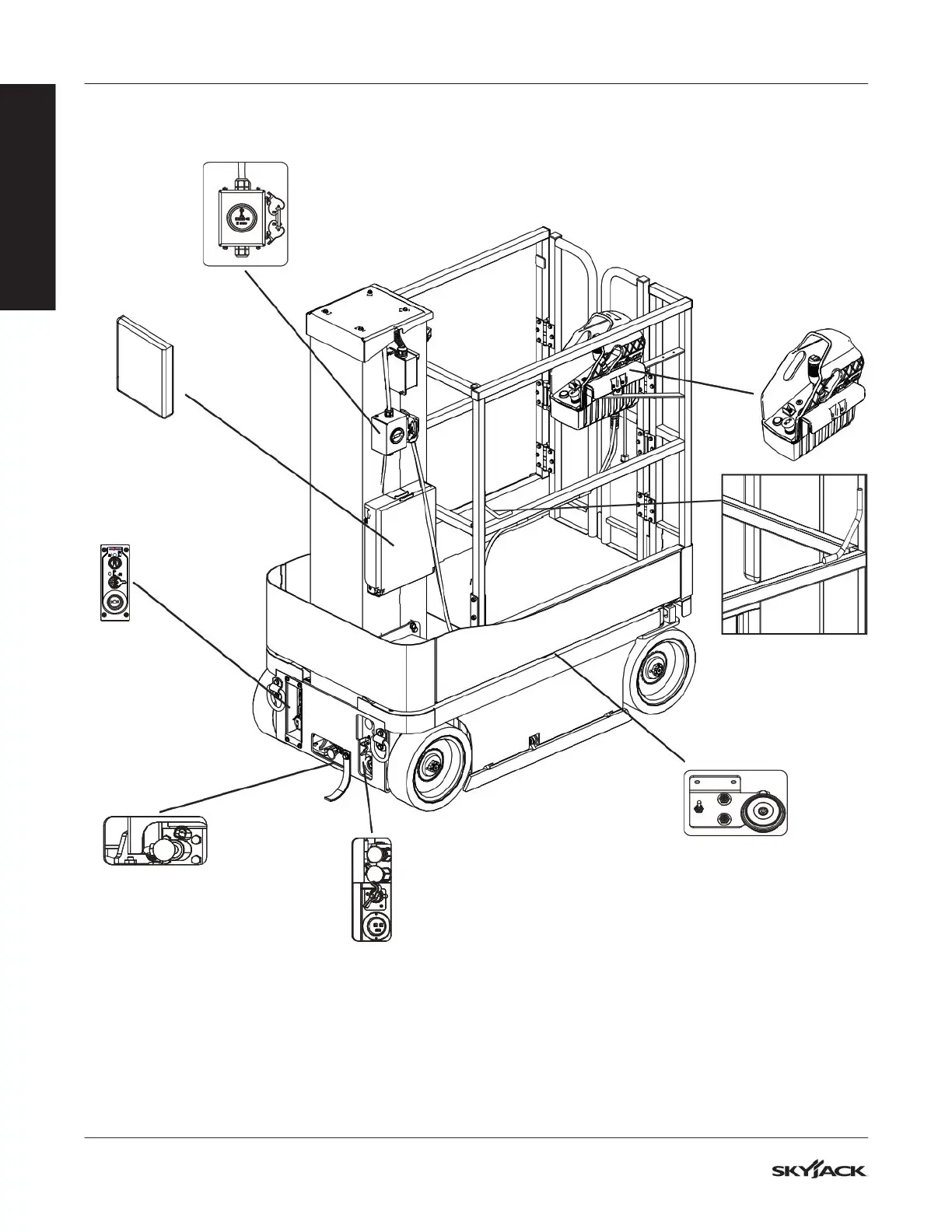

Figure 02 MEWP overview
Fall-protection
anchorages
