Section 3 – Familiarization Optional equipment
3.6 Optional equipment
CAUTION
Skyjack approved modications and attachments
can change the MEWP specications. Refer to the
applicable instructions and labels.
IMPORTANT
Refer to the labels of the optional equipment for
the actual weight. Include this weight to calculate
the total load on the platform. Include personnel
and other materials in the total load.
The weight of the attached parts, panels,
occupants, and tools put together must not be
more than the rated platform capacity.

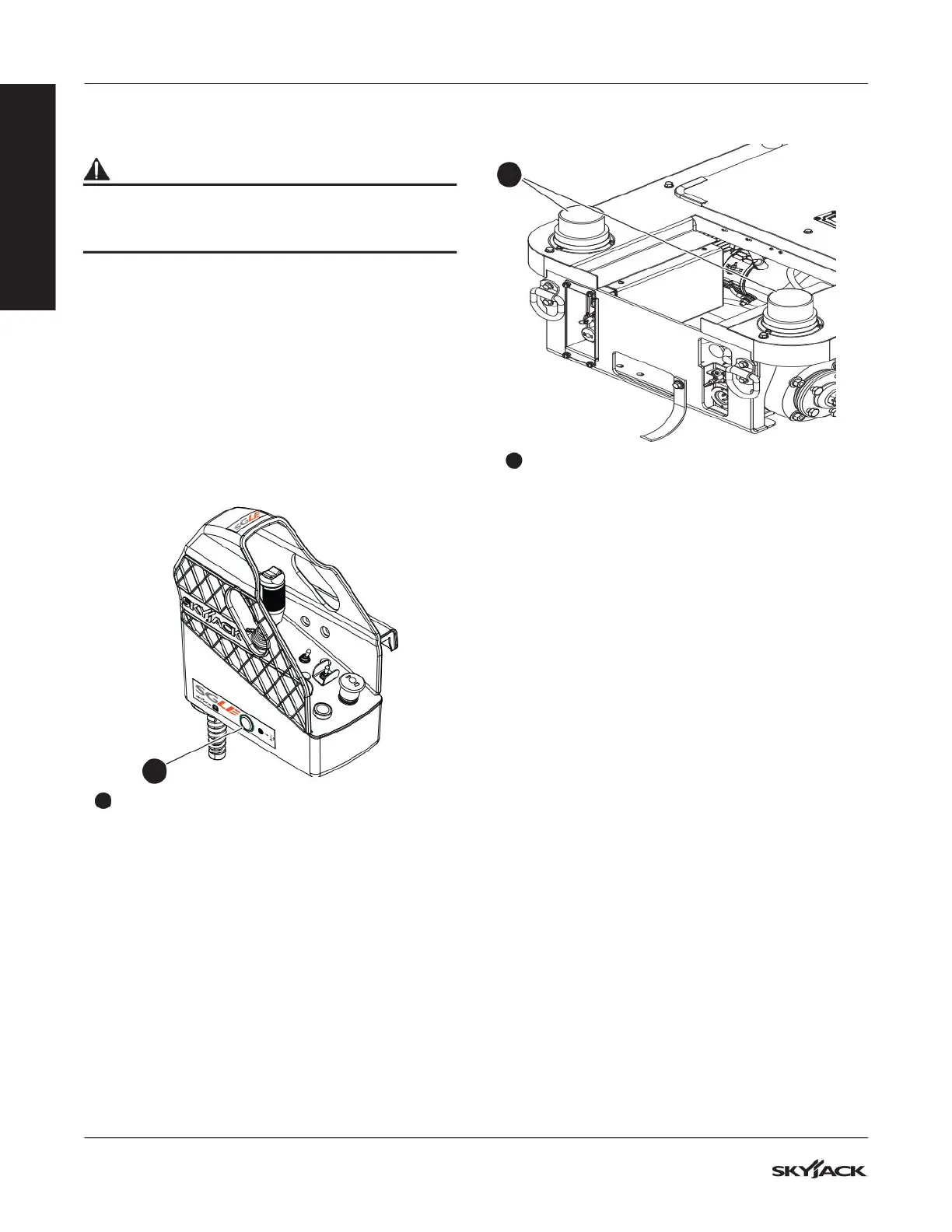

3.6-1 Secondary Guarding Lift Enable
(SGLE) push-button
T
M
1
1
SGLE: This push-button energizes the lift
function. Hold the button down together with the
function-enable switch to enable the raising of
the platform with the lift function.
NOTE
The SGLE does not have an effect on these functions:
lower, drive, steer or emergency lowering.
3.6-2 Flashing Light
1
Flashing light : The ashing light is attached to
the base and ashes when a control function is
enabled.
FAMILIARIZATION
1

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
