Skyjack SJ16 Operation Manual

66
SJ12, SJ16213721AAA

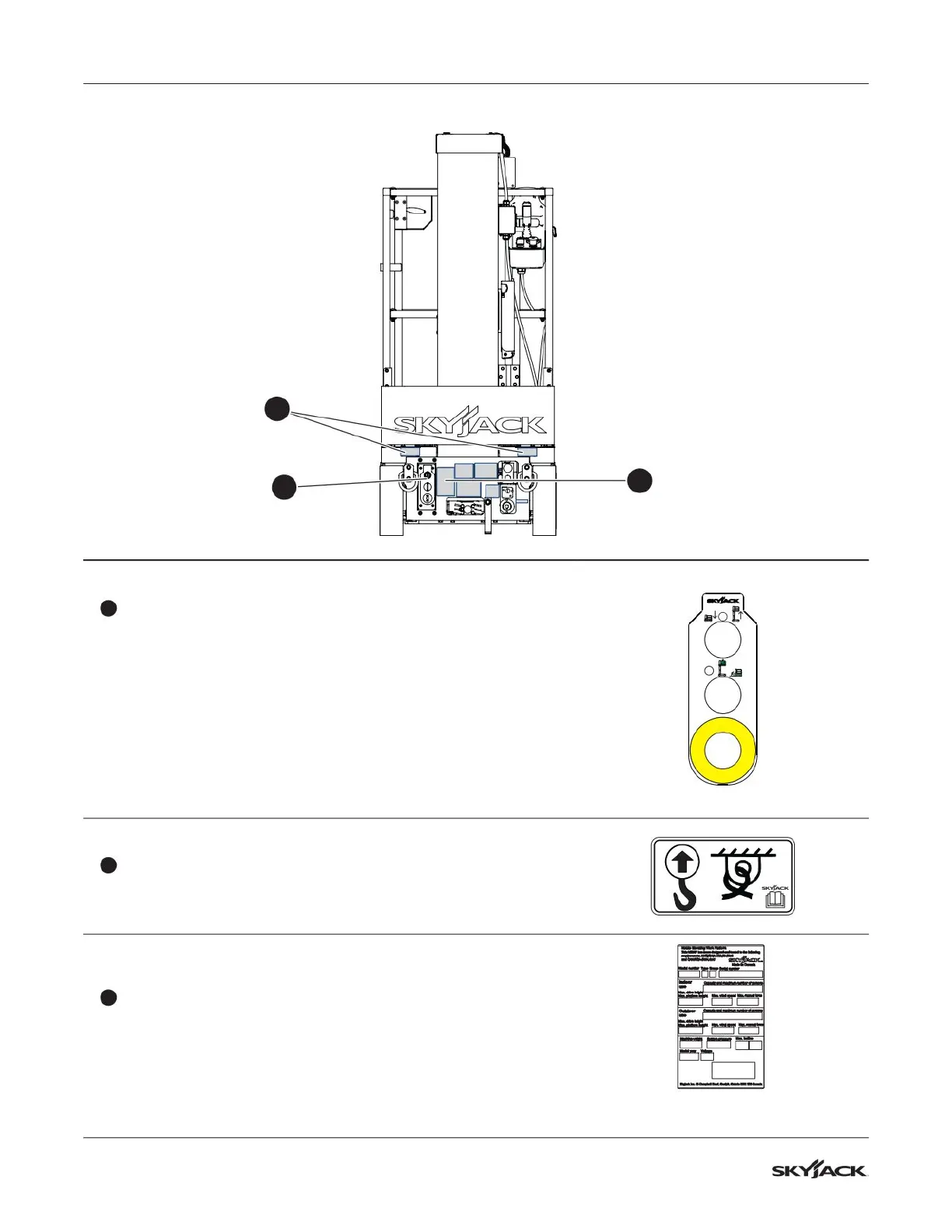

Section 8 – Labels SJ12 and SJ16 models
Description Label pictorial
1
Base controls
▪
Turn and hold the lower/neutral/raise switch to lower or
raise the platform.
▪
Select the off position to turn off power to the MEWP,
the base position to energize the base controls, or the
platform position to energize the platform controls.
▪
Push the emergency-stop button to disconnect power
to the control circuit. Pull the emergency-stop button to
connect the power again.
2
Lift and tie-down points
Only use these points to lift or tie-down the MEWP.
TM
3
Serial plate*
MEWP identication and specications.
*The serial plate information changes with different MEWPs.
8.1 SJ12 and SJ16 models
8.1-1 Rear view
1
2
3

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
