Section 4 – Inspections Before Operation Function tests
4.3-17 Do a test of the SGLE switch
(optional equipment)
WARNING
Look for overhead obstructions or other possible
hazards around the MEWP when you raise the
platform. Do not lower the platform unless the area
below is clear of personnel and obstructions. If
you do not obey, there is a risk of death or serious
injury.

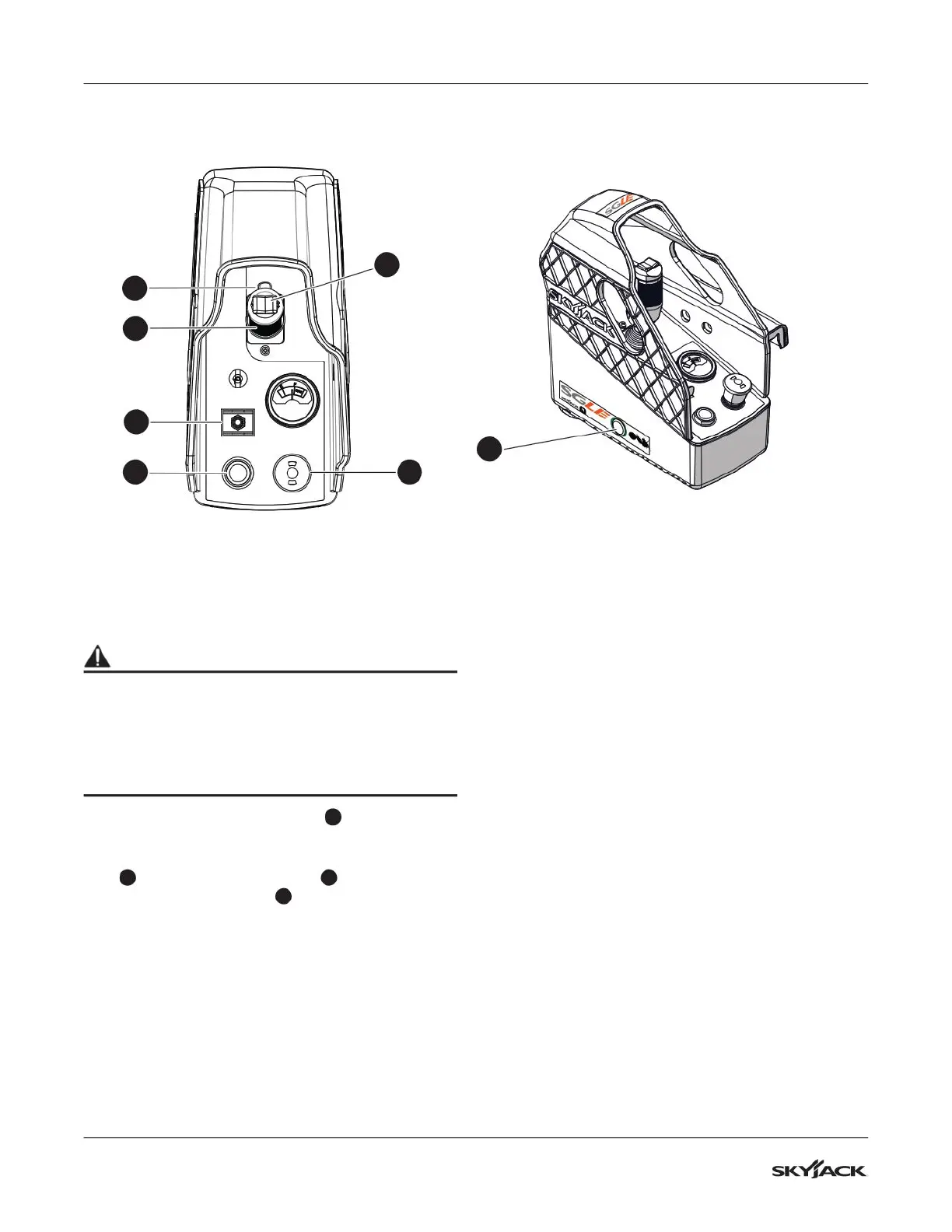

1. Move the lift/off/drive switch
6
to the lift
position.
2. Do not squeeze the function-enable switch
1
or push the SGLE button
7
. Push and pull
the controller handle
2
to raise and lower the
platform.
▪
Result: The platform does not rise or lower.
3. Push and hold the SGLE button only. Do not
squeeze the function-enable switch. Push and
pull the controller handle to raise or lower the
platform.
▪
Result: The platform does not rise or lower
4. Push and hold the SGLE button. Squeeze the
function-enable switch. Push and pull the
controller handle to raise or lower the platform.
▪
Result: The platform rises and lowers.
5. Squeeze the function-enable switch only. Do
not push the SGLE button. Push and pull the
controller handle to raise or lower the platform.
▪
Result: The platform lowers, but does not rise.
4.3-18 Do a test of the ashing light
(optional equipment)
1. Make sure the path of intended motion is clear.
2. Operate the drive or lift function.
▪
Result: The light ashes.
3. Stop all MEWP motion.
▪
Result: The light does not ash.
T
M
7
5 4
3
1
6
2

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
