General components Section 3 – Familiarization

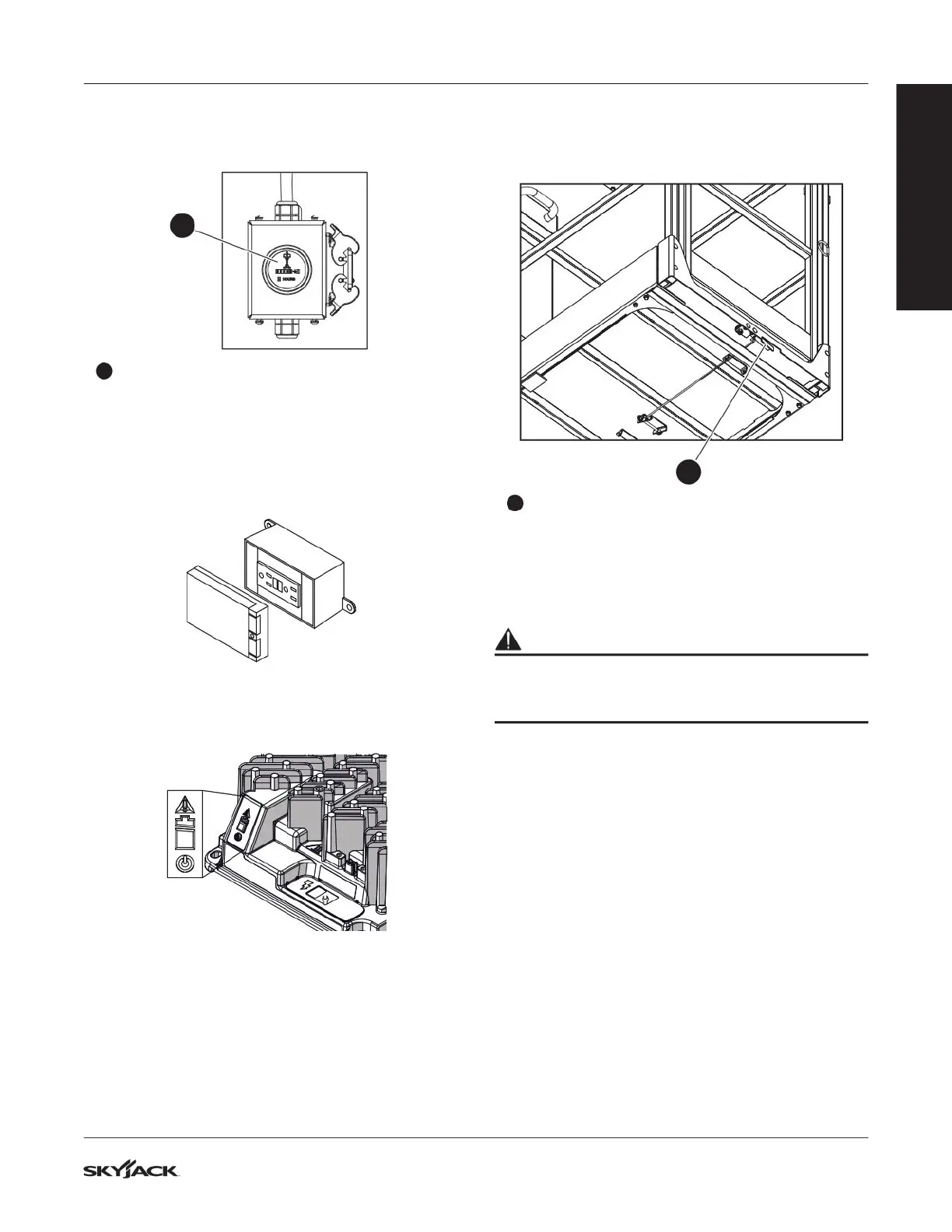

3.5-2 Hourmeter
Refer to Figure 02 for the location of the hourmeter.
1
1
Hourmeter: The hourmeter records total MEWP
operation time.
3.5-3 AC power socket on the platform
The AC power socket is a source of AC power on the
platform when the plug at the base is connected to a
generator or an external power supply.
3.5-4 Battery charger
The charger is at the front of the base. Refer to
Section 6.6 for battery charging instructions.
3.5-5 Motion alarm
The alarm makes a sound when a control function
operates. On some MEWPs, an amber ashing light
goes with this alarm.
3.5-6 Platform maintenance lock
The platform has a locking mechanism located below
the platform.
1
1
Platform maintenance lock: When it is
engaged, you can move the platform to the
maintenance position and open the hydraulic/
electrical compartment. When the platform is in
the maintenance position, all MEWP functions
are disabled.
WARNING
The MEWP can move when you engage the
diagnostic switch. If you use it incorrectly, death,
serious injury, and/or MEWP damage can occur.
